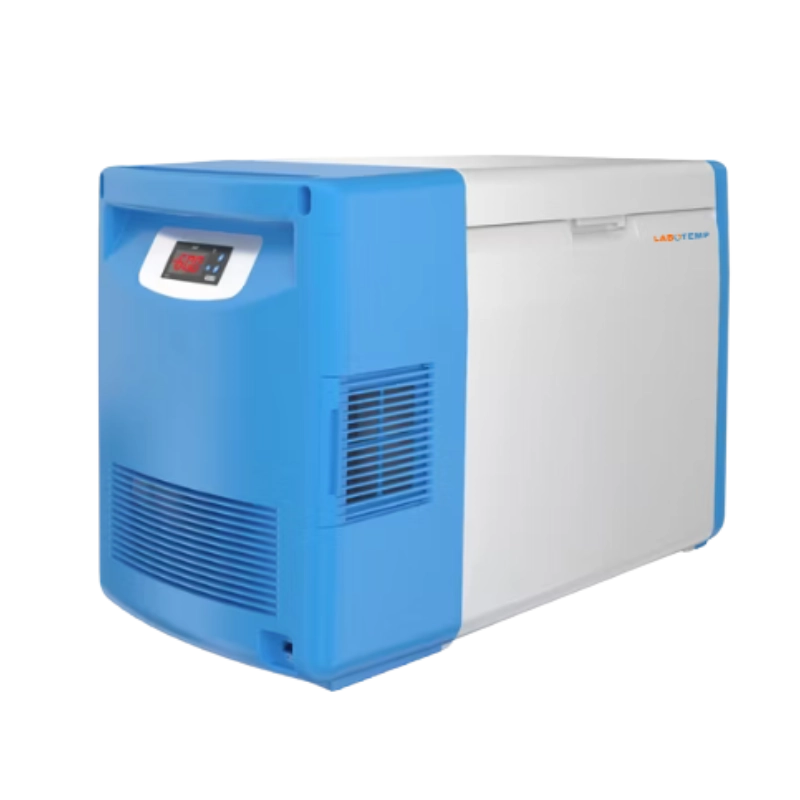

Labotemp portable ultra low temperature freezer ULF-01 is a compact and reliable solution designed for mobile laboratories, clinics, research teams, and field operations requiring secure −60°C to −80°C storage. This small ultra low freezer and benchtop ultra low freezer is ideal for vaccine transport, medical sample preservation, and emergency cold-chain support. With DC 12V/24V compatibility, lightweight design, and intelligent alarm system, the ULF-01 functions as a dependable small medical freezer and portable ultra cold freezer for environments where stable ultra low temperature control is essential.
Engineered for efficient performance, the ULF-01 features a high-quality SECOP compressor, EBM condenser fan, and fluorine-free eco-friendly refrigerant for uniform cooling. Its electronic temperature control, digital data display, and PTC probe ensure precise monitoring across the ultra low freezer temperature range. The 20 L capacity, 100 mm insulation layer, stainless steel 304 interior, durable PE exterior, and top-open door design provide hygiene, durability, and ease of use. As a compact ultra low laboratory freezer, it supports reliable low temp freezer operation in limited spaces and mobile settings.
Why Choose Labotemp ULF-01?
✓ Portable design: DC12/24V operation and compact size for field and transport use.
✓ Precision cooling: Maintains −60°C to −80°C with stable electronic control.
✓ Secure storage: Audio-visual alarms, stainless interior, and thick insulation for sample safety.
|
Model : ULF-01 Model |
ULF-01 |
|
Capacity : 20L Capacity |
20L |
|
Internal temperature : -60°C to -80°C, Adjustable Internal temperature |
-60°C to -80°C, Adjustable |
|
Voltage : DC 12V / 24V Voltage |
DC 12V / 24V |
|
Compressor : SECOP Compressor |
SECOP |
|
Type : Box Type Type |
Box Type |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Input power : 270W Input power |
270W |
|
Power consumption : 2.2 kWh Power consumption |
2.2 kWh |
|
Climate type : N type Climate type |
N type |
|
Refrigerant : Fluorine Free Environmental Protection Refrigerant Refrigerant |
Fluorine Free Environmental Protection Refrigerant |
|
Refrigeration System : Single Compressor Refrigeration System Refrigeration System |
Single Compressor Refrigeration System |
|
Temperature control : Electronic Temperature Control Temperature control |
Electronic Temperature Control |
|
Temperature display : Digital Data Display Temperature display |
Digital Data Display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : EBM fan Condenser fans |
EBM fan |
|
Exterior Material : PE Exterior Material |
PE |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Door type : Top Open Door type |
Top Open |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
External dimensions : 780x410x515mm External dimensions |
780x410x515mm |
|
Internal dimensions : 327x220x305mm Internal dimensions |
327x220x305mm |
|
Package size : 775 x 502 x 672mm Package size |
775 x 502 x 672mm |
|
Gross weight : 45kg Gross weight |
45kg |
|
Net weight : 21 kg Net weight |
21 kg |
