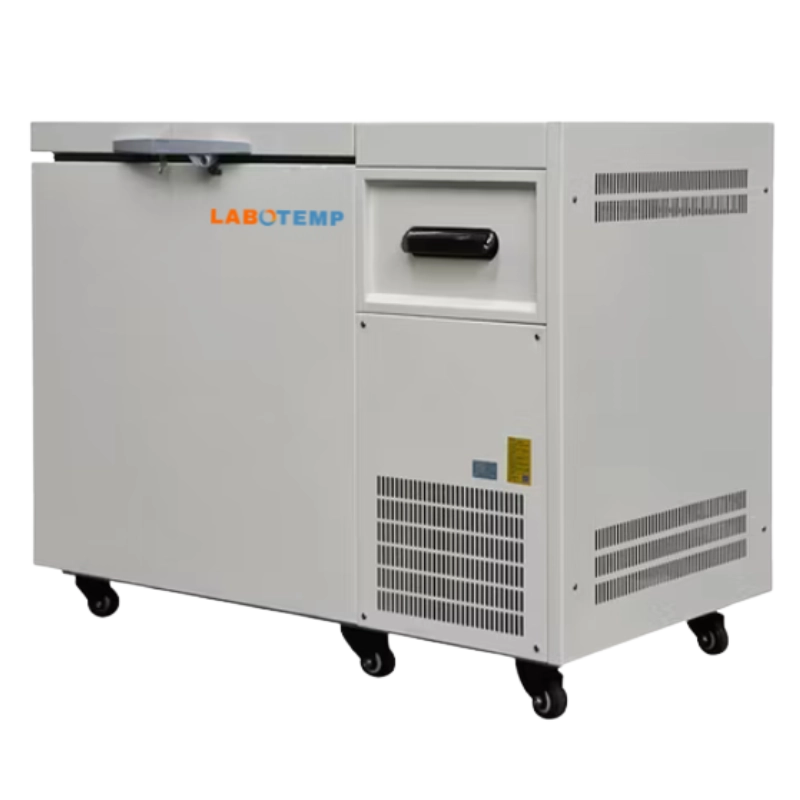

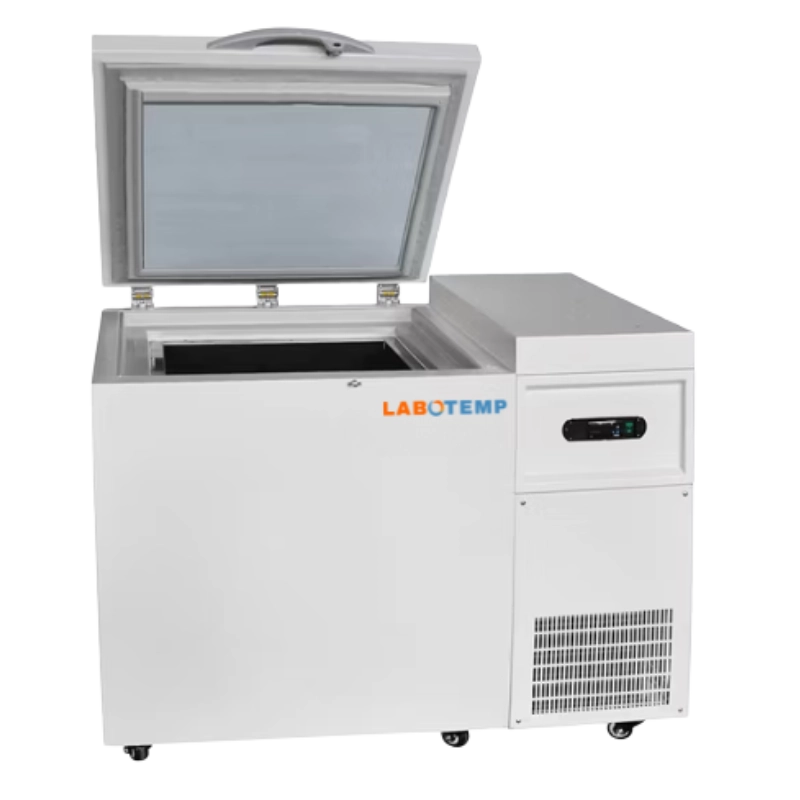

Labotemp Ultra Low Chest Temperature Freezer ULF-09, developed by a trusted ULT freezer manufacturer, is a precision-built solution for secure, long-term storage of vaccines, biological samples, and sensitive reagents. This horizontal ultra low chest freezer offers a practical 118 L capacity with an adjustable ultra low freezer temperature range of −60°C to −86°C and precise 0.1°C accuracy through its advanced microprocessor control and LED display.
As a trusted ultra low lab freezer or ultra low deep freezer, the ULF-09 pairs comprehensive safety with audible/visual alarms for temperature, power and system faults with professional-grade construction ideal for hospitals, biobanks and pharma labs. Compact yet powerful, this low temperature freezer and ultra cold freezer solution balances energy efficiency, and regulatory reliability making it a dependable choice when precise −80°C class preservation is required.
Why choose Labotemp Ultra Low Temperature Freezer ULF-09?
✓ Precise control: adjustable −60°C to −86°C with 0.1°C accuracy.
✓ Durable design: 150 mm insulation, 304 SS interior, copper condenser.
✓ Lab-ready safety: microprocessor monitoring, KELD thermostat, audio-visual alarms.
|
Model : ULF-09 Model |
ULF-09 |
|
Capacity : 118L Capacity |
118L |
|
Temperature Range : -60~-86ºC, adjustable Temperature Range |
-60~-86ºC, adjustable |
|
Compressor : Secop Compressor |
Secop |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
Input power : 400w Input power |
400w |
|
Power consumption : 7.3kw.h/24h Power consumption |
7.3kw.h/24h |
|
Type : Horizontal type Type |
Horizontal type |
|
External Size : 1270*795*990mm External Size |
1270*795*990mm |
|
Internal Size : 540*400*560mm Internal Size |
540*400*560mm |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
ondenser & Evaporator : Made of copper ondenser & Evaporator |
Made of copper |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
Door : Lockable door Door |
Lockable door |
|
Casters : 6 Casters |
6 |
|
Thermostat brand : KELD Thermostat brand |
KELD |
|
Insulation thickness : 150mm Insulation thickness |
150mm |
|
Balance Port : 1, φ18mm Balance Port |
1, φ18mm |
|
Package size : 1340*865*1160mm Package size |
1340*865*1160mm |
|
Net Weight : 126 kg Net Weight |
126 kg |
|
Gross Weight : 165 kg Gross Weight |
165 kg |
