Labotemp Ultra Low Temperature Freezer ULF-19, from a trusted ULT freezer manufacturer, is a 708 L vertical ultra low freezer engineered for reliable −40°C to −86°C storage in hospitals, biobanks, and research laboratories.This ULT freezer pairs dual Secop compressors with microprocessor control and an LED display to deliver 0.1°C accuracy and a stable ultra low freezer temperature range, preserving vaccines, plasma and enzymes with multi-level alarms.
Built for continuous operation, the ULF-19 uses direct refrigeration, HFC refrigerant, copper condenser and evaporator, unibody 120 mm rigid-foam insulation and a 304 stainless interior for hygiene and longevity. With ~920 W input (~14.7 kWh/24h), lockable main door, four inner doors, three stainless shelves, balance port and four casters, it balances capacity, mobility and serviceability for lab workflows.
Why Choose Labotemp ULT Freezer ULF-19?
✓ Proven stability: Dual compressors and microprocessor control keep −40°C to −86°C steady.
✓ Lab-grade reliability: Copper heat exchange, rigid insulation and stainless interior for long service life.
✓ Sample protection: Multi-level alarms, lockable access and organized inner-door layout for secure storage.
|
Model : ULF-19 Model |
ULF-19 |
|
Capacity : 708L Capacity |
708L |
|
Temperature Range : -40~ -86ºC Temperature Range |
-40~ -86ºC |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
Compressor : Secop (2 sets) Compressor |
Secop (2 sets) |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
Consumption : 920W Consumption |
920W |
|
Power consumption : 14.7kw.h/24h Power consumption |
14.7kw.h/24h |
|
Type : Vertical Type |
Vertical |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
Condenser & Evaporator : Made of copper Condenser & Evaporator |
Made of copper |
|
Structure : Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) Structure |
Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
External Size (W*D*H)mm : 1090*1010*1860mm External Size (W*D*H)mm |
1090*1010*1860mm |
|

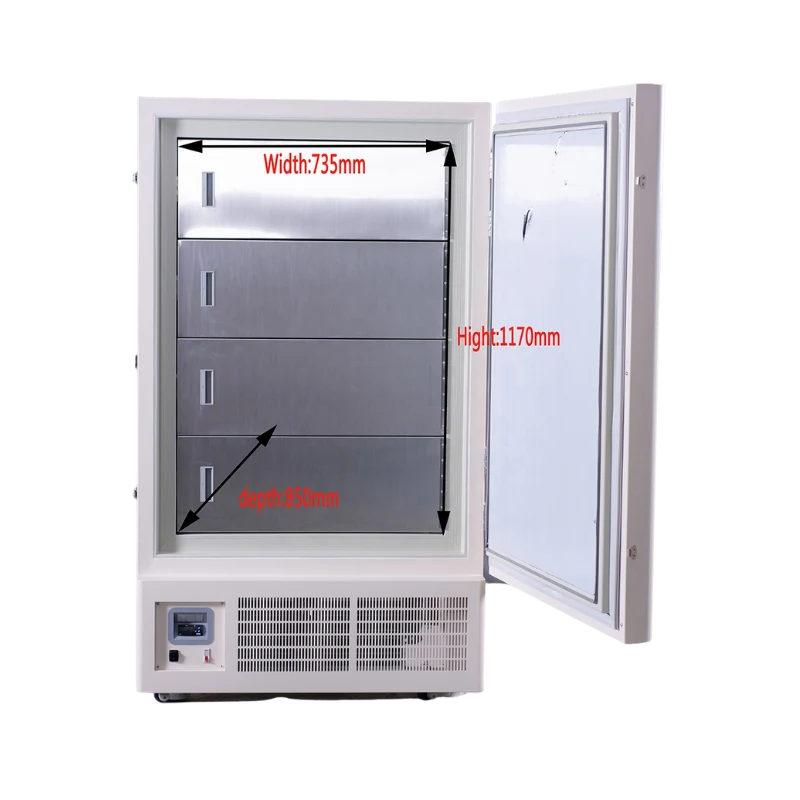

Internal Size (W*D*H)mm : 850*735*1170mm Internal Size (W*D*H)mm |
850*735*1170mm |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Door : Lockable door Door |
Lockable door |
|
Caster : 4 casters Caster |
4 casters |
|
Insulation thickness : 120 mm Insulation thickness |
120 mm |
|
Inner Door : 4 Inner Door |
4 |
|
Shelf : 3 pcs,304 stainless steel Shelf |
3 pcs,304 stainless steel |
|
Balance hole : 1, φ18mm Balance hole |
1, φ18mm |
|
Package size (W*D*H)mm : 1175*1075*2040mm Package size (W*D*H)mm |
1175*1075*2040mm |
|
Net Weight : 285 kg Net Weight |
285 kg |
|
Gross Weight : 355 kg Gross Weight |
355 kg |
