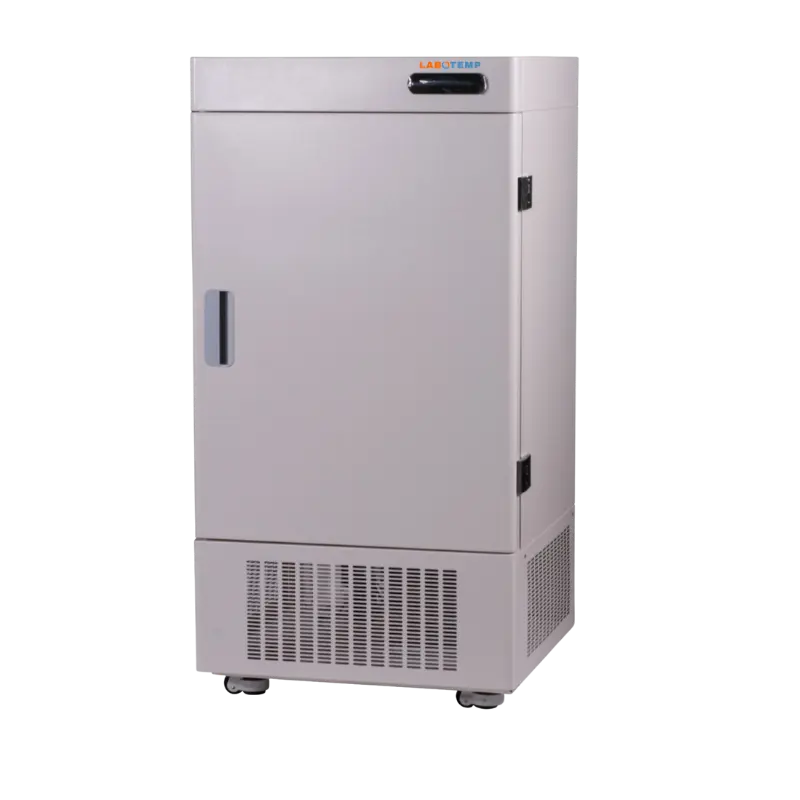

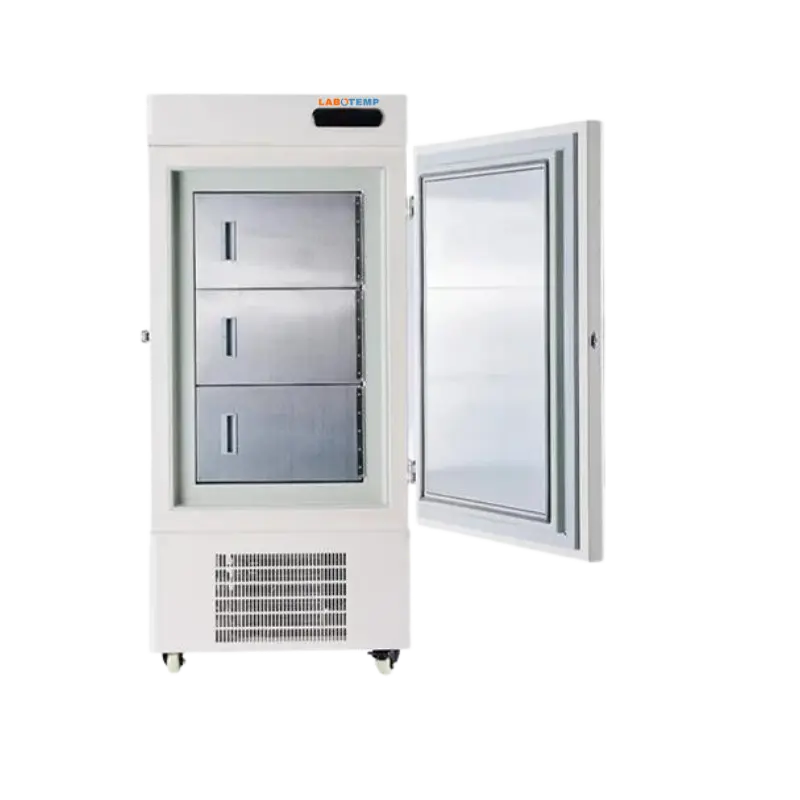

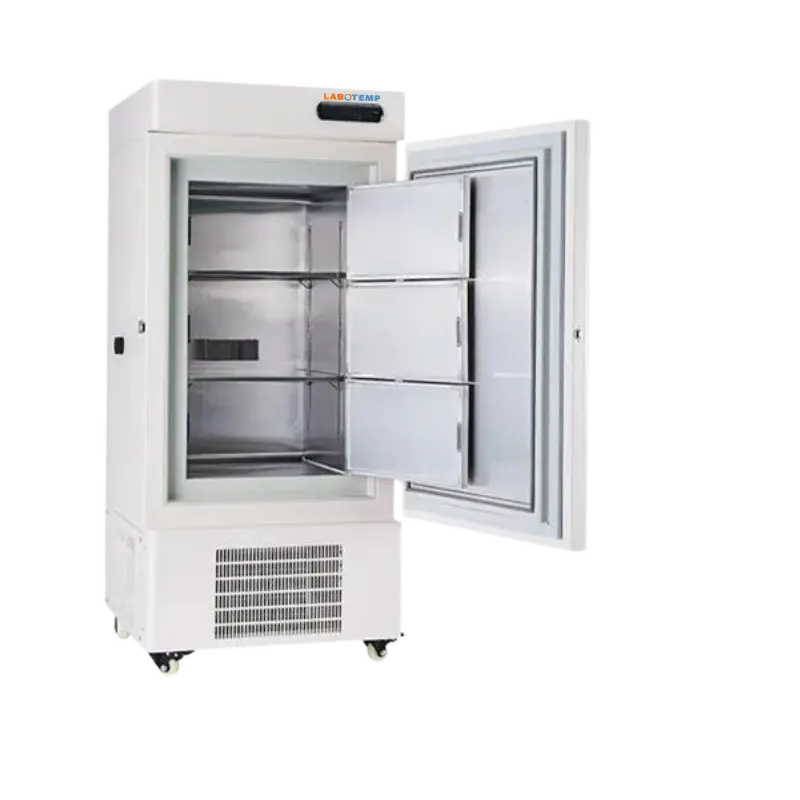

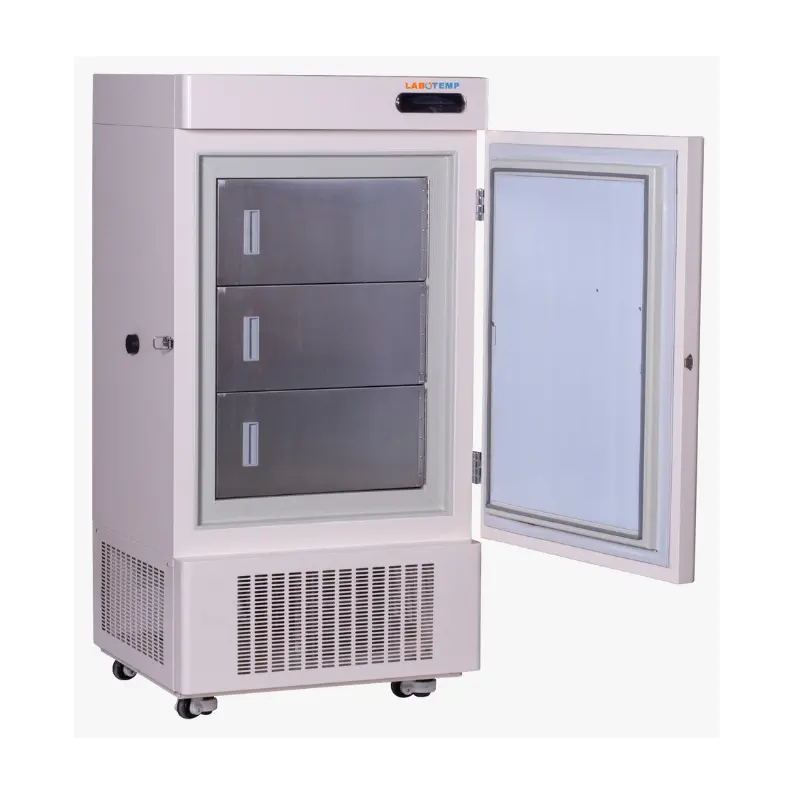

Labotemp Ultra Low Temperature Freezer ULF‑14 is a high‑capacity, vertical ultra low freezer designed for dependable −40°C to −86°C storage in laboratories, hospitals, biobanks, and research centers. With 358 L usable volume, microprocessor control, LED display and 0.1°C accuracy, this upright ultra low freezer maintains the precise ultra low freezer temperature range needed for vaccines, biological samples, enzymes and pharmaceuticals.
Built for long service life and hygiene, the ULF‑14 uses a SECOP compressor, HFC refrigerant and copper condenser for efficient direct refrigeration, paired with thick, rigid polyurethane insulation, stainless interior and anti‑bacterial exterior. The lockable door, balance hole, four casters and audible/visual alarms add security, mobility and safety for busy lab environments. Energy use is optimized at about 510 W input and roughly 9.6 kWh/24h, helping balance performance and operating cost.
Why choose Labotemp ULT Freezer ULF‑14?
✓ Precise control: 0.1°C accuracy with microprocessor monitoring.
✓ Robust build: 150 mm insulation, copper condenser, stainless interior, durable exterior.
✓ Secure operation: multi‑level alarms, lockable door and lab‑grade design for trusted ultra cold freezer use.
|
Model : ULF-14 Model |
ULF-14 |
|
Capacity : 358L Capacity |
358L |
|
Temperature Range : -40~ -86ºC Temperature Range |
-40~ -86ºC |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
Compressor : Secop Compressor |
Secop |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
Consumption : 510w Consumption |
510w |
|
Power consumption : 9.6kw.h/24h Power consumption |
9.6kw.h/24h |
|
Package size : 1890*975*1240mm Package size |
1890*975*1240mm |
|
Type : Vertical Type |
Vertical |
|
External Size : 1810*895*1090mm External Size |
1810*895*1090mm |
|
Internal Size : 1080*500*660mm Internal Size |
1080*500*660mm |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
Condenser & Evaporator : Made of copper Condenser & Evaporator |
Made of copper |
|
Structure : Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) Structure |
Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
Door : Lockable door Door |
Lockable door |
|
Caster : 4 casters Caster |
4 casters |
|
Insulation thickness : 150 mm Insulation thickness |
150 mm |
|
Balance hole : 1, φ18mm Balance hole |
1, φ18mm |
|
Net Weight : 184 kg Net Weight |
184 kg |
|
Packing size : 840x925x1945 mm Packing size |
840x925x1945 mm |
|
Gross Weight : 195kg Gross Weight |
195kg |
