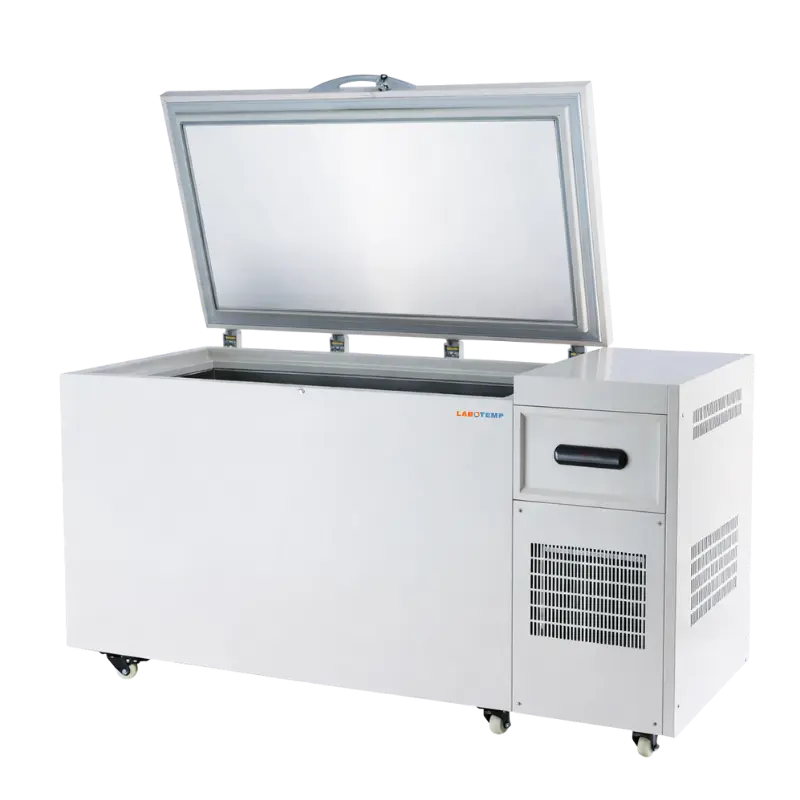

Labotemp Ultra Low Temperature Chest Freezer ULF-24, from a trusted ULT freezer manufacturer, is designed for medical, pharmaceutical, biotechnology, and research laboratories requiring extreme cold storage from −86°C to −105°C. This horizontal ultra low chest freezer ensures stable preservation of vaccines, biological samples, enzymes, and sensitive materials within a controlled ultra low freezer temperature range.
Engineered for reliable daily use, the ULF-24 features a SECOP (Danfoss) compressor, EBM condenser fans, and eco-friendly fluorine-free refrigerant for uniform, energy-efficient cooling. Its 458 L capacity, 150 mm insulation, stainless steel interior, powder-coated exterior, PTC probe, balance hole, and eight casters enhance durability, hygiene, and mobility. With compressor-based refrigeration and electronic monitoring, this ultra cold freezer delivers consistent performance in demanding environments.
Why Choose Labotemp ULT Freezer ULF-24?
✓ Extreme temperature control: Adjustable −86°C to −105°C for advanced cryogenic storage.
✓ Durable construction: Thick insulation, stainless interior, and corrosion-resistant exterior.
✓ Operational safety: Electronic monitoring, data display, and multi-level audible/visual alarms.
|
Model : ULF-24 Model |
ULF-24 |
|
Capacity : 458L Capacity |
458L |
|
Temperature range : -86°C to -105°C, Adjustable Temperature range |
-86°C to -105°C, Adjustable |
|
Compressor : (SECOP)DANFOSS Compressor |
(SECOP)DANFOSS |
|
Voltage : 220V/50Hz Voltage |
220V/50Hz |
|
Type : Horizontal Type |
Horizontal |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input Power : 900W Input Power |
900W |
|
Power consumption : 16.8kw.h/24h Power consumption |
16.8kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Compressor refrigeration system Refrigeration system |
Compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : Data display Temperature display |
Data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : EBM Condenser fans |
EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 150mm Thickness of foaming layer |
150mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 8 Castor |
8 |
|
External dimensions : 2115*895*1095mm External dimensions |
2115*895*1095mm |
|
Internal dimensions : 1380*500*660mm Internal dimensions |
1380*500*660mm |
|
Package size : 2185*965*1260mm Package size |
2185*965*1260mm |
|
Gross weight : 264 kg Gross weight |
264 kg |
|
Net weight : 216 kg Net weight |
216 kg |
