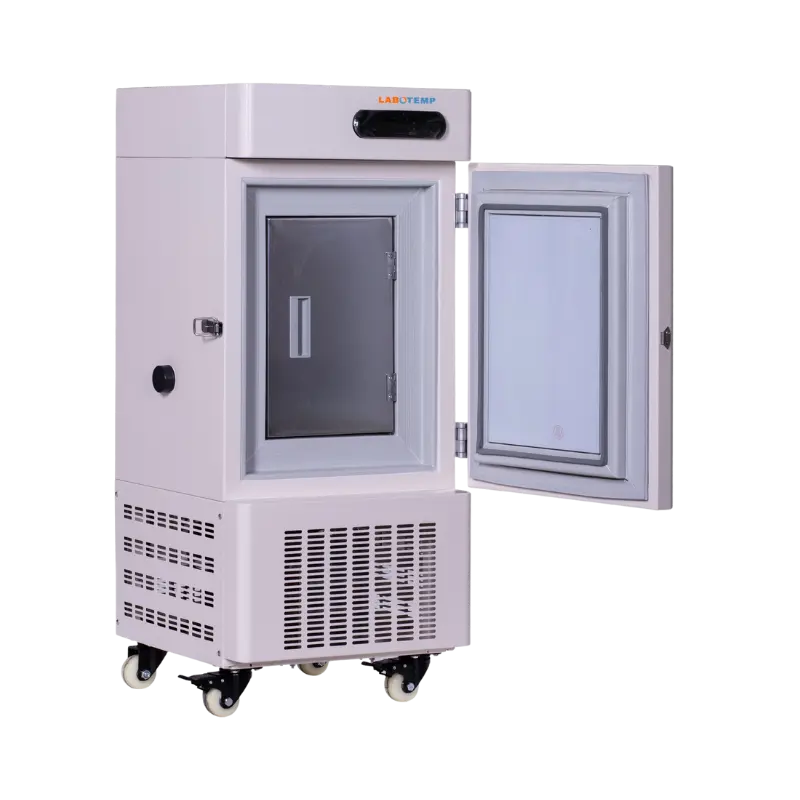

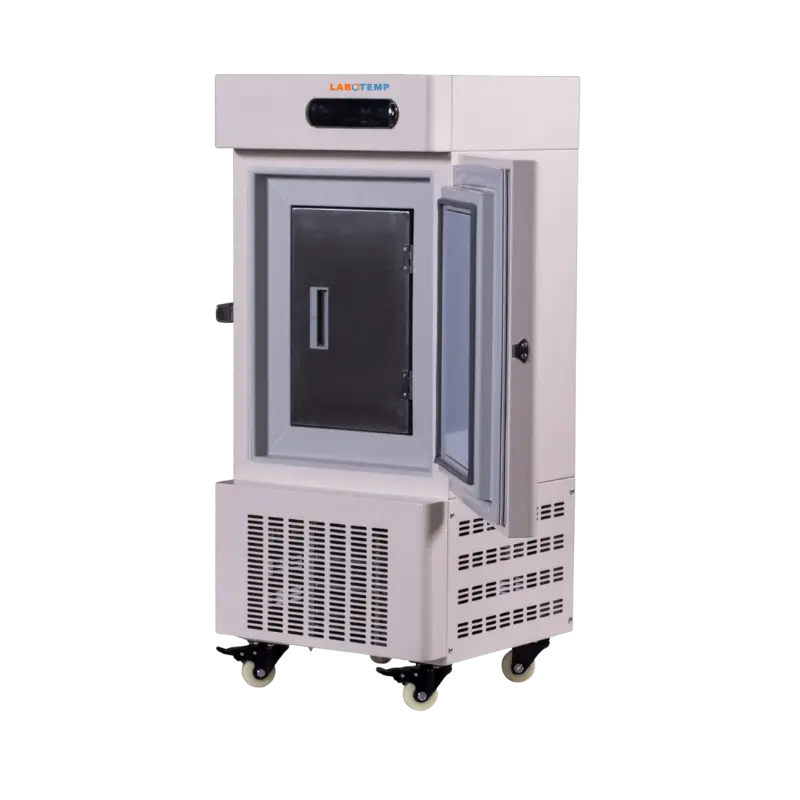

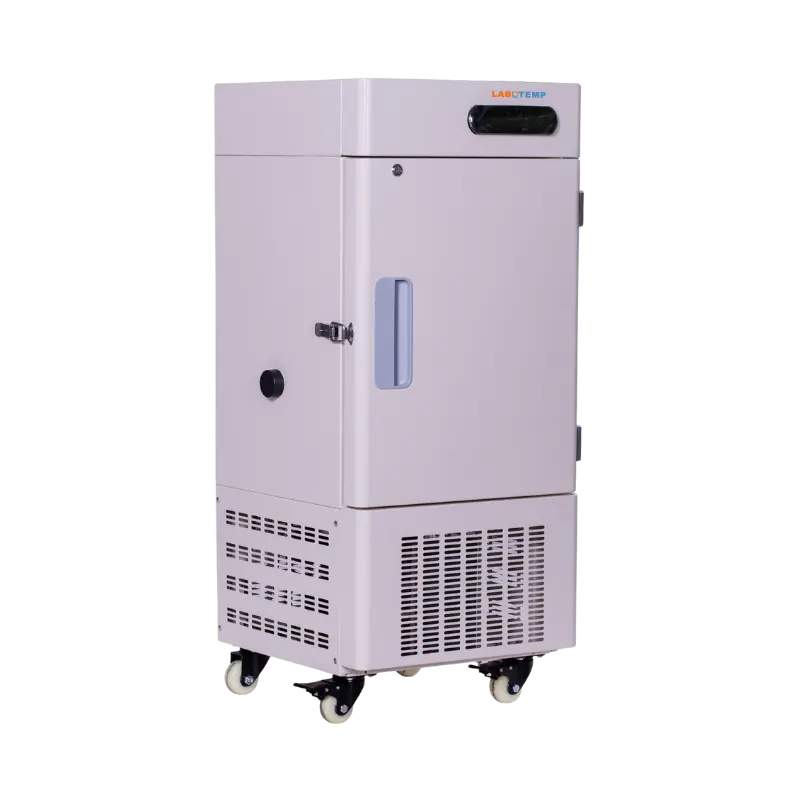

Labotemp Ultra Low Temperature Freezer ULF-08 is a compact ultra low freezer designed for laboratories, hospitals, and research facilities requiring precise storage from −40°C to −86°C. This advanced ULT freezer ensures stable preservation of vaccines, biological samples, enzymes, reagents, and pharmaceuticals with 0.1°C accuracy through its microprocessor control and LED display. As a trusted ultra low lab freezer and low temperature freezer, it delivers consistent performance for long-term biomedical and clinical applications.
Powered by a Secop compressor, HFC refrigerant, and copper condenser, the ULF-08 provides efficient and uniform cooling with low energy consumption. Its 304 stainless steel interior, anti-bacterial coated exterior, lockable door, and smooth casters enhance durability, safety, and convenience. Manufactured by experienced ultra low temperature freezer manufacturer, the ULF-08 reflects Labotemp’s commitment to quality, safety and energy efficiency.
Why Choose Labotemp Ultra Low Temperature Freezer ULF-08?
✓ Ultra-low range: Operates from −40°C to −86°C for sample preservation.
✓ High precision control: Microprocessor system with 0.1°C temp accuracy.
✓ Efficient cooling design: Secop compressor, and HFC refrigerant.
|
Model : ULF-08 Model |
ULF-08 |
|
Capacity : 108L Capacity |
108L |
|
Temperature Range : -40~ -86ºC Temperature Range |
-40~ -86ºC |
|
Compressor : Secop Compressor |
Secop |
|
Consumption : 450w Consumption |
450w |
|
Power consumption : 6.1kw.h/24h Power consumption |
6.1kw.h/24h |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
External Size : 700*730*1260 External Size |
700*730*1260 |
|
Internal Size : 460*460*510 Internal Size |
460*460*510 |
|
Type : Vertical Type |
Vertical |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
Condenser & Evaporator : Made of copper Condenser & Evaporator |
Made of copper |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
Door : Lockable door Door |
Lockable door |
|
Caster : 4 casters Caster |
4 casters |
|
Inner Door : 2 Inner Door |
2 |
|
Shelf : 1 pcs Shelf |
1 pcs |
|
Balance Port : 1, φ18mm Balance Port |
1, φ18mm |
|
Package size : 785*800*1430mm Package size |
785*800*1430mm |
|
Net Weight : 107 kg Net Weight |
107 kg |
|
Gross Weight : 133 kg Gross Weight |
133 kg |
