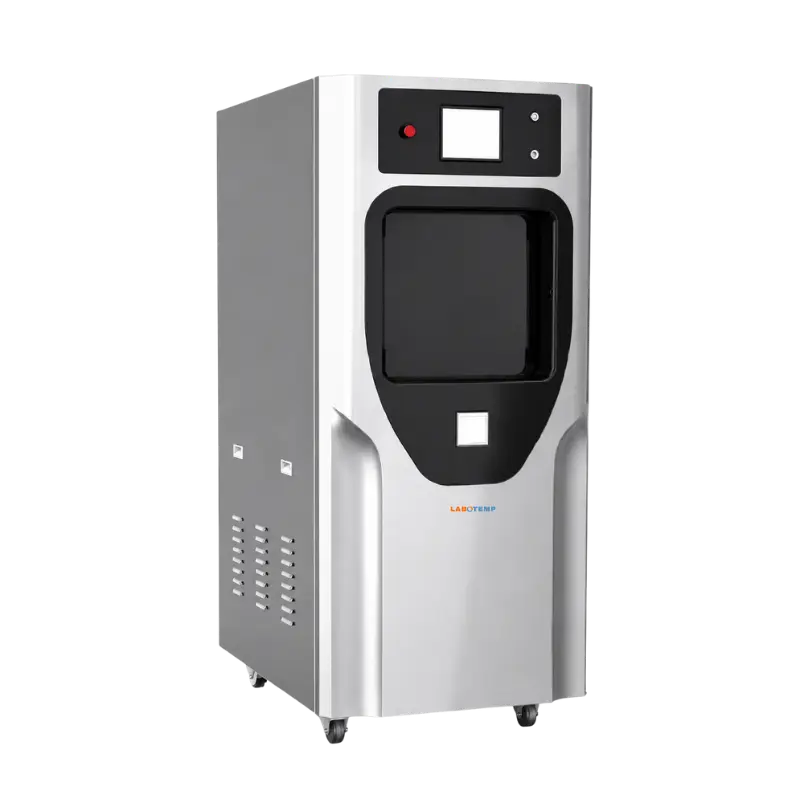

Formaldehyde Autoclave FHA-01

Name: Formaldehyde Autoclave FHA-01
Brand: Labotemp
SKU: FHA-01
Price: 43844.00 USD
Availability: InStock
Rating: 4.9 (676 reviews)

Labotemp Formaldehyde Autoclave FHA-01 is a low-temperature sterilization system designed for heat-sensitive medical instruments and equipment that may not tolerate conventional high-temperature steam sterilization. It uses a controlled formaldehyde-based sterilization process with 2% formaldehyde, 3% alcohol and 95% distilled water, operating at selectable temperatures of 60°C and 76°C. With a total chamber volume of at least 150 L and an effective volume of at least 120 L, it provides practical batch capacity for operating rooms, supply rooms, endoscopy rooms and other medical treatment areas.

The system combines automated dosing, a rapid formaldehyde evaporation system, PID-based temperature control and negative-pressure operation to support controlled and consistent sterilization. Automatic cleaning and drying help reduce formaldehyde residue after processing, while a Siemens PLC, industrial touch interface, pressure and temperature sensors, automatic monitoring and power-off memory simplify operation and process management. Built-in safety functions include door interlocking, over-temperature, over-voltage, under-voltage and door-failure protection. Sterilization records can be printed and stored for traceability, with the system supporting storage of at least 15,000 sterilization records.

Why Choose Labotemp Formaldehyde Autoclave FHA-01?

✓Low-Temperature Sterilization: Operates at 60°C and 76°C, ideal for sterilizing delicate and heat-sensitive instruments.
✓Advanced Automated Control: Equipped with Siemens PLC and touch screen interface for precise monitoring and easy operation.
✓Reliable Safety & Performance: Includes negative pressure system, automatic dosing, alarms, and multiple protection features for safe sterilization.

$43844

Datasheet

General Specifications
Equipment Category : Class II registration Equipment Category	Class II registration
Total Volume : Not less than 150 L Total Volume	Not less than 150 L
Effective Volume : Not less than 120 L Effective Volume	Not less than 120 L
Weight : 345 kg Weight	345 kg
Overall Dimensions : 1070 × 790 × 1770 mm Overall Dimensions	1070 × 790 × 1770 mm
Sterilization Chamber Dimensions : 820 × 465 × 400 mm Sterilization Chamber Dimensions	820 × 465 × 400 mm
Loading Space : Not less than 79 × 42 × 36 cm Loading Space	Not less than 79 × 42 × 36 cm
Operating Height : ≤160 cm Operating Height	≤160 cm
Sterilization Parameters
Working Temperature : 60°C and 76°C Working Temperature	60°C and 76°C
Sterilization Time : 2–3.5 hours Sterilization Time	2–3.5 hours
Sterilization Agent : 2% Formaldehyde + 3% Alcohol + 95% Distilled Water Sterilization Agent	2% Formaldehyde + 3% Alcohol + 95% Distilled Water
Single-Cycle Dosage : 0.6–1.3 kg Single-Cycle Dosage	0.6–1.3 kg
Sterilizer Packaging Specification : 2 L Sterilizer Packaging Specification	2 L
Maximum Pressure Resistance : ≤5 Pa Maximum Pressure Resistance	≤5 Pa
Sterilization Modes : 60°C sterilization and 76°C sterilization Sterilization Modes	60°C sterilization and 76°C sterilization
Control & Functional Specifications
Control System : Siemens PLC Control System	Siemens PLC
Temperature Control : PID algorithm Temperature Control	PID algorithm
User Interface : 8-inch color touch screen User Interface	8-inch color touch screen
Steam Generator : Independently developed rapid evaporator Steam Generator	Independently developed rapid evaporator
Formaldehyde Dosing : Automatic Formaldehyde Dosing	Automatic
Cleaning & Drying : Automatic Cleaning & Drying	Automatic
Data Storage : ≥15,000 sterilization records Data Storage	≥15,000 sterilization records
Printing : Sterilization process records Printing	Sterilization process records
Power-Off Memory : Available Power-Off Memory	Available
Process Monitoring : Automatic Process Monitoring	Automatic
Safety & Construction
Working Pressure System : Negative pressure Working Pressure System	Negative pressure
Door Safety : Safety interlock and hand-pinch protection Door Safety	Safety interlock and hand-pinch protection
Safety Protection : Overvoltage, undervoltage, overtemperature and door-failure protection Safety Protection	Overvoltage, undervoltage, overtemperature and door-failure protection
Pressure Sensor : Built-in high-precision pressure sensor Pressure Sensor	Built-in high-precision pressure sensor
Temperature Sensor : Embedded temperature sensor Temperature Sensor	Embedded temperature sensor
Air Filter : Filtration accuracy ≤0.22 μm Air Filter	Filtration accuracy ≤0.22 μm
Cavity Material : 5052 rust-resistant aluminum alloy Cavity Material	5052 rust-resistant aluminum alloy
Pipe Material : SUS304 stainless steel Pipe Material	SUS304 stainless steel
Structural Frame : SUS304 stainless steel brushed plate Structural Frame	SUS304 stainless steel brushed plate
Door Structure : Electric lifting door Door Structure	Electric lifting door
Insulation : High-quality insulation cotton Insulation	High-quality insulation cotton
Electrical & Environmental Conditions
Power Supply : AC380 V ±38 V, 50 Hz ±1 Hz Power Supply	AC380 V ±38 V, 50 Hz ±1 Hz
Power : 5.3 kVA Power	5.3 kVA
Heating Method : Electric heating Heating Method	Electric heating
Ambient Temperature : 5–40°C Ambient Temperature	5–40°C
Relative Humidity : ≤85% Relative Humidity	≤85%
Atmospheric Pressure : 70–106 kPa Atmospheric Pressure	70–106 kPa

Advanced PLC Control ➤ Advanced PLC Control
Low-temperature sterilization suitable for heat-sensitive medical instruments and laboratory equipment. ➤ Low-temperature sterilization suitable for heat-sensitive medical instruments and laboratory equipment.
Large sterilization chamber capacity (150 L) for efficient batch sterilization. ➤ Large sterilization chamber capacity (150 L) for efficient batch sterilization.
Siemens PLC control system with industrial touch screen for automated operation and monitoring. ➤ Siemens PLC control system with industrial touch screen for automated operation and monitoring.
PID temperature control system ensures precise and stable sterilization temperature. ➤ PID temperature control system ensures precise and stable sterilization temperature.
Rapid evaporation system improves formaldehyde vaporization and sterilization efficiency. ➤ Rapid evaporation system improves formaldehyde vaporization and sterilization efficiency.
Automatic dosing technology for controlled formaldehyde solution filling and reduced manual intervention. ➤ Automatic dosing technology for controlled formaldehyde solution filling and reduced manual intervention.
Automatic cleaning and drying function reduces residual formaldehyde on sterilized items. ➤ Automatic cleaning and drying function reduces residual formaldehyde on sterilized items.
Integrated data recording and printing for sterilization cycle tracking and traceability. ➤ Integrated data recording and printing for sterilization cycle tracking and traceability.
Multiple safety protection systems including over-temperature alarm, door safety interlock, and pressure monitoring. ➤ Multiple safety protection systems including over-temperature alarm, door safety interlock, and pressure monitoring.
Negative pressure working system minimizes the risk of formaldehyde leakage and ensures safe operation. ➤ Negative pressure working system minimizes the risk of formaldehyde leakage and ensures safe operation.

Hospital Instrument Sterilization: Used for sterilizing heat-sensitive surgical instruments in operating rooms and sterile supply departments Hospital Instrument Sterilization
Used for sterilizing heat-sensitive surgical instruments in operating rooms and sterile supply departments
Endoscopy Equipment Sterilization: Suitable for disinfecting endoscopes and delicate diagnostic devices that cannot withstand high temperatures Endoscopy Equipment Sterilization
Suitable for disinfecting endoscopes and delicate diagnostic devices that cannot withstand high temperatures
Medical Device Processing: Ideal for sterilizing catheters, plastic instruments, and other temperature-sensitive medical tools Medical Device Processing
Ideal for sterilizing catheters, plastic instruments, and other temperature-sensitive medical tools
Laboratory Equipment Sterilization: Used in research and clinical laboratories for safe sterilization of laboratory instruments Laboratory Equipment Sterilization
Used in research and clinical laboratories for safe sterilization of laboratory instruments
Healthcare Facility Use: Widely applied in hospitals, clinics, and treatment rooms requiring reliable low-temperature sterilization Healthcare Facility Use
Widely applied in hospitals, clinics, and treatment rooms requiring reliable low-temperature sterilization
