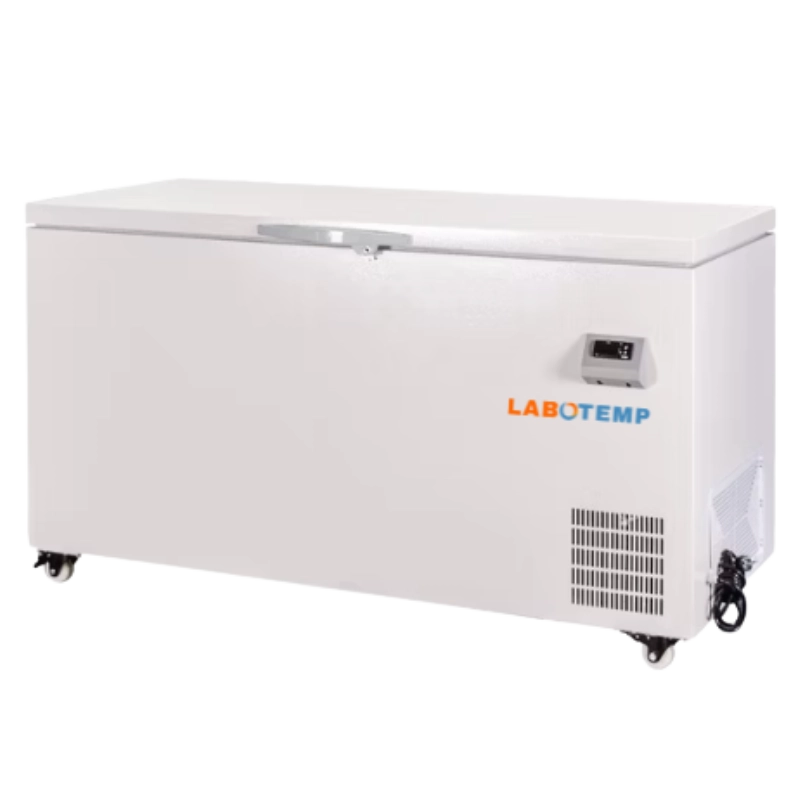

Labotemp Ultra Low Temperature Chest Freezer ULF-05 is a high-capacity and reliable ultra cold chest freezer designed for laboratories, hospitals, and research facilities requiring stable −40°C to −80°C storage. This advanced low temp chest freezer / ultra low chest freezer supports long-term preservation of vaccines, biological samples, enzymes, and reagents within a controlled ultra low freezer temperature range. With electronic temperature control and intelligent alarm protection, the ULF-05 functions as a dependable ultra low temperature lab freezer and low temperature freezer for critical biomedical and industrial applications.
Engineered for efficient daily operation, the ULF-05 features a high-performance SECOP (Danfoss) compressor, German EBM condenser fan, and eco-friendly fluorine-free refrigerant for uniform cooling and low energy consumption. Its 320 L capacity, 100 mm insulation layer, stainless steel 304 interior, powder-coated exterior, digital data display, PTC probe, and four smooth casters enhance durability, hygiene, and mobility. With a single-compressor refrigeration system and electronic monitoring, this ultra low temperature laboratory deep freezer / ultra low temperature laboratory freezer ensures consistent ultra cold freezer performance for long-term sample storage.
Why Choose Labotemp ULF-05?
✓ Stable cooling: Maintains −40°C to −80°C for reliable ultra-low temperature storage.
✓ Durable construction: Stainless steel interior, thick insulation, and corrosion-resistant exterior.
✓ Safe operation: Audio-visual alarms, mobility casters, and precise electronic control.
|
Model : ULF-05 Model |
ULF-05 |
|
Capacity : 320L Capacity |
320L |
|
Temperature range : -40°C to -80°C, adjustable Temperature range |
-40°C to -80°C, adjustable |
|
Compressor : (SECOP)DANFOSS Compressor |
(SECOP)DANFOSS |
|
Type : Horizontal Type |
Horizontal |
|
Voltage : 220V50Hz/ 110v 60Hz Voltage |
220V50Hz/ 110v 60Hz |
|
Alarm : Audible and Visual alarm Alarm |
Audible and Visual alarm |
|
Input Power : 480W Input Power |
480W |
|
Power consumption : 6.6kw.h/24h Power consumption |
6.6kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : Data display Temperature display |
Data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : Germany brand EBM Condenser fans |
Germany brand EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
External dimensions : 1530*765*885mm External dimensions |
1530*765*885mm |
|
Internal dimensions : 1330*470*595mm Internal dimensions |
1330*470*595mm |
|
Package size : 1600*835*1055mm Package size |
1600*835*1055mm |
|
Net weight : 126 kg Net weight |
126 kg |
|
Gross weight : 170 kg Gross weight |
170 kg |
