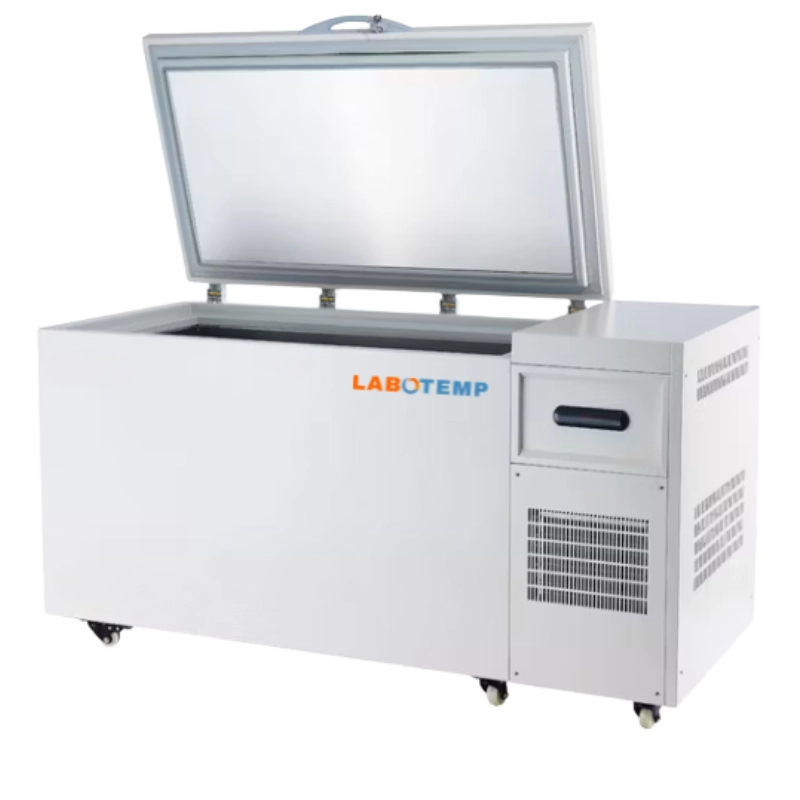

Labotemp Ultra Low Chest Temperature Freezer ULF-16 is a high-capacity ULT freezer designed for reliable −60°C to −86°C storage in laboratories, hospitals, and research institutes. With a spacious 458 L horizontal design, this advanced ULT freezer delivers stable performance across a wide ultra low freezer temperature range, making it ideal for preserving vaccines, enzymes, plasma, and sensitive biological samples. The microprocessor control system with LED display ensures accurate monitoring with 0.1°C precision for consistent ultra low temperature protection.
Powered by a Secop compressor, HFC refrigerant, and copper condenser, the ULF-16 provides efficient direct refrigeration with uniform cooling and low energy loss. Integrated audible and visual alarms protect against temperature deviation, power failure, and system faults, making this ultra low chest freezer or ultra cold freezer a dependable ultra low laboratory freezer for long-term sample storage.
Why Choose Labotemp ULT Freezer ULF-16?
✓ Precision: Microprocessor temperature control at −86°C.
✓ Durability: SECOP compressor, stainless interior, durable exterior.
✓ Protection: Multi-level audible/visual alarms and secure lockable access.
|
Model : ULF-16 Model |
ULF-16 |
|
Capacity : 458L Capacity |
458L |
|
Temperature Range : -60~-86ºC, adjustable Temperature Range |
-60~-86ºC, adjustable |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
Compressor : Secop Compressor |
Secop |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
Input power : 640w Input power |
640w |
|
Power consumption : 10.2 kw.h/24h Power consumption |
10.2 kw.h/24h |
|
Package size : 2185*965*1260mm Package size |
2185*965*1260mm |
|
Net/Gross Weight : 207/255kg Net/Gross Weight |
207/255kg |
|
Type : Horizontal type Type |
Horizontal type |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
External Size : 2115*895*1090mm External Size |
2115*895*1090mm |
|
Internal Size : 1380*500*660mm Internal Size |
1380*500*660mm |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Condenser & Evaporator : Made of copper Condenser & Evaporator |
Made of copper |
|
Structure : Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) Structure |
Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
Door : Lockable door Door |
Lockable door |
|
Casters : 8 Casters |
8 |
|
Thermostat brand : KELD Thermostat brand |
KELD |
|
Insulation thickness : 150mm Insulation thickness |
150mm |
|
Balance Port : 1, φ18mm Balance Port |
1, φ18mm |
