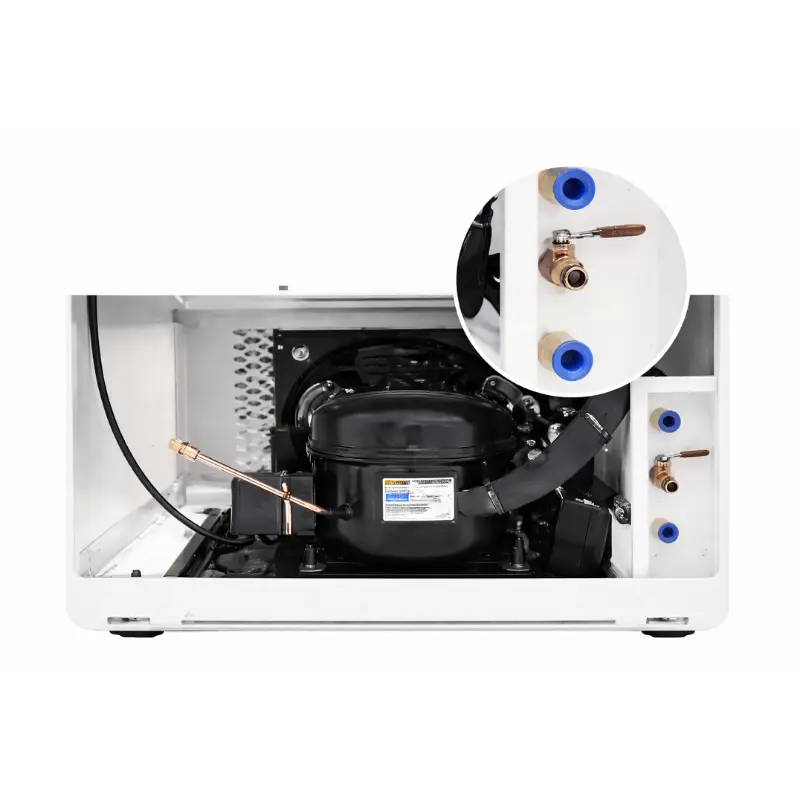

Labotemp Temperature and Humidity Chamber THC-01 is a precision-engineered environmental chamber designed to create stable, repeatable temperature and humidity conditions for reliable product testing and research. With a temperature range of 0°C to 65°C (up to 90°C for high-temperature models) and humidity control from 40% to 95% RH, this temperature humidity test chamber ensures accurate simulation of real-world environmental conditions. Advanced PID control technology maintains tight accuracy (±0.1°C) and uniform humidity distribution, making it ideal for high temperature high humidity test applications.
This temperature and humidity controlled chamber is widely used as a stability chamber, environmental test chamber, and controlled humidity chamber across pharmaceuticals, biotechnology, electronics, agriculture, water analysis, and industrial quality testing. Equipped with an intelligent humidification system, automatic defrost, and RS485 interface for monitoring, it supports precise environmental chamber temperature humidity control and continuous operation.
Why Choose Labotemp Temperature and Humidity Chamber THC-01?
✓ Manufactured by Experts: Built by leading environmental chamber manufacturers for reliable performance.
✓ ISO & CE Compliant: Meets international safety and quality standards for accurate testing.
✓ Precise Control: Advanced PID system ensures stable temperature and humidity for consistent, repeatable results.
|
Temperature Range : 0–65 / H~90℃ Temperature Range |
0–65 / H~90℃ |
|
Volume : 50L Volume |
50L |
|
Power : 0.5kW Power |
0.5kW |
|
Voltage : 220V 50Hz Voltage |
220V 50Hz |
|
Inner Size (H×W×D) : 450×350×320 Inner Size (H×W×D) |
450×350×320 |
|
Overall Dimension (H×W×D) : 970×490×580 Overall Dimension (H×W×D) |
970×490×580 |
|
Accuracy : ±0.1℃ Accuracy |
±0.1℃ |
|
Volatility : ±0.5% Volatility |
±0.5% |
|
Humidity Range : 40%–95% Humidity Range |
40%–95% |
|
Humidity Fluctuation : ±2% Humidity Fluctuation |
±2% |
|
Timing Range : 0–999 M/H Timing Range |
0–999 M/H |
|
Packing Size (H×W×D) : 1070×570×640mm Packing Size (H×W×D) |
1070×570×640mm |
|
Net Weight : 60 kg Net Weight |
60 kg |
|
Gross Weight : 90kg Gross Weight |
90kg |
Volume: 50L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 100L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 150L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 250L
Voltage: 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 350L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 800L
Voltage : 220V
Volatility : ±1%
Timing Range: 0–999 M/H
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120℃ ~ +150℃
Temperature Fluctuation: ±0.5°C
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120°C ~ +150°C
Temperature Fluctuation: ±0.5°C
Temperature heating speed: 3°C/min in average (without loading)
Temperature cooling speed: 1°C/min in average (without loading)
Package Size: 1300x1500x1950mm
Net Weight : 680kg
Total Power: 0.75 kW
Motor Brand: Taiwan Yutian
Model No.: CTC-04
Lowest Temperature: -190 °C
Temperature Range: +30° C to -196° C
Temperature Control Accuracy: ±2° C
Specimen Capacity: More than 60 specimens
Remarks: Cold room volume can be customized according to customer requirements
