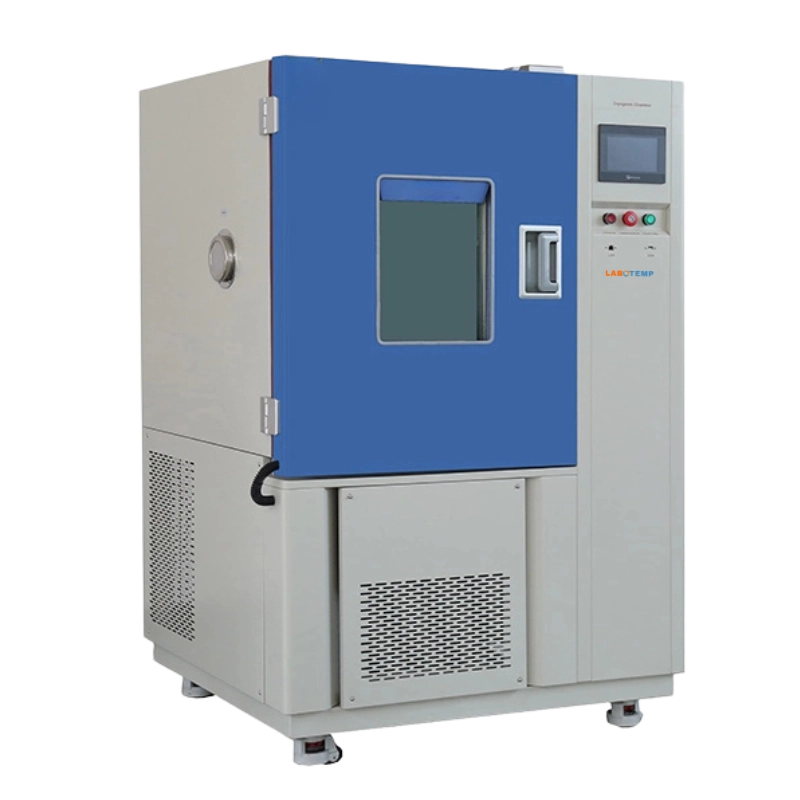

Labotemp Cryogenic Chamber CTC-01 is a high-performance temperature test chamber engineered for ultra-low and high-temperature testing from −120°C to +150°C. Designed for thermal cycling, temperature shock and stability evaluations of electronic components, batteries, aerospace and automotive parts, it provides tight control (±0.5°C) and rapid ramp rates (heating up to 3°C/min, cooling 1°C/min). A Tecumseh cascade refrigeration system with mechanical compression delivers dependable deep cooling, SUS304 stainless-steel interior, polyurethane foam insulation, and an LCD touchscreen controller with Ethernet/PC link ensure durability, repeatable results and easy integration.

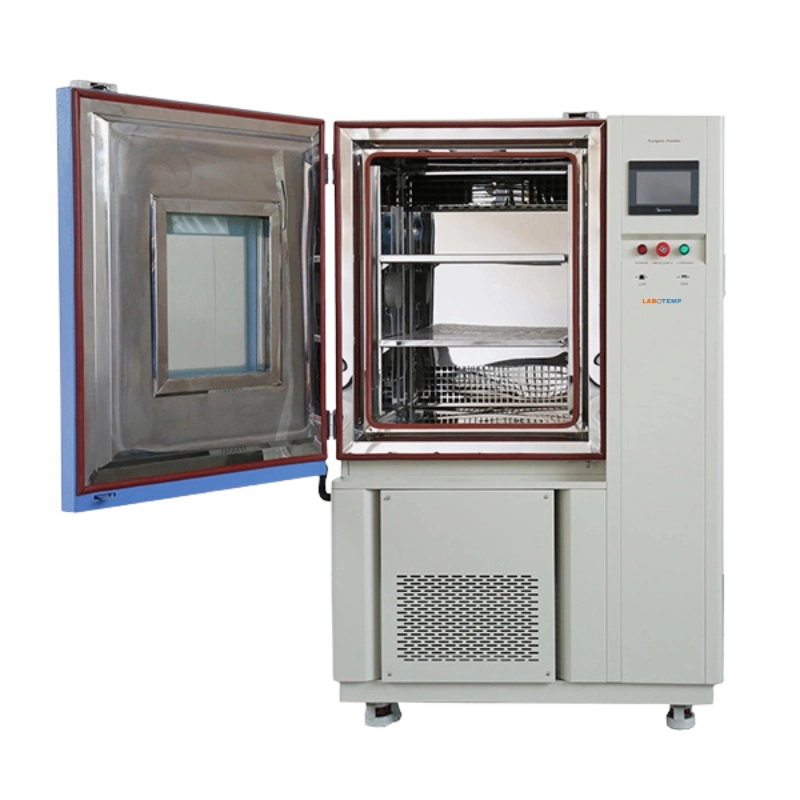

With a 100L capacity and clear observation window, this cryogenic chamber allows easy monitoring during temperature testing. Built for safe and stable operation, this environmental test chamber is ideal for research labs, quality control, semiconductor, aerospace, and industrial applications. Its durable design ensures consistent performance for long testing cycles, making it a dependable choice from an experienced cryogenic chamber manufacturer.
Why choose Labotemp Cryogenic Chamber CTC-01?
✓ Wide range: Stable testing from −120°C to +150°C for cryogenic and environmental test chamber use
✓ Accurate control: Uniform airflow ensures reliable and repeatable temperature chamber results
✓ Trusted build: Durable, safe, and CE & ISO compliant from a reliable cryogenic chamber manufacturer.
|
Temperature Range : -120℃ ~ +150℃ Temperature Range |
-120℃ ~ +150℃ |
|
Interior Volume : 100L Interior Volume |
100L |
|
Power Supply : 380V 50Hz Power Supply |
380V 50Hz |
|
Internal Dimension (mm) : 700×800×900 Internal Dimension (mm) |
700×800×900 |
|
Overall Dimension (mm) : 1200×1340×2020 Overall Dimension (mm) |
1200×1340×2020 |
|
Temperature Fluctuation : ±0.5°C Temperature Fluctuation |
±0.5°C |
|
Temperature Deviation : ±2.0°C Temperature Deviation |
±2.0°C |
|
Cooling Rate : 1°C / min Cooling Rate |
1°C / min |
|
Heating Rate : 3°C / min Heating Rate |
3°C / min |
|
Cooling System : Mechanical compression refrigeration system Cooling System |
Mechanical compression refrigeration system |
|
Refrigerating Unit : Cascade compressor Refrigerating Unit |
Cascade compressor |
|
Heating Element : Nichrome heater Heating Element |
Nichrome heater |
|
Controller : Programmable color LCD touch screen controller, Ethernet connection, PC Link Controller |
Programmable color LCD touch screen controller, Ethernet connection, PC Link |
|
Temperature Sensor : PTR Platinum Resistance PT100Ω / MV A-class Temperature Sensor |
PTR Platinum Resistance PT100Ω / MV A-class |
|
Air Circulation : Centrifugal wind fan Air Circulation |
Centrifugal wind fan |
|
Exterior Material : Steel Plate with protective coating Exterior Material |
Steel Plate with protective coating |
|
Interior Material : SUS304 stainless steel Interior Material |
SUS304 stainless steel |
|
Thermal Insulation : Polyurethane foam and insulation cotton Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Observation Window : Interior lighting, double-layer thermo stability silicone rubber sealing Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
|
Standard Configuration : 1 Cable hole (Φ50) with plug; 2 shelves Standard Configuration |
1 Cable hole (Φ50) with plug; 2 shelves |
|
Maximum Noise : 65 dBA Maximum Noise |
65 dBA |
|
Safety Device : Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection Safety Device |
Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection |
|
Net Weight : 480kg Net Weight |
480kg |
|
Gross Weight : 578kg Gross Weight |
578kg |
|
Package Size : 1750x1260x1950mm Package Size |
1750x1260x1950mm |
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120℃ ~ +150℃
Temperature Fluctuation: ±0.5°C
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120°C ~ +150°C
Temperature Fluctuation: ±0.5°C
Temperature heating speed: 3°C/min in average (without loading)
Temperature cooling speed: 1°C/min in average (without loading)
Package Size: 1300x1500x1950mm
Net Weight : 680kg
Total Power: 0.75 kW
Motor Brand: Taiwan Yutian
Model No.: CTC-04
Lowest Temperature: -190 °C
Temperature Range: +30° C to -196° C
Temperature Control Accuracy: ±2° C
Specimen Capacity: More than 60 specimens
Remarks: Cold room volume can be customized according to customer requirements
Volume: 50L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 100L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 150L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 250L
Voltage: 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 350L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 800L
Voltage : 220V
Volatility : ±1%
Timing Range: 0–999 M/H
