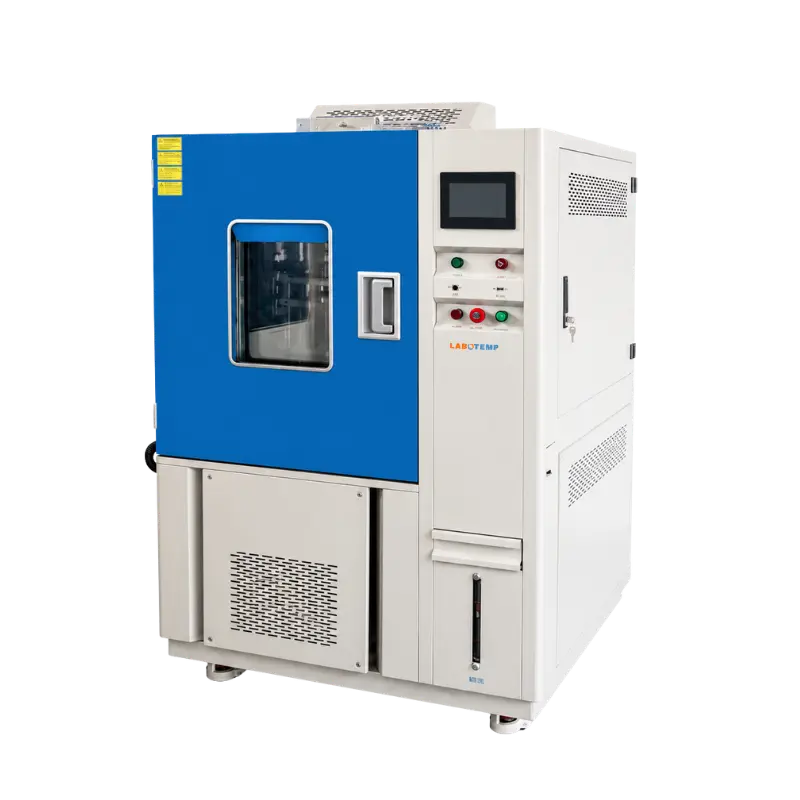

Ozone Chamber LOC-102

Name: Ozone Chamber LOC-102
Brand: Labotemp
SKU: LOC-102
Price: 43240.00 USD
Availability: InStock
Rating: 4.8 (982 reviews)

Labotemp Ozone Test Chamber LOC-102 is a high-capacity system designed for accurate ozone testing of rubber and polymer materials under controlled environmental conditions. With a 500L chamber volume, temperature range up to 100°C, and humidity control from 30% to 98% RH, this advanced ozone aging test chamber enables precise simulation of real-world aging effects. It supports ozone concentration from 1 to 1000 PPHM with adjustable airflow up to 60 L/min, ensuring uniform exposure for reliable material evaluation. The combination of static and dynamic rotating sample holders provides 360° exposure, making it an efficient Rubber & Elastomer Aging Tester for industries such as automotive, cables, seals, and plastics.

Engineered for stability and long-term performance, this ozone chamber features a programmable color LCD touch controller with Ethernet connectivity for real-time monitoring and data control. A high-precision PT100 platinum temperature sensor ensures accurate thermal regulation (±0.5°C), while the mechanical refrigeration system maintains consistent cooling performance. The silent discharge ozone generator delivers stable ozone output, and the integrated exhaust system with carbon filtration ensures safe removal of residual ozone.

Why Choose Labotemp Ozone Test Chamber LOC-102?
✓ Large capacity chamber: 500L for higher sample throughput
✓ Precise environmental control: Accurate temp, humidity & ozone levels
✓ Uniform exposure system: Dynamic + static sample holders

$43240

Datasheet

Capacity : 500L Capacity	500L
Temperature Range : 0°C ~ +100°C Temperature Range	0°C ~ +100°C
Power Supply : 220V 50/60Hz Power Supply	220V 50/60Hz
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 30% ~ 98% RH Humidity Range	30% ~ 98% RH
Humidity Deviation : ±2.5% RH Humidity Deviation	±2.5% RH
Cooling Rate : Ambient ~ 0℃ within 20 min Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration : 1 ~ 1000 PPHM Ozone Concentration	1 ~ 1000 PPHM
Sample Holder Rotate Speed : 0 ~ 10 r/min Sample Holder Rotate Speed	0 ~ 10 r/min
Airflow Rate : 0 ~ 60 L/min Airflow Rate	0 ~ 60 L/min
Clamps Tensile Stretch : 5% ~ 35% Clamps Tensile Stretch	5% ~ 35%
Cooling System : Mechanical compression refrigeration system Cooling System	Mechanical compression refrigeration system
Controller : Programmable color LCD touch screen controller Controller	Programmable color LCD touch screen controller
Communication : Ethernet connection, PC Link Communication	Ethernet connection, PC Link
Humidifier : External isolation, stainless steel surface evaporation humidifier Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor : PTR Platinum Resistance PT100Ω / MV A-class Temperature Sensor	PTR Platinum Resistance PT100Ω / MV A-class
Gas Sensor : Ozone gas sensor Gas Sensor	Ozone gas sensor
Ozone Generator : Silent discharge type ozone generator Ozone Generator	Silent discharge type ozone generator
Sample Holder : Static + dynamic combined sample holder Sample Holder	Static + dynamic combined sample holder
Exterior Material : Steel plate with protective coating Exterior Material	Steel plate with protective coating
Interior Material : SUS304 stainless steel Interior Material	SUS304 stainless steel
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Internal Dimension : 700 × 800 × 900mm Internal Dimension	700 × 800 × 900mm
Overall Dimension : 1200 × 1340 × 2020mm Overall Dimension	1200 × 1340 × 2020mm
Net Weight : 476kg Net Weight	476kg
Gross Weight : 568kg Gross Weight	568kg
Package Size : 1350x1500x2300mm Package Size	1350x1500x2300mm

360° Exposure Testing ➤ 360° Exposure Testing
Durable construction designed to support long-term laboratory and industrial use. ➤ Durable construction designed to support long-term laboratory and industrial use.
Uniform specimen exposure design to improve testing consistency across multiple samples. ➤ Uniform specimen exposure design to improve testing consistency across multiple samples.
Low-noise operating system for a comfortable laboratory environment. ➤ Low-noise operating system for a comfortable laboratory environment.
Fast response environmental regulation to maintain reliable test conditions. ➤ Fast response environmental regulation to maintain reliable test conditions.
Modular access design for convenient maintenance and serviceability. ➤ Modular access design for convenient maintenance and serviceability.
Compact footprint with efficient use of laboratory space. ➤ Compact footprint with efficient use of laboratory space.
Built-in safety mechanisms to support secure operation during extended testing cycles. ➤ Built-in safety mechanisms to support secure operation during extended testing cycles.
Suitable for quality control, product development, and material validation applications. ➤ Suitable for quality control, product development, and material validation applications.

LOC-102 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions ➤ LOC-102 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions
Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies ➤ Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies
