Ozone Chamber LOC-104

Name: Ozone Chamber LOC-104
Brand: Labotemp
SKU: LOC-104
Price: 49523.00 USD
Availability: InStock
Rating: 4.8 (708 reviews)

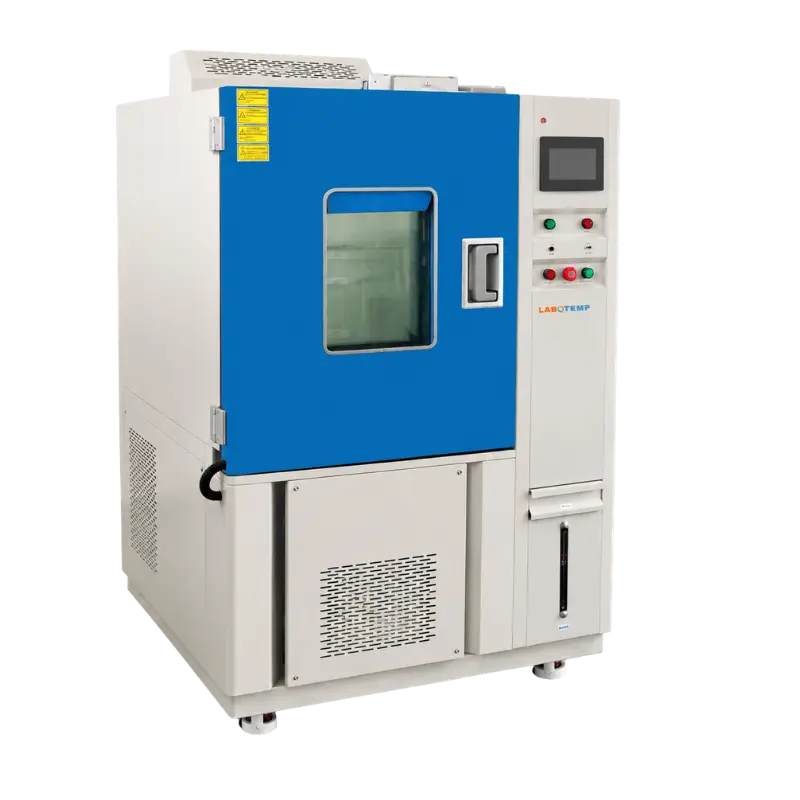

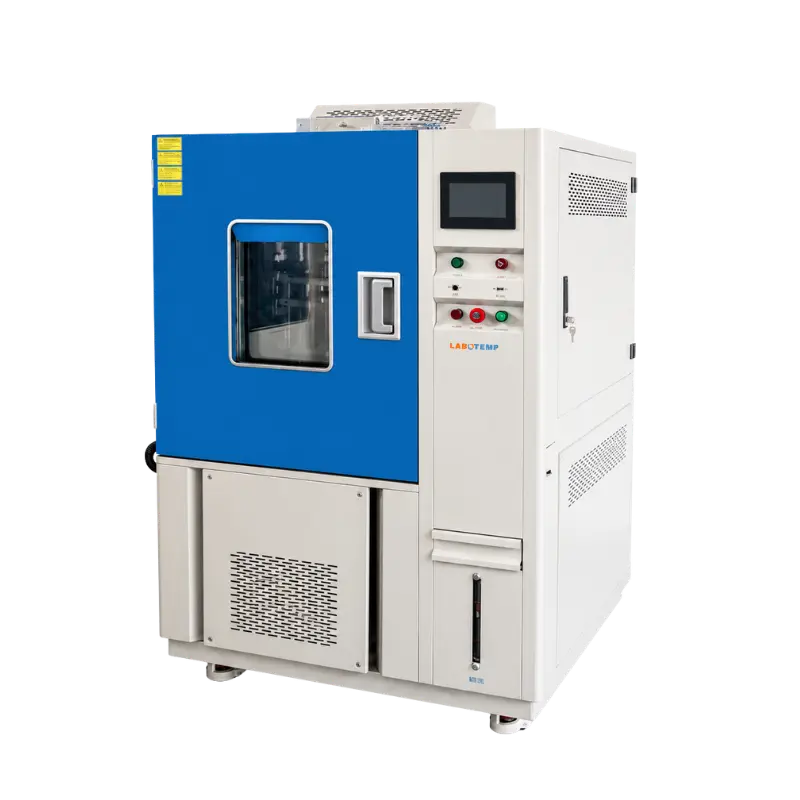

Labotemp Ozone Test Chamber LOC-104 is a large-capacity system designed for advanced ozone testing of rubber and polymer materials under controlled environmental conditions. With a 1000L chamber volume, this high-performance ozone aging test chamber enables precise simulation of ozone exposure to evaluate cracking, degradation, and durability of elastomers used in automotive, cable, sealing, and industrial applications. The combination of static and dynamic rotating sample holders ensures uniform 360° exposure, making it an efficient Rubber & Elastomer Aging Tester for high-throughput testing.

Built for reliability and long-term use, this ozone chamber features a programmable touch-screen controller for accurate monitoring and control of ozone concentration, temperature, and humidity. The system ensures stable operation through consistent airflow and efficient ozone generation, while an integrated exhaust system safely removes residual ozone to protect operators and the environment. With durable construction and optimized performance, this Rubber Ozone Resistance Tester is ideal for laboratories requiring dependable and repeatable aging analysis.

Why Choose Labotemp Ozone Test Chamber LOC-104?
✓ High-capacity system: 1000L chamber for large-scale testing
✓ Uniform exposure design: Ensures consistent ozone distribution
✓ Trusted manufacturer: Labotemp delivers reliable lab equipment

$49523

Datasheet

Capacity : 1000L Capacity	1000L
Temperature Range : 0°C ~ +100°C Temperature Range	0°C ~ +100°C
Power Supply : 220V 50/60Hz Power Supply	220V 50/60Hz
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 30% ~ 98% RH Humidity Range	30% ~ 98% RH
Humidity Deviation : ±2.5% RH Humidity Deviation	±2.5% RH
Cooling Rate : Ambient ~ 0℃ within 20 min Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration : 1 ~ 1000 PPHM Ozone Concentration	1 ~ 1000 PPHM
Sample Holder Rotate Speed : 0 ~ 10 r/min Sample Holder Rotate Speed	0 ~ 10 r/min
Airflow Rate : 0 ~ 60 L/min Airflow Rate	0 ~ 60 L/min
Clamps Tensile Stretch : 5% ~ 35% Clamps Tensile Stretch	5% ~ 35%
Cooling System : Mechanical compression refrigeration system Cooling System	Mechanical compression refrigeration system
Controller : Programmable color LCD touch screen controller Controller	Programmable color LCD touch screen controller
Communication : Ethernet connection, PC Link Communication	Ethernet connection, PC Link
Humidifier : External isolation, stainless steel surface evaporation humidifier Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor : PTR Platinum Resistance PT100Ω / MV A-class Temperature Sensor	PTR Platinum Resistance PT100Ω / MV A-class
Gas Sensor : Ozone gas sensor Gas Sensor	Ozone gas sensor
Ozone Generator : Silent discharge type ozone generator Ozone Generator	Silent discharge type ozone generator

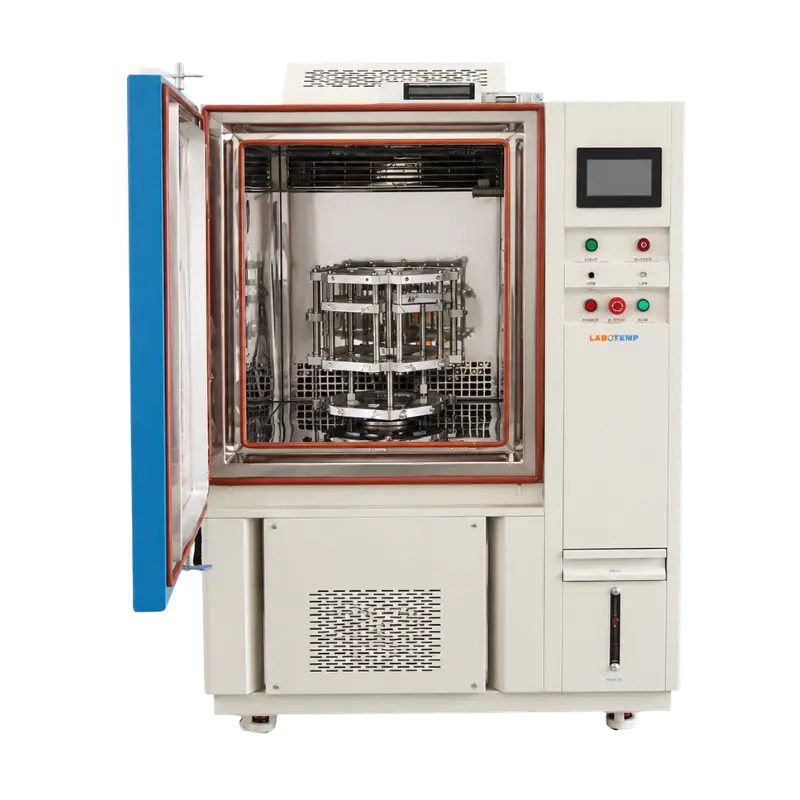

Sample Holder : Static + dynamic combined sample holder Sample Holder	Static + dynamic combined sample holder
Exterior Material : Steel Plate with protective coating Exterior Material	Steel Plate with protective coating
Interior Material : SUS304 stainless steel Interior Material	SUS304 stainless steel
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Internal Dimension : 1000 × 1000 × 1000mm Internal Dimension	1000 × 1000 × 1000mm
Overall Dimension : 1500 × 1540 × 2140mm Overall Dimension	1500 × 1540 × 2140mm
Net Weight : 650kg Net Weight	650kg
Gross Weight : 800kg Gross Weight	800kg
Package Size : 1500x1540x2350mm Package Size	1500x1540x2350mm

Corrosion Resistant Body ➤ Corrosion Resistant Body
Durable construction designed to support long-term laboratory and industrial use. ➤ Durable construction designed to support long-term laboratory and industrial use.
Uniform specimen exposure design to improve testing consistency across multiple samples. ➤ Uniform specimen exposure design to improve testing consistency across multiple samples.
Low-noise operating system for a comfortable laboratory environment. ➤ Low-noise operating system for a comfortable laboratory environment.
Fast response environmental regulation to maintain reliable test conditions. ➤ Fast response environmental regulation to maintain reliable test conditions.
Modular access design for convenient maintenance and serviceability. ➤ Modular access design for convenient maintenance and serviceability.
Compact footprint with efficient use of laboratory space. ➤ Compact footprint with efficient use of laboratory space.
Built-in safety mechanisms to support secure operation during extended testing cycles. ➤ Built-in safety mechanisms to support secure operation during extended testing cycles.
Suitable for quality control, product development, and material validation  ➤ Suitable for quality control, product development, and material validation

LOC-104 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions ➤ LOC-104 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions
Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies ➤ Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies
