Labotemp Floor Standing Refrigerated Centrifuge LRC-103 is developed for laboratories that require high-speed sample separation with precise temperature stability. This high speed refrigerated centrifuge reaches 22,000 rpm with a maximum RCF of 53,028 × g, allowing efficient processing of demanding laboratory samples such as plasma, serum, enzymes, and cell culture materials. The advanced refrigeration system maintains temperatures from -20°C to 40°C with ±1°C accuracy, helping protect temperature-sensitive biomolecules during high-speed centrifugation.
Engineered for controlled laboratory performance, this refrigerated centrifuge machine integrates an advanced CPU control system with touch LCD interface that allows precise monitoring of speed, RCF, timer, and program parameters. Safety features such as automatic rotor identification, imbalance detection with automatic shutdown, motorized lid locking, and over-speed protection ensure stable and secure operation during high-speed runs.
Why Choose Labotemp Floor Standing Refrigerated Centrifuge LRC-103?
✓ Ultra-High Separation Force: Up to 53,028 × g RCF for advanced molecular biology and pharmaceutical research workflows
✓ Designed by a Centrifuge Manufacturer: Labotemp develops laboratory centrifuges focused on precision engineering and dependable long-term performance
✓ Intelligent Safety System: Automatic rotor identification, imbalance shutdown protection, and secure lid locking for safe high-speed operation
|
Maximum Capacity : 4 × 1000 ml Maximum Capacity |
4 × 1000 ml |
|
Maximum Speed : 22000 rpm Maximum Speed |
22000 rpm |
|
Maximum RCF : 53028 × g Maximum RCF |
53028 × g |
|
Temperature Range : -20°C to +40°C Temperature Range |
-20°C to +40°C |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Refrigerant : R-22 Refrigerant |
R-22 |
|
Power Supply : AC 220V, 50 Hz, 30 A Power Supply |
AC 220V, 50 Hz, 30 A |
|

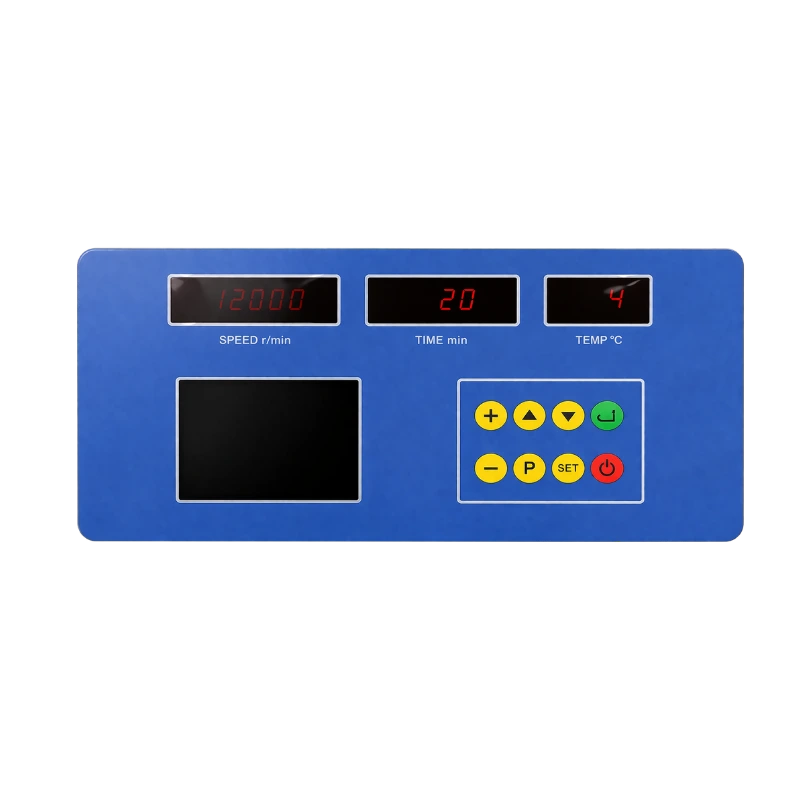

Control System : Advanced CPU control system Control System |
Advanced CPU control system |
|
Display : Touch LCD color digital screen Display |
Touch LCD color digital screen |
|
Timer Range : 1 – 99 min 59 sec Timer Range |
1 – 99 min 59 sec |
|
Acceleration / Deceleration : 10 levels Acceleration / Deceleration |
10 levels |
|
Motor Type : AC frequency conversion motor, direct drive Motor Type |
AC frequency conversion motor, direct drive |
|
Noise Level : ≤60 dB(A) Noise Level |
≤60 dB(A) |
|
Net Weight : 240kg Net Weight |
240kg |
|
Gross Weight : 310 kg Gross Weight |
310 kg |
|
Dimensions (L×W×H) : 860 × 730 × 1200 mm Dimensions (L×W×H) |
860 × 730 × 1200 mm |
|
Packing Size (L×W×H) : 920 × 790 × 1700 mm Packing Size (L×W×H) |
920 × 790 × 1700 mm |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Fixed Angle Rotor | 24 × 1.5 ml | 22000 r/min | 53028 × g | PP / PC Tubes |
| 2 | Fixed Angle Rotor | 16 × 10 ml | 21000 r/min | 52300 × g | PP / PC Tubes |
| 3 | Fixed Angle Rotor | 12 × 15 ml | 18000 r/min | 36220 × g | PP / PC Tubes |
| 4 | Fixed Angle Rotor | 6 × 50 ml | 20000 r/min | 43000 × g | PP / PC Tubes |
| 5 | Fixed Angle Rotor | 6 × 85 ml | 15000 r/min | 25700 × g | PP / PC Tubes |
| 6 | Fixed Angle Rotor | 4 × 250 ml | 14000 r/min | 30200 × g | PP / PC Tubes |
| 7 | Fixed Angle Rotor with Adapter | 6 × 250 ml; Adapter: 6 × 50 ml | 12000 r/min | 22500 × g | PP / PC Tubes |
| 8 | Fixed Angle Rotor | 8 × 100 ml | 14000 r/min | 26952 × g | PP / PC Tubes |
| 9 | Fixed Angle Rotor | 6 × 500 ml | 10000 r/min | 17800 × g | PP / PC Tubes |
| 10 | Fixed Angle Rotor | 4 × 1000 ml | 8000 r/min | 12000 × g | PP / PC Tubes |
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C (1°C steps)
Temperature Control: PID dynamic control
Temperature Accuracy: ±1°C
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Refrigerant: R-22
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 h 59 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±20 r/min
Voltage : AC 220V, 50 Hz
Timer Range: 0 – 99 h 59 min adjustable
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Timer Range: 1 – 99 min 59 sec adjustable
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±20 r/min
User Management: Multi-level authority management system
USB Interface: Supported for data export and system upgrade
Touch Screen Size: 10-inch LCD touch screen
Timer Range: 1 s – 99 h 59 min or continuous run
Weight: 74 kg
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Temperature Accuracy: ±1°C
Weight: 42 kg
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Temperature Accuracy: ±1°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -9°C to +35°C
Temperature Accuracy: ±1°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: Down to -20°C
Temperature Accuracy: ±1°C
Timing Range: 1 s ~ 17 h : 59 min : 59 s / Jog
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Time Control: 1 sec – 99 min 59 sec adjustable
Temperature Range: -20°C ~ 40°C
Temperature Control Accuracy: ±1°C
Speed Accuracy: ±10 r/min
