Labotemp Refrigerated Floor Standing Centrifuge LRC-101 is a floor standing refrigerated centrifuge engineered for laboratories that require reliable, high-capacity sample separation with controlled temperature conditions. This high speed refrigerated centrifuge reaches speeds up to 8000 rpm with a maximum RCF of 11880 × g, supporting rotors up to 6 × 1000 ml, making it suitable for hospitals, blood banks, pharmaceutical laboratories, cell culture facilities, and university research labs. The refrigeration system maintains temperatures from -20°C to 40°C with ±1°C accuracy, helping protect temperature-sensitive samples such as plasma, enzymes, vaccines, and biological fluids during centrifugation.
Designed for continuous laboratory operation, this refrigerated centrifuge machine features a touch LCD interface that allows precise control of speed, RCF, timer, acceleration, and program settings with up to 30 programmable workflows for routine laboratory processes. Safety is reinforced through automatic rotor identification, active imbalance detection with shutdown, over-speed protection, and motorized lid locking, ensuring secure operation.
Why Choose Labotemp Refrigerated Floor Standing Centrifuge LRC-101
✓ High Throughput Processing: Large 6×1000 ml capacity ideal for blood bank and hospital centrifugation workloads
✓ Certified Quality: Manufactured under ISO 15189 and CE certified standards for safety, performance, and global acceptance
✓ Laboratory-Grade Safety: Integrated imbalance detection, rotor identification, and secure lid locking for dependable operation
|
Maximum Capacity : 6 × 1000 ml Maximum Capacity |
6 × 1000 ml |
|
Maximum Speed : 8000 rpm Maximum Speed |
8000 rpm |
|
Maximum RCF : 11880 × g Maximum RCF |
11880 × g |
|
Noise Level : ≤60 dB(A) Noise Level |
≤60 dB(A) |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Temperature Range : -20°C to +40°C Temperature Range |
-20°C to +40°C |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Operating Temperature Reference : RT 25°C Operating Temperature Reference |
RT 25°C |
|
Control System : Advanced CPU control system Control System |
Advanced CPU control system |
|

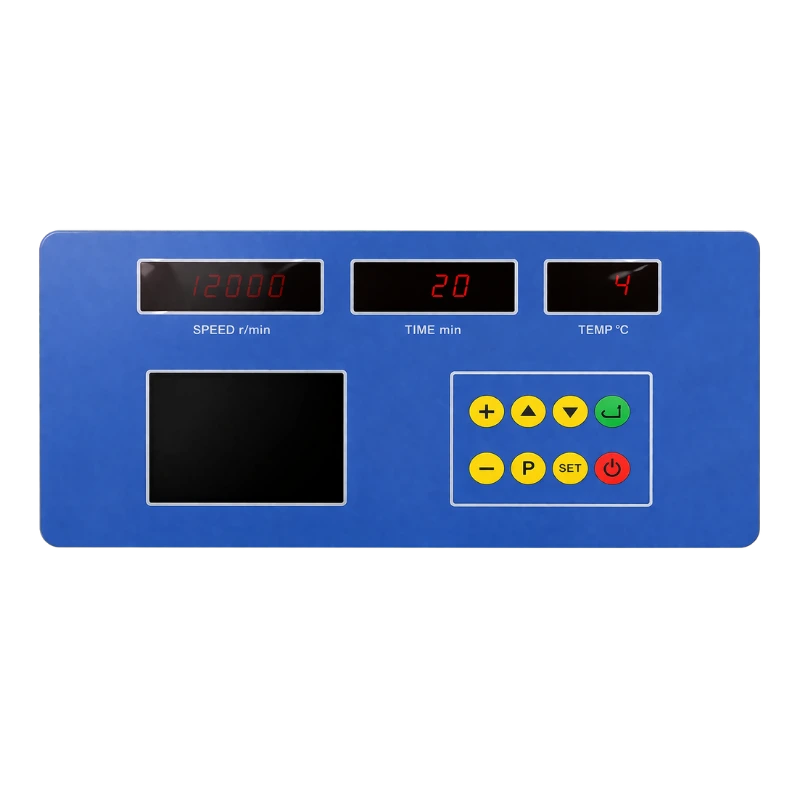

Display : Touch LCD color digital screen Display |
Touch LCD color digital screen |
|
Timer Range : 1 – 99 min 59 sec Timer Range |
1 – 99 min 59 sec |
|
Acceleration / Deceleration : 10 levels Acceleration / Deceleration |
10 levels |
|
Daily Program Storage : 30 programs Daily Program Storage |
30 programs |
|
Motor Type : AC frequency conversion motor, direct drive Motor Type |
AC frequency conversion motor, direct drive |
|
Power Supply : AC 220V, 50 Hz, 30 A Power Supply |
AC 220V, 50 Hz, 30 A |
|
Power Consumption : 6500 W Power Consumption |
6500 W |
|
Dimensions (L×W×H) : 860 × 730 × 1200 mm Dimensions (L×W×H) |
860 × 730 × 1200 mm |
|
Net Weight : 270 kg Net Weight |
270 kg |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Fixed Angle Rotor | 6 × 500 ml | 8000 r/min | 11880 × g | PP / PC Tubes |
| 2 | Fixed Angle Rotor | 6 × 1000 ml | 7000 r/min | 11630 × g | PP / PC Tubes |
