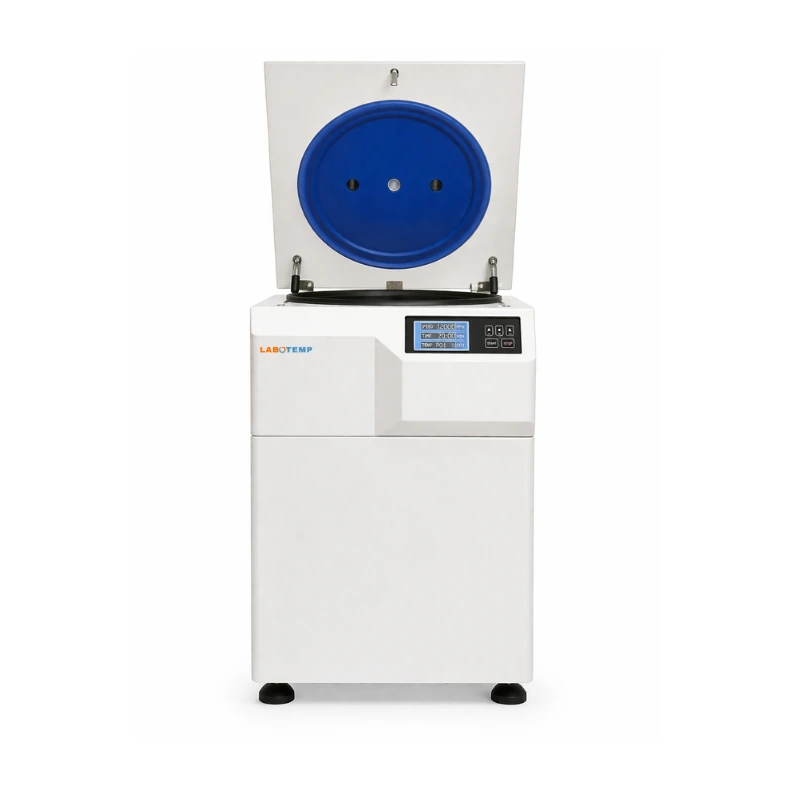

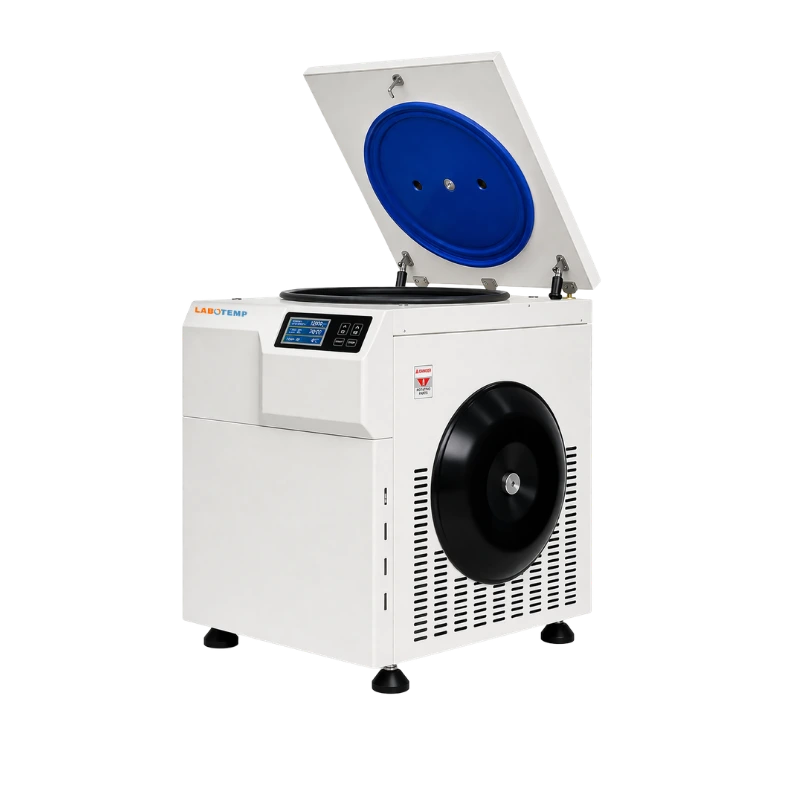

Labotemp Refrigerated Floor Standing Centrifuge LRC-102 is a high speed refrigerated centrifuge designed for laboratories requiring precise temperature-controlled separation at very high rotational speeds. This floor standing refrigerated centrifuge delivers speeds up to 21,000 rpm with a maximum RCF of 31,554 × g, making it suitable for molecular biology labs, hospitals, blood banks, pharmaceutical research, and university laboratories handling sensitive biological samples. The advanced refrigeration system maintains temperatures from -20°C to 40°C with ±1°C accuracy, protecting temperature-sensitive materials such as plasma, enzymes, vaccines, and cell cultures during high-speed centrifugation.
The intelligent control system allows precise adjustment of speed, timer, acceleration, and deceleration with 1–99 min timer settings and multiple ramp profiles. Safety is enhanced through automatic RFID rotor identification, self-locking rotor system, imbalance detection with automatic shutdown, and over-speed protection.
Why Choose Labotemp Refrigerated Floor Standing Centrifuge LRC-102
✓ Ultra High Speed Performance: Up to 21,000 rpm with 31,554 × g RCF for advanced research applications
✓ Centrifuge Manufacturer: Labotemp designs and manufactures laboratory centrifuges engineered for precision separation, durable construction, and reliable long-term laboratory performance
✓ Advanced Safety & Rotor Flexibility: RFID rotor recognition, imbalance protection, and support for multiple rotor configurations
|
Maximum Capacity : 4 × 750 ml Maximum Capacity |
4 × 750 ml |
|
Maximum Speed : 22000 rpm Maximum Speed |
22000 rpm |
|
Maximum RCF : 41495 x g Maximum RCF |
41495 x g |
|
Temperature Range : -20°C to +40°C (1°C steps) Temperature Range |
-20°C to +40°C (1°C steps) |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Power Supply : AC 220V, 50 Hz, 16 A Power Supply |
AC 220V, 50 Hz, 16 A |
|
Power Consumption : 2150 W Power Consumption |
2150 W |
|
Motor Type : Frequency conversion AC motor (maintenance-free) Motor Type |
Frequency conversion AC motor (maintenance-free) |
|
Control System : Microprocessor / Advanced CPU control Control System |
Microprocessor / Advanced CPU control |
|

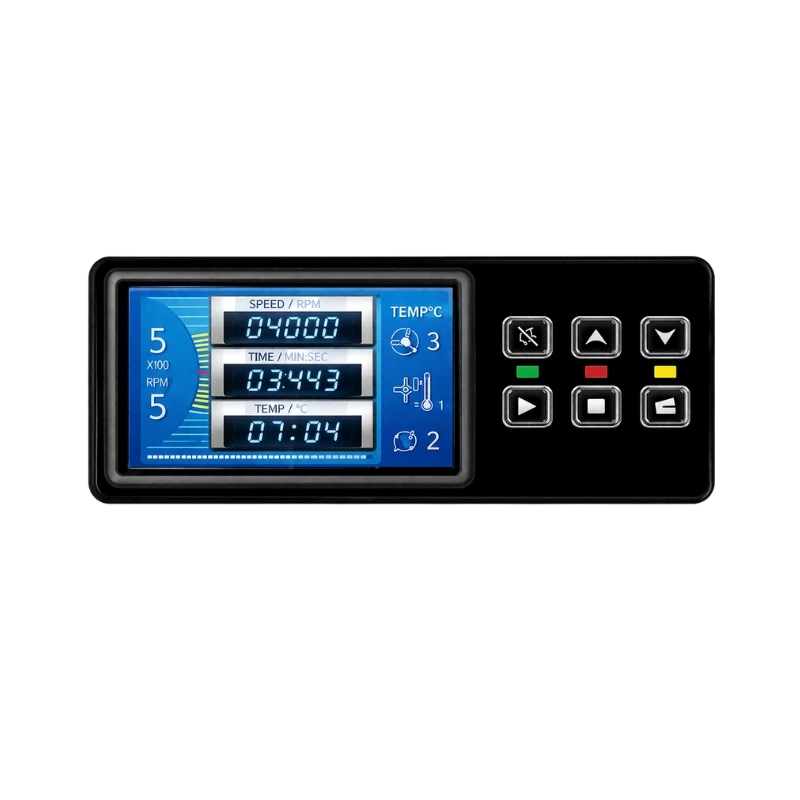

Display : Touch color LCD screen Display |
Touch color LCD screen |
|
Timer Range : 1 – 99 min 59 sec Timer Range |
1 – 99 min 59 sec |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Acceleration / Deceleration : 10 / 10 levels Acceleration / Deceleration |
10 / 10 levels |
|
Programs Memory : 30 programs Programs Memory |
30 programs |
|
Cooling System : CFC-free refrigeration with pre-cooling Cooling System |
CFC-free refrigeration with pre-cooling |
|
Temperature Control : PID dynamic control Temperature Control |
PID dynamic control |
|
Dimensions (L×W×H) : 700 × 600 × 820 mm Dimensions (L×W×H) |
700 × 600 × 820 mm |
|
Construction : Steel body with stainless steel chamber Construction |
Steel body with stainless steel chamber |
|
Rotor Material : Aluminum alloy rotor Rotor Material |
Aluminum alloy rotor |
|
Net Weight : 240kg Net Weight |
240kg |
|
Gross Weight : 265kg Gross Weight |
265kg |
|
Package Size : 830x720x1020mm Package Size |
830x720x1020mm |
| S. No. | Rotor Type | Capacity | Max. Speed (r/min) | Max. RCF (×g) | Tube Type |
|---|---|---|---|---|---|
| 1 | Fixed Angle Rotor | 12 × 5 ml | 22000 | 37877 | PP/PC Tube |
| 2 | Fixed Angle Rotor | 24 × 1.5 ml | 20000 | 41495 | PP/PC Tube |
| 3 | Fixed Angle Rotor | 16 × 10 ml | 18000 | 34835 | PP/PC Tube |
| 4 | Fixed Angle Rotor | 12 × 15 ml | 17000 | 34835 | PP/PC Tube |
| 5 | Fixed Angle Rotor | 6 × 50 ml | 18000 | 34777 | PP/PC Tube |
| 6 | Fixed Angle Rotor | 8 × 50 ml | 16000 | 30395 | PP/PC Tube |
| 7 | Fixed Angle Rotor | 6 × 100 ml | 16000 | 30395 | PP/PC Tube |
| 8 | Fixed Angle Rotor | 4 × 250 ml | 13000 | 26039 | PP/PC Tube |
| 9 | Fixed Angle Rotor | 6 × 250 ml | 10000 | 8721 | PP/PC Tube |
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C (1°C steps)
Temperature Control: PID dynamic control
Temperature Accuracy: ±1°C
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Refrigerant: R-22
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 h 59 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±20 r/min
Voltage : AC 220V, 50 Hz
Timer Range: 0 – 99 h 59 min adjustable
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Timer Range: 1 – 99 min 59 sec adjustable
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±20 r/min
User Management: Multi-level authority management system
USB Interface: Supported for data export and system upgrade
Touch Screen Size: 10-inch LCD touch screen
Timer Range: 1 s – 99 h 59 min or continuous run
Weight: 74 kg
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Temperature Accuracy: ±1°C
Weight: 42 kg
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Temperature Accuracy: ±1°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -9°C to +35°C
Temperature Accuracy: ±1°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: Down to -20°C
Temperature Accuracy: ±1°C
Timing Range: 1 s ~ 17 h : 59 min : 59 s / Jog
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Time Control: 1 sec – 99 min 59 sec adjustable
Temperature Range: -20°C ~ 40°C
Temperature Control Accuracy: ±1°C
Speed Accuracy: ±10 r/min
