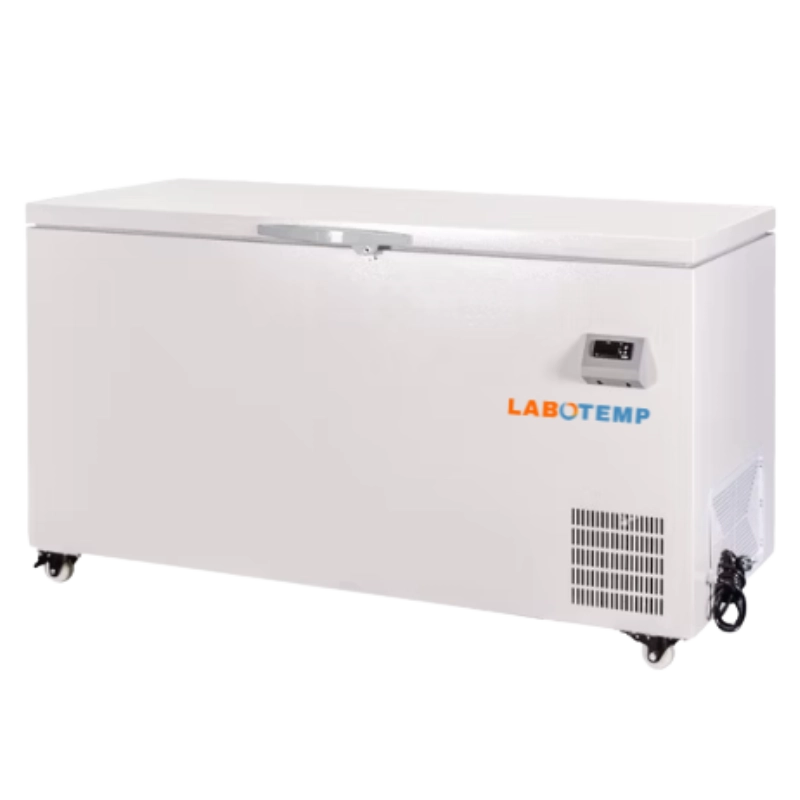

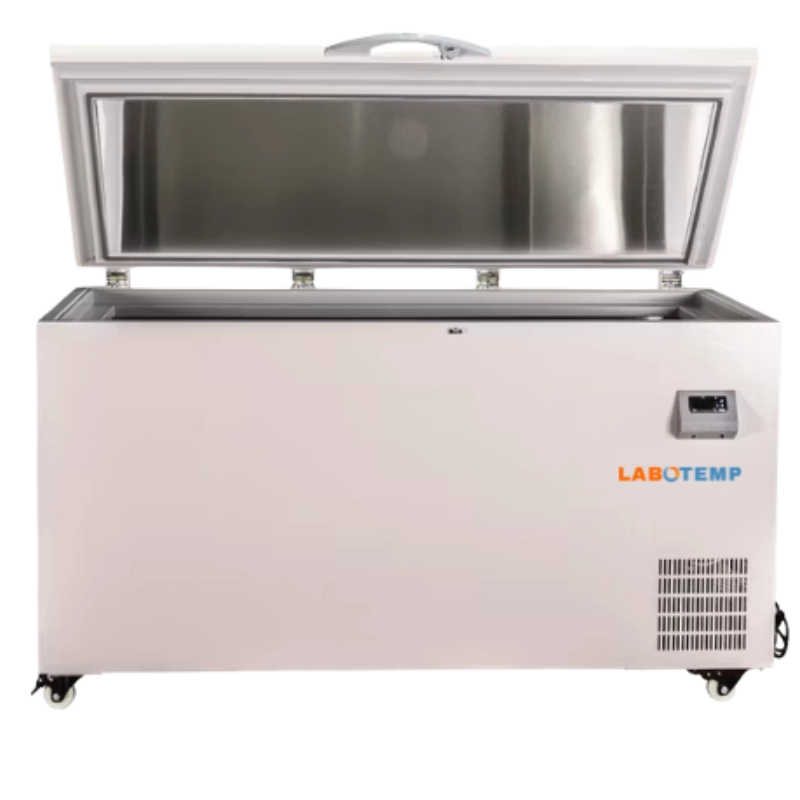

Labotemp Laboratory Freezer LDF-09 is a high-performance Laboratory Freezer designed for reliable low-temperature storage in laboratories, hospitals, and research facilities. With an adjustable temperature range of -25°C to -60°C and a 320L capacity, it ensures stable preservation of biological samples, reagents, vaccines, enzymes, and pharmaceutical products. The stainless steel 304 interior provides a hygienic and corrosion-resistant storage environment, while 100 mm insulation enhances thermal stability and minimizes temperature fluctuations during continuous operation.
Engineered for consistent performance, this Lab Freezer integrates a SECOP compressor with a single refrigeration system for efficient and uniform cooling. The electronic temperature control with digital display and PTC probe ensures precise monitoring, while Germany EBM condenser fans improve airflow and cooling efficiency. Built-in audible and visual alarms enhance safety by alerting users to temperature deviations. Designed as a dependable laboratory fridge freezer, it offers easy mobility with castors and long-term reliability for demanding laboratory applications.
Why choose Labotemp LDF-09 Laboratory Freezer?
✓ Versatile Small Lab Freezer Option: 320L capacity supports medium-scale laboratory storage
✓ Reliable Lab Freezer Performance: Stable cooling ensures consistent sample preservation
✓ Durable Laboratory Fridge Freezer Design: Built for long-term laboratory use and efficiency
|
Model : LDF-09 Model |
LDF-09 |
|
Capacity : 320L Capacity |
320L |
|
Temperature range : -25°C to -60°C, adjustable Temperature range |
-25°C to -60°C, adjustable |
|
Compressor : SECOP Compressor |
SECOP |
|
Voltage : 220V/50Hz / 110v 60Hz Voltage |
220V/50Hz / 110v 60Hz |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input Power : 480W Input Power |
480W |
|
Power consumption : 7.0 kkw.h/24h Power consumption |
7.0 kkw.h/24h |
|
Refrigerant : Fluorine Free Environmental Protection Refrigerant Refrigerant |
Fluorine Free Environmental Protection Refrigerant |
|
Temperature Control : Electronic Temperature Control Temperature Control |
Electronic Temperature Control |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigeration system : Single compressor independent refrigeration system Refrigeration system |
Single compressor independent refrigeration system |
|
Temperature display : Digital data display Temperature display |
Digital data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : Germany brand EBM Condenser fans |
Germany brand EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
Net weight / gross weight : 126/170kg Net weight / gross weight |
126/170kg |
|
External dimensions : 1530*765*885mm External dimensions |
1530*765*885mm |
|
Internal dimensions : 1330*470*600mm Internal dimensions |
1330*470*600mm |
|
Package size : 1590*825*1020mm Package size |
1590*825*1020mm |
