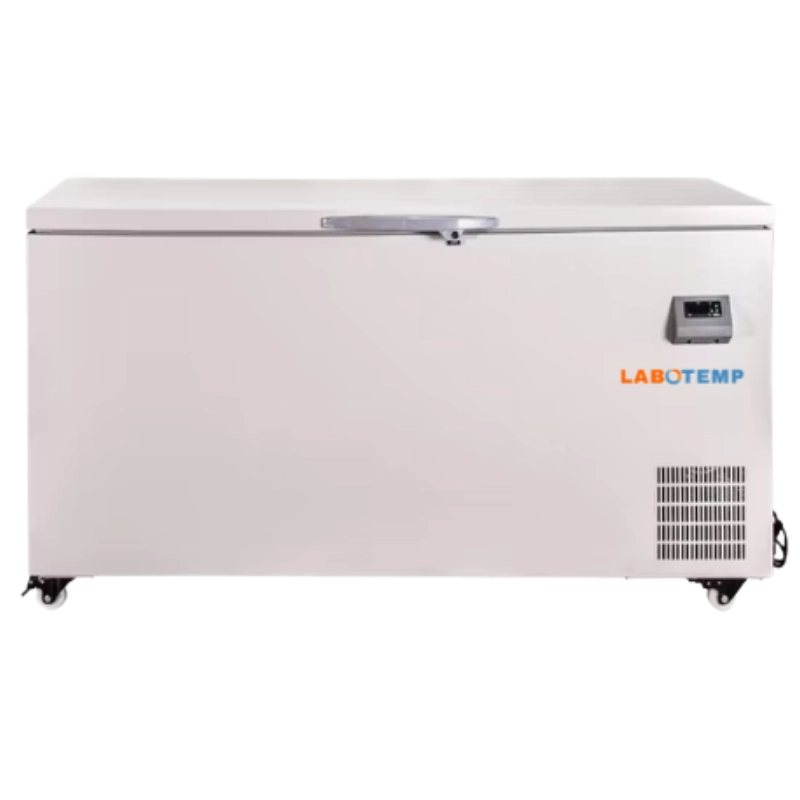

Labotemp Laboratory Freezer LDF-04 is a high-capacity Laboratory Freezer designed for reliable and stable storage of temperature-sensitive materials in laboratories, hospitals, and research facilities. With an adjustable temperature range of -10°C to -40°C, it ensures consistent cooling for preserving biological samples, reagents, vaccines, and pharmaceutical products. The spacious 320L stainless steel chamber provides a hygienic and corrosion-resistant storage environment, making it suitable for laboratories handling larger sample volumes and continuous storage requirements.
Built for dependable performance, this Lab Freezer features a high-efficiency SECOP compressor combined with a single compressor refrigeration system to deliver uniform cooling. The electronic temperature control system with digital display and PTC probe ensures accurate monitoring and stable operation. Enhanced with 100 mm insulation and Germany EBM condenser fans, the unit minimizes temperature fluctuations while improving energy efficiency. Audible and visual alarm systems provide added safety, ensuring secure storage of valuable samples during long operating cycles.
Why choose Labotemp LDF-04 Laboratory Freezer?
✓ Reliable Laboratory Fridge Freezer Performance: Stable temperature control for consistent preservation
✓ Secure Small Laboratory Freezer Operation: Integrated alarms ensure safe sample storage
✓ Durable Lab Freezer Design: Built for long-term reliability and continuous laboratory use
|
Model : LDF-04 Model |
LDF-04 |
|
Capacity : 320L Capacity |
320L |
|
Temperature range : -10°C to -40°C, adjustable Temperature range |
-10°C to -40°C, adjustable |
|
Compressor : SECOP Compressor |
SECOP |
|
Voltage : 220V/50Hz,110v60hz Voltage |
220V/50Hz,110v60hz |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input Power : 460W Input Power |
460W |
|
Power consumption : 5.7kw.h/24h Power consumption |
5.7kw.h/24h |
|
Refrigerant : Fluorine Free Environmental Protection Refrigerant Refrigerant |
Fluorine Free Environmental Protection Refrigerant |
|
Temperature Control : Electronic Temperature Control Temperature Control |
Electronic Temperature Control |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature display : Digital data display Temperature display |
Digital data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : Germany brand EBM Condenser fans |
Germany brand EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
Net weight / gross weight : 126/170kg Net weight / gross weight |
126/170kg |
|
External dimensions : 1530*765*885mm External dimensions |
1530*765*885mm |
|
Internal dimensions : 1330*470*595mm Internal dimensions |
1330*470*595mm |
|
Package size : 1600*835*1055mm Package size |
1600*835*1055mm |
