Labotemp Floor Standing Low-Speed Refrigerated Centrifuge LRC-107 is designed for high-volume blood processing and routine clinical laboratory workflows. Operating at speeds up to 6000 rpm with a maximum RCF of 6880 × g, this system provides reliable separation of plasma, red blood cells, and other biological components. With a large capacity of 6 × 1200 ml or 6 × 500 ml blood bags, it functions effectively as a blood bank refrigerated centrifuge for hospitals, transfusion centers, and diagnostic laboratories handling bulk blood sample processing. The integrated cooling system maintains a temperature range of -20°C to 40°C with ±1°C accuracy, ensuring stable conditions for temperature-sensitive samples during centrifugation.

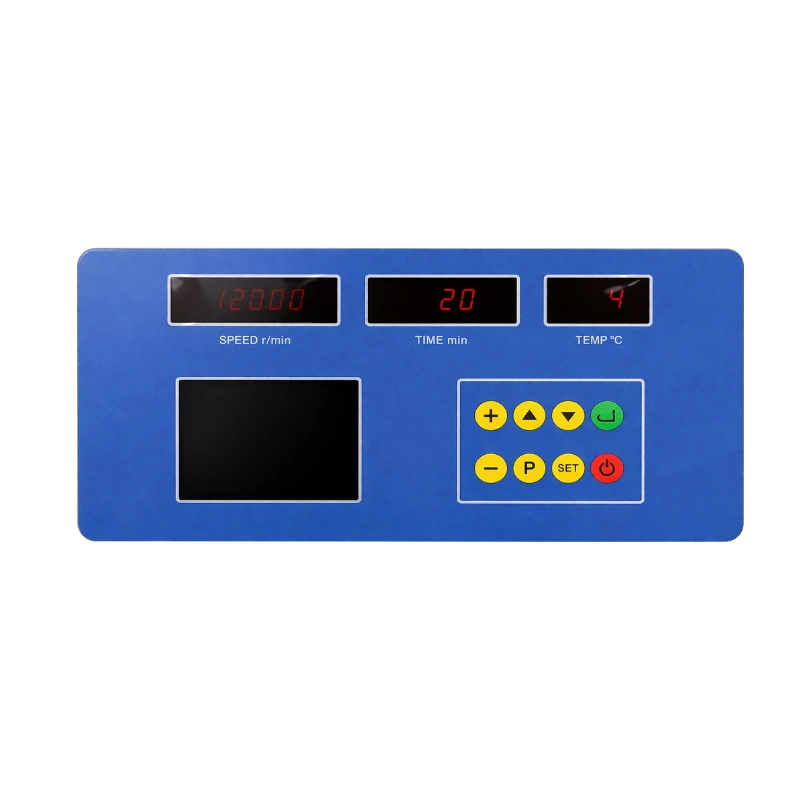

Engineered for continuous laboratory use, the centrifuge features an AC variable frequency motor drive and microprocessor control system that deliver stable speed regulation and smooth operation. The LCD interface allows precise adjustment of speed, time, and acceleration or deceleration profiles to support different blood processing protocols.
Why Choose Labotemp Floor Standing Refrigerated Centrifuge LRC-107?
✓ Compliance & Trust: ISO 13485:2016 certified and CE marked
✓ Stable Cooling Performance: Maintains -20°C to 40°C temperature control to protect temperature-sensitive samples
✓ Reliable Laboratory Manufacturing: Labotemp designs centrifuges focused on durability, precision separation, and long operational life
|
Maximum Capacity : 6 × 1200 ml / 6 pcs 500 ml blood bags Maximum Capacity |
6 × 1200 ml / 6 pcs 500 ml blood bags |
|
Maximum Speed : 6000 rpm Maximum Speed |
6000 rpm |
|
Maximum RCF : 6880 × g Maximum RCF |
6880 × g |
|
Temperature Range : -20°C to +40°C Temperature Range |
-20°C to +40°C |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Voltage : AC 220V, 50 Hz Voltage |
AC 220V, 50 Hz |
|
Power : 1.5 kW Power |
1.5 kW |
|
Current : 30 A Current |
30 A |
|
Control System : Microprocessor control Control System |
Microprocessor control |
|
Display : LCD display Display |
LCD display |
|
Timer Range : 0 – 99 h 59 min adjustable Timer Range |
0 – 99 h 59 min adjustable |
|
Acceleration / Deceleration : 12 / 12 levels Acceleration / Deceleration |
12 / 12 levels |
|
Speed Accuracy : ±20 r/min Speed Accuracy |
±20 r/min |
|
Daily Program Storage : 30 programs Daily Program Storage |
30 programs |
|
Motor Type : AC variable frequency motor drive Motor Type |
AC variable frequency motor drive |
|
Noise Level : ≤58 dB(A) Noise Level |
≤58 dB(A) |
|
Dimensions (L×W×H) : 840 × 730 × 1220 mm Dimensions (L×W×H) |
840 × 730 × 1220 mm |
|
Net Weight : 190 kg Net Weight |
190 kg |
|
Gross Weight : 260kg Gross Weight |
260kg |
|
Package Size : 920x780x1090mm Package Size |
920x780x1090mm |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Fixed Angle Rotor | 6 × 500 ml | 6000 r/min | 6880 × g | PP / PC Tubes |
| 2 | Swing Rotor | 6 × 1200 ml | 4200 r/min | 5600 × g | Oval Cup |
| 3 | Swing Rotor | 6 × 1000 ml | 4200 r/min | 5600 × g | Round Cup |
| 4 | Swing Rotor | 4 × 1500 ml | 4200 r/min | 5600 × g | Oval Cup |
