Labotemp Floor Standing Refrigerated Centrifuge LRC-104 is also a blood centrifuge engineered for laboratories that require extremely high centrifugal force and stable temperature control for sensitive biological samples. With a maximum capacity of 4 × 1000 ml, it supports high-volume sample processing in hospitals, blood banks, pharmaceutical laboratories, biotechnology research facilities, and university laboratories. Multiple rotor options support different tube formats, enabling flexibility for clinical diagnostics, molecular biology, and cell culture research, enabling efficient separation of plasma, proteins, enzymes, nucleic acids, and other biomolecules.
Designed for demanding laboratory workflows, this refrigerated centrifuge machine integrates an advanced CPU-controlled system with touch LCD display, allowing precise adjustment of speed, timer, RCF, and acceleration/deceleration profiles. Safety is reinforced through automatic RFID rotor identification, imbalance detection with automatic shutdown, motorized lid locking, and over-speed protection, ensuring stable and secure centrifugation.
Why Choose Labotemp Floor Standing Refrigerated Centrifuge LRC-104
✓ Ultra-High Centrifugal Force: Up to 64,800 × g RCF for advanced molecular biology and pharmaceutical research applications
✓ Designed by a Centrifuge Manufacturer: Labotemp develops centrifuges engineered for precision separation and long-term laboratory reliability
✓ Advanced Operational Safety: Automatic rotor identification, imbalance protection, and secure lid locking for safe high-speed operation
|
Maximum Capacity : 4 × 1000 ml Maximum Capacity |
4 × 1000 ml |
|
Maximum Speed : 25000 rpm Maximum Speed |
25000 rpm |
|
Maximum RCF : 64800 × g Maximum RCF |
64800 × g |
|
Temperature Range : -20°C to +40°C Temperature Range |
-20°C to +40°C |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Refrigerant : R-22 Refrigerant |
R-22 |
|
Power Supply : AC 220V, 50 Hz, 30 A Power Supply |
AC 220V, 50 Hz, 30 A |
|
Control System : Advanced CPU control system Control System |
Advanced CPU control system |
|

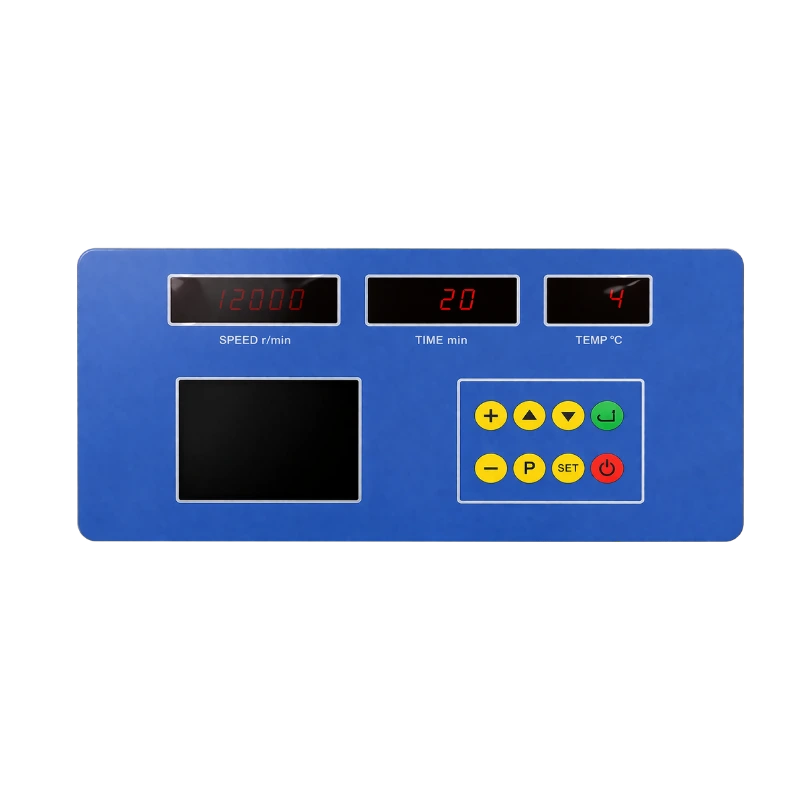

Display : Touch LCD color digital screen Display |
Touch LCD color digital screen |
|
Timer Range : 1 – 99 min 59 sec Timer Range |
1 – 99 min 59 sec |
|
Acceleration / Deceleration : 10 levels Acceleration / Deceleration |
10 levels |
|
Motor Type : AC frequency conversion motor, direct drive Motor Type |
AC frequency conversion motor, direct drive |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Noise Level : ≤60 dB(A) Noise Level |
≤60 dB(A) |
|
Net Weight : 250 kg Net Weight |
250 kg |
|
Gross Weight : 280 kg Gross Weight |
280 kg |
|
Dimensions (L×W×H) : 860 × 730 × 1200 mm Dimensions (L×W×H) |
860 × 730 × 1200 mm |
|
Packing Size (L×W×H) : 920 × 790 × 1700 mm Packing Size (L×W×H) |
920 × 790 × 1700 mm |
| Serial Number | Rotor Type | Capacity | Max. Speed | Max. RCF | Note |
|---|---|---|---|---|---|
| 1 | Fixed Angle Rotor | 24 × 1.5 ml | 25,000 rpm | 64,800 × g | PP/PC tube |
| 2 | Fixed Angle Rotor | 16 × 10 ml | 23,000 rpm | 56,880 × g | PP/PC tube |
| 3 | Fixed Angle Rotor | 12 × 15 ml | 18,000 rpm | 36,220 × g | PP/PC tube |
| 4 | Fixed Angle Rotor | 8 × 50 ml | 21,000 rpm | 52,360 × g | PP/PC tube |
| 5 | Fixed Angle Rotor | 6 × 100 ml | 18,000 rpm | 38,460 × g | PP/PC tube |
| 6 | Fixed Angle Rotor (with Adapter) | 6 × 250 ml (Adapter: 6 × 50 ml) | 12,000 rpm | 22,500 × g | PP/PC tube |
| 7 | Fixed Angle Rotor | 6 × 500 ml | 10,000 rpm | 18,000 × g | PP/PC tube |
| 8 | Fixed Angle Rotor | 4 × 1000 ml | 8,000 rpm | 12,000 × g | PP/PC tube |
