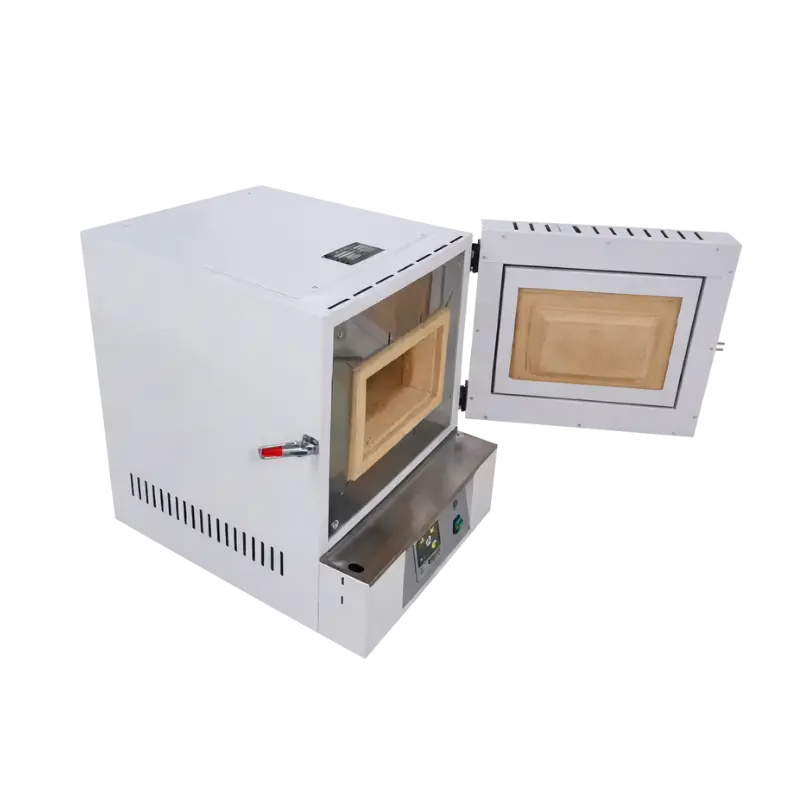

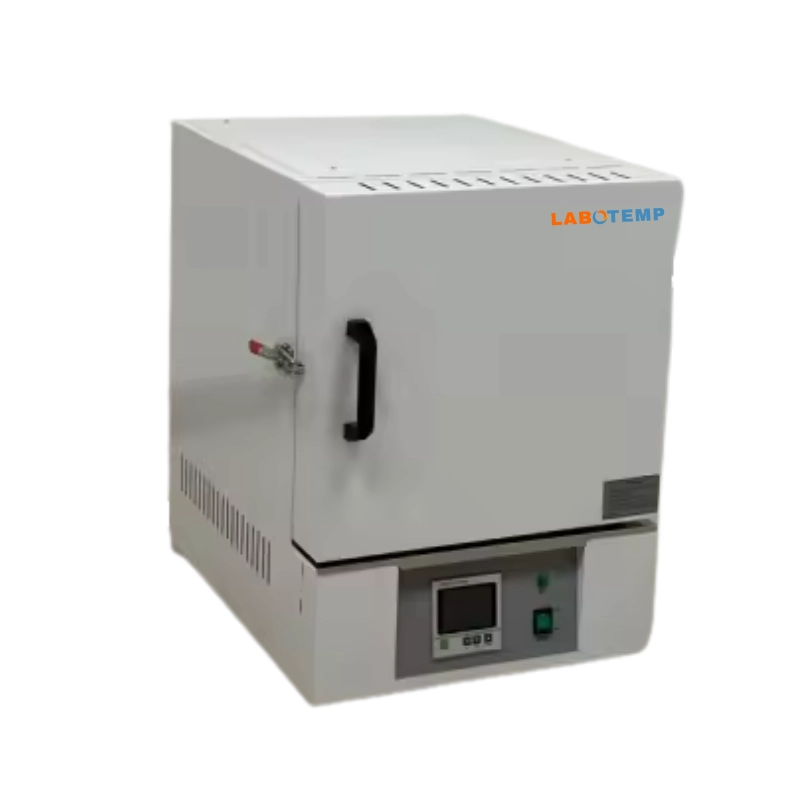

Labotemp Muffle Furnace FMU-03 is an ISO & CE-certified electric muffle furnace designed for reliable laboratory heating up to 1000°C. This 16 L lab muffle furnace features an aluminum-silicate insulated chamber with four-sided heating for uniform temperature distribution. A digital double-row PID controller with K-type thermocouple ensures precise control with 1°C resolution and ±5% stability. With 8 kW rated power, FMU-03 reaches 1000°C in approximately 75 minutes, delivering fast and energy-efficient performance.
Ideal for ashing, calcination, sintering and heat treatment, this high-efficiency furnace is suitable for research, quality control and industrial laboratories. Manufactured by Labotemp, a trusted muffle furnace manufacturer and laboratory furnace supplier, FMU-03 offers durable construction, low maintenance and dependable daily operation.
Why choose Muffle Furnace FMU-03?
✓ Certified Quality: ISO & CE compliant laboratory furnace
✓ Precise Digital Control: PID controller with K-type sensor (±5%, 1°C)
✓ Fast & Powerful Heating: 8 kW power, ~75 min to 1000°C
✓ Uniform Temperature: Four-sided heating for reproducible results
|
Maximum Temperature : 1000°C Maximum Temperature |
1000°C |
|
Chamber Volume : 16 L Chamber Volume |
16 L |
|
Rated Power : 8 kW Rated Power |
8 kW |
|
Time from Room Temp. to Max Temp. (min) : 75 Time from Room Temp. to Max Temp. (min) |
75 |
|
Heating Mode : Automatic constant temperature Heating Mode |
Automatic constant temperature |
|
Heating Type : Four-sided heating Heating Type |
Four-sided heating |
|
Exhaust Port : Ø30 mm × 1 Exhaust Port |
Ø30 mm × 1 |
|
Furnace Body Material : Aluminum silicate Furnace Body Material |
Aluminum silicate |
|
Heater Material : Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) Heater Material |
Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
|
Temperature Fluctuation : ±5% Temperature Fluctuation |
±5% |
|
Temperature Control Mode : Digital tube double-row PID Temperature Control Mode |
Digital tube double-row PID |
|
Temperature Setting Mode : Touch four keys Temperature Setting Mode |
Touch four keys |
|
Sensor Type : K-type thermocouple Sensor Type |
K-type thermocouple |
|
Power Supply / Rated Current : AC380V 50Hz / 12A Power Supply / Rated Current |
AC380V 50Hz / 12A |
|
Studio Size (mm) : 250×400×160 Studio Size (mm) |
250×400×160 |
|
Temperature Resolution : 1°C Temperature Resolution |
1°C |
|
Packing dimension (mm) : 870 x 690 x 950 Packing dimension (mm) |
870 x 690 x 950 |
|
Overall Dimension (mm) : 750x580x800 Overall Dimension (mm) |
750x580x800 |
|
Net weight : 145 kg Net weight |
145 kg |
|
Gross weight : 180 kg Gross weight |
180 kg |
