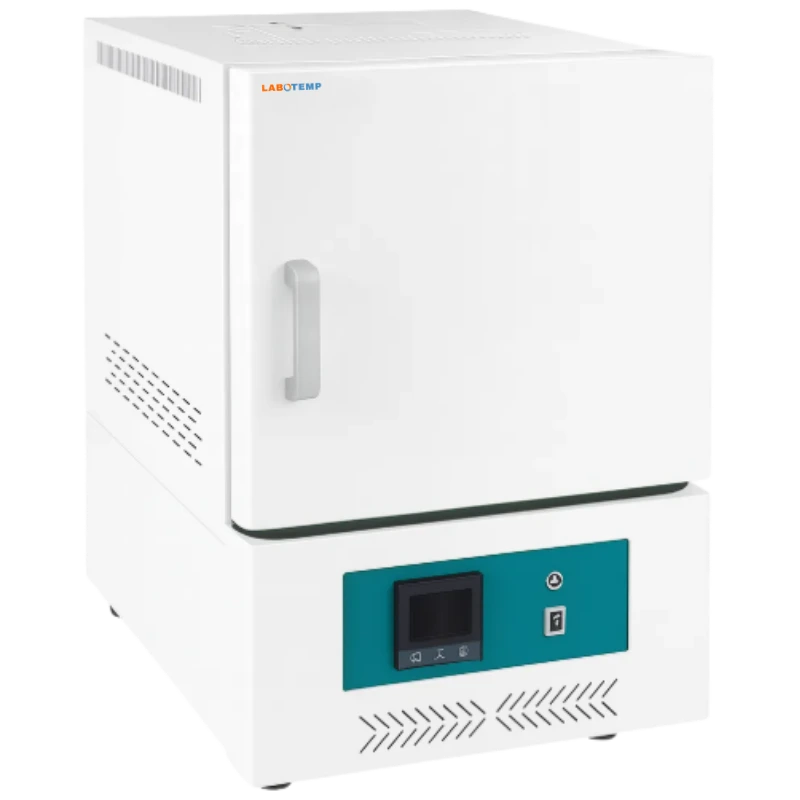

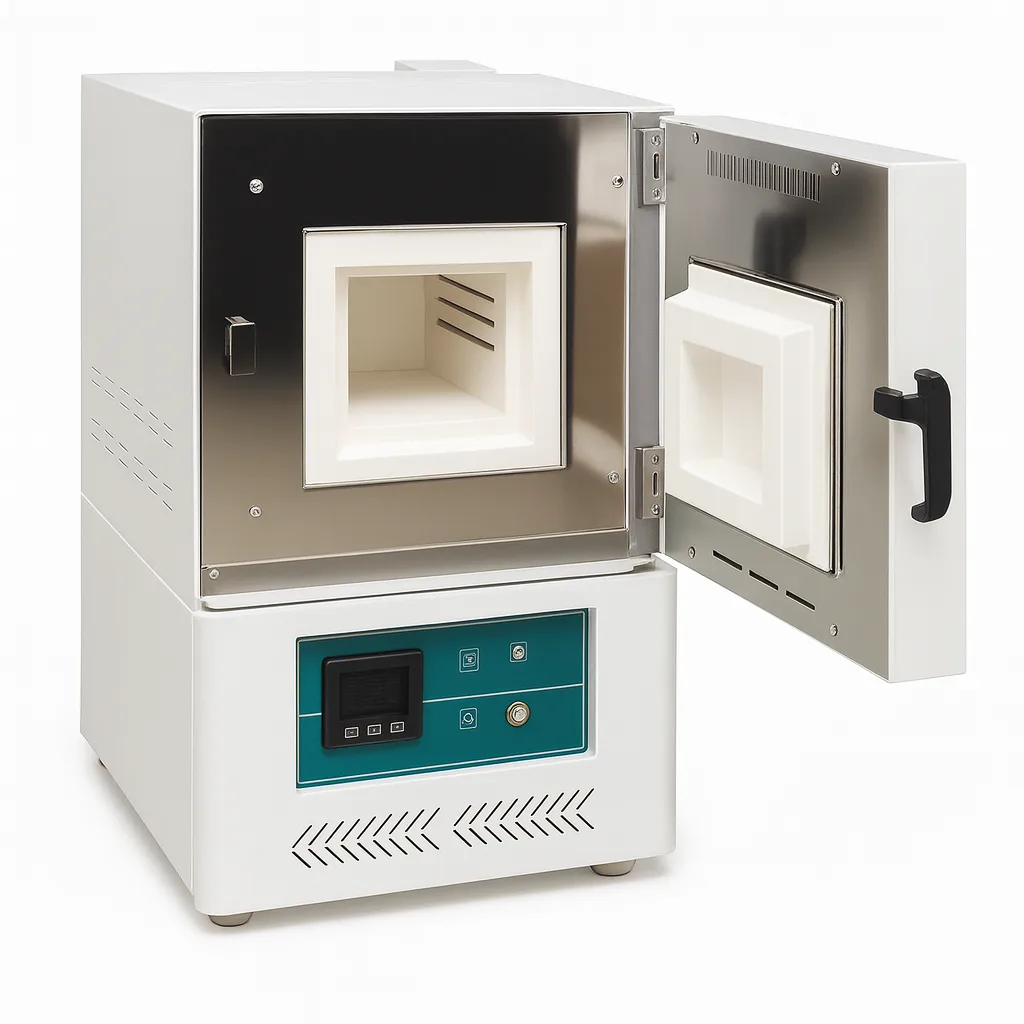

Labotemp Muffle Furnace FMU-08 is an ISO & CE-certified high-temperature electric muffle furnace engineered for demanding laboratory and industrial use up to 1600°C (1500°C continuous). The 12 L lab muffle furnace combines a polycrystalline mullite fiber chamber, alumina-fiber insulation and a cold-rolled steel shell with a powerful MoSi₂ rod heating system for rapid heat-up (<40 min) and excellent temperature uniformity. An advanced 7″ touchscreen programmable PID controller with S-type sensor delivers 1°C resolution and ±1°C accuracy for repeatable thermal processes.
Designed as a high-efficiency furnace for ceramic sintering, material testing, crystal growth, metal annealing, ashing and heat treatment, FMU-08 offers programmable cycles, real-time curve display and robust safety protections. As a trusted furnace manufacturer and supplier, Labotemp provides technical documentation and support to integrate this digital muffle furnace into research institutes, universities and industrial R&D environments.
Why choose Muffle Furnace FMU-08?
✓ Rapid & Uniform Heating: MoSi₂ rods, <40 min rise.
✓ High Efficiency & Durability: mullite chamber, alumina insulation.
✓ Safe & Programmable: multi-segment programs and protections.
|
Model NO. : FMU-08 Model NO. |
FMU-08 |
|
Volume : 12L Volume |
12L |
|
Temperature Range : 1600℃ (1500℃ continuous) Temperature Range |
1600℃ (1500℃ continuous) |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Current Rating : AC 380V Current Rating |
AC 380V |
|
Power Rating : 10kW Power Rating |
10kW |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : Polycrystalline Mullite fiber Chamber Material |
Polycrystalline Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : Alumina fiber Insulation Layer |
Alumina fiber |
|
Heater : MoSi₂ Rod Heater |
MoSi₂ Rod |
|
Exhaust Hole : ODφ22 IDφ18 Exhaust Hole |
ODφ22 IDφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temp or program Operation Function |
Constant temp or program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; correction |
|
Sensor : S-type Sensor |
S-type |
|
Safety Device : Overtemperature; leakage; door-opening protection Safety Device |
Overtemperature; leakage; door-opening protection |
|
Chamber Size (mm) : 300×200×200 Chamber Size (mm) |
300×200×200 |
|
Exterior Size (mm) : 750×865×1150 Exterior Size (mm) |
750×865×1150 |
|
Packing Size (mm) : 910×1045×1360 Packing Size (mm) |
910×1045×1360 |
|
NW/GW (kg) : 150/170 NW/GW (kg) |
150/170 |
|
Optional Type : Air inlet Optional Type |
Air inlet |
