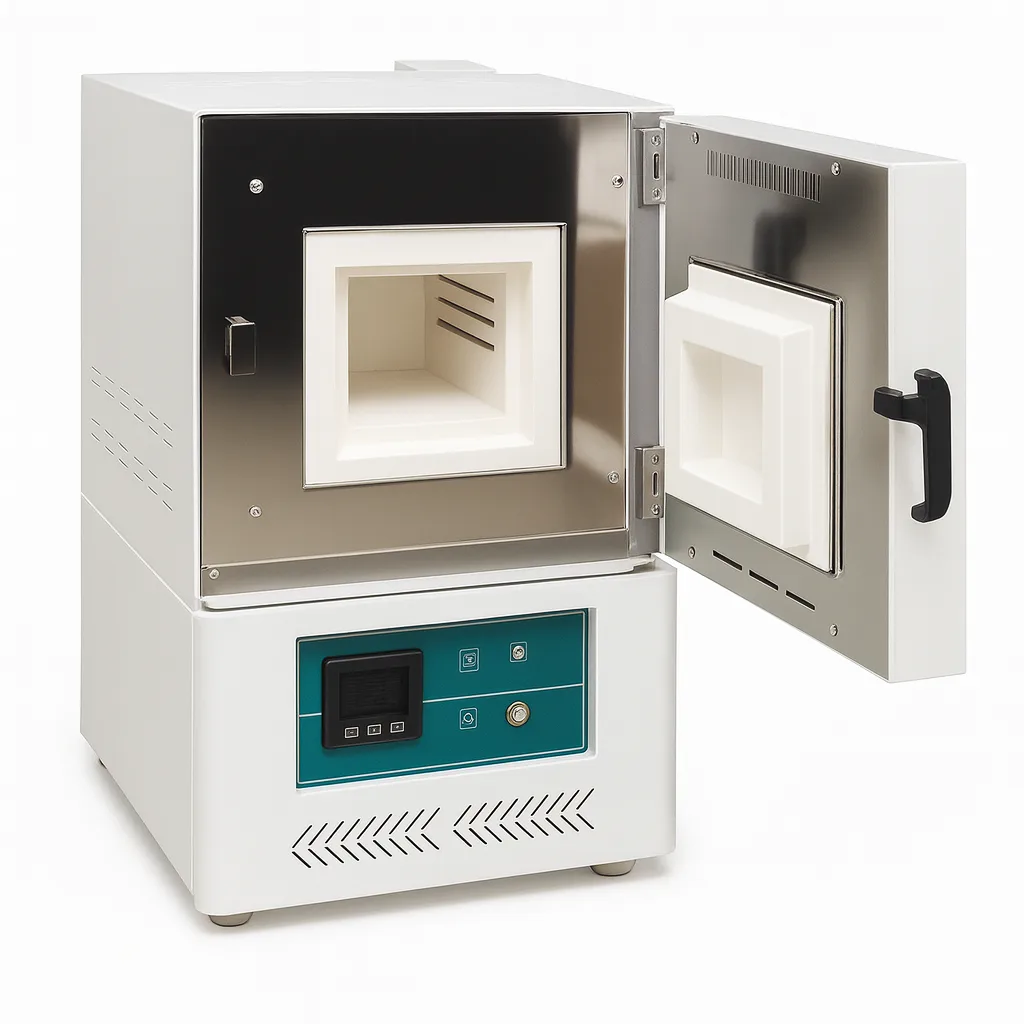

Labotemp Muffle Furnace FMU-14 is an ISO & CE-certified high-capacity electric muffle furnace designed for precision high-temperature laboratory and industrial processing up to 1700°C. This 36 L lab muffle furnace features an HHR polycrystalline mullite-fiber chamber, high-temperature alumina insulation and a cold-rolled steel outer shell, ensuring excellent thermal stability, low heat loss and long service life.
As a high-efficiency furnace for ceramic sintering, crystal growth, metallurgy, annealing, thermal analysis and large-scale heat treatment, FMU-14 is equipped with a modern 7″ touchscreen PID controller, programmable cycles, real-time temperature display and advanced safety protections including over-temperature, leakage and door-opening cut-off. Designed for research institutes, industrial R&D and QC laboratories, this digital muffle furnace offers reliable operation, easy maintenance and reproducible results.
Why choose Muffle Furnace FMU-14?
✓ Certified Quality: ISO & CE compliant laboratory furnace.
✓ Large Capacity & Power: 36 L chamber with industrial-grade heating.
✓ Fast, Uniform Heating: MoSi₂ rods and superior insulation.
✓ Precise Digital Control: 7″ touchscreen PID with programmable cycles.
|
Model NO. : FMU-14 Model NO. |
FMU-14 |
|
Volume : 36 L Volume |
36 L |
|
Temperature Range : 1700℃ Temperature Range |
1700℃ |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Current Rating : AC 380V Current Rating |
AC 380V |
|
Power Rating : 15 kW Power Rating |
15 kW |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : HHR Mullite fiber Chamber Material |
HHR Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : High-temperature alumina fiber Insulation Layer |
High-temperature alumina fiber |
|
Heater : HHR MoSi₂ Rod Heater |
HHR MoSi₂ Rod |
|
Exhaust Hole : Diφ22 Deφ18 Exhaust Hole |
Diφ22 Deφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temperature or program Operation Function |
Constant temperature or program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; correction |
|
Sensor : B-type Thermocouple Sensor |
B-type Thermocouple |
|
Safety Device : Overtemperature alarm, leakage protection, door-opening heating Safety Device |
Overtemperature alarm, leakage protection, door-opening heating |
|
Chamber Size (mm) : 300×400×300 Chamber Size (mm) |
300×400×300 |
|
Exterior Size (mm) : 750×1065×1250 Exterior Size (mm) |
750×1065×1250 |
|
Packing Size (mm) : 910×1265×1460 Packing Size (mm) |
910×1265×1460 |
|
NW/GW (kg) : 270/320 NW/GW (kg) |
270/320 |
|
Optional Type : 485 Communication; USB storage Optional Type |
485 Communication; USB storage |
