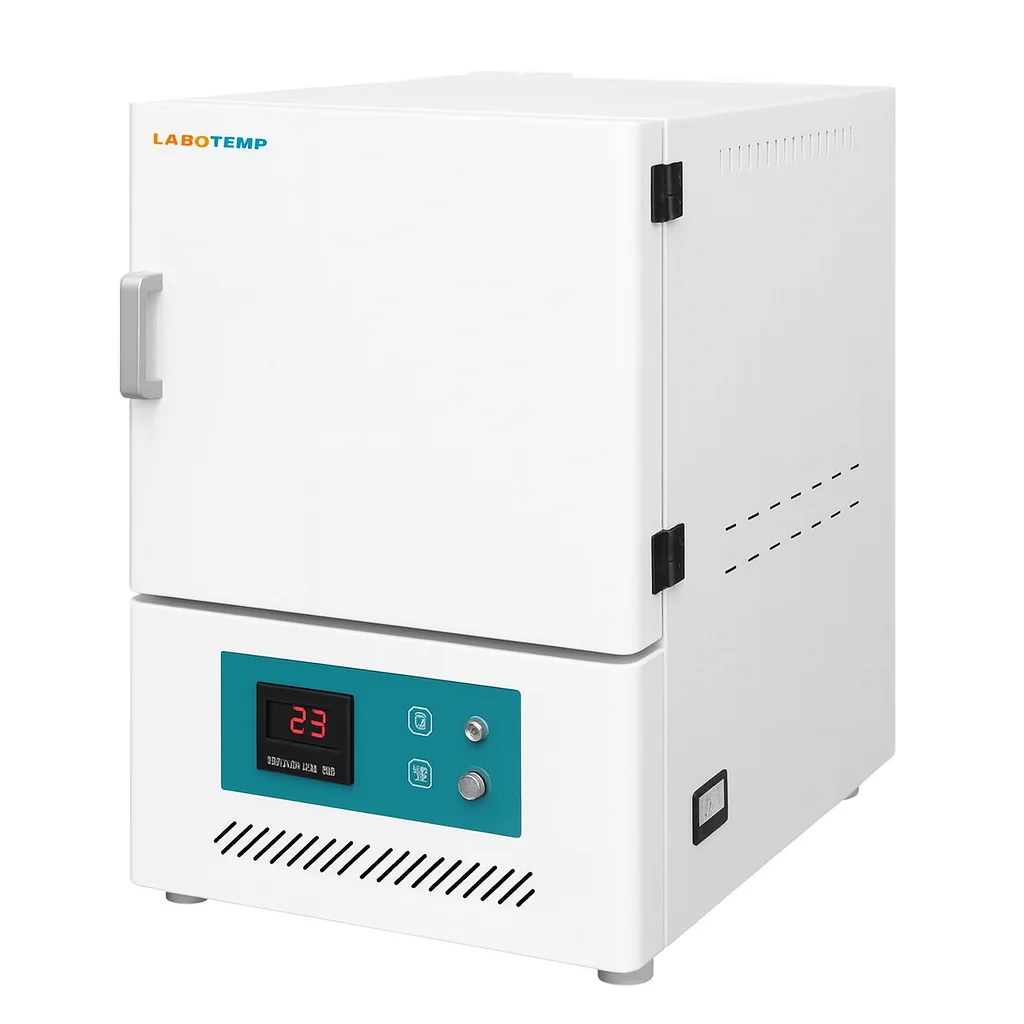

Labotemp Muffle Furnace FMU-11 is an ISO & CE-certified high-temperature muffle furnace engineered for precision laboratory and research use up to 1700°C. This compact benchtop electric muffle furnace combines HHR mullite-fiber chamber construction, high-temp alumina insulation and HHR MoSi₂ rod heating for rapid heat-up (<40 min), excellent uniformity and long service life. The cold-rolled steel shell and advanced 7″ touchscreen programmable PID controller (B-type sensor, 1°C resolution, ±1°C accuracy) deliver repeatable, programmable cycles for demanding thermal workflows.
Ideal as a lab muffle furnace and high-efficiency furnace for ceramic sintering, crystal growth, metal annealing, thermal analysis, ashing and material testing, FMU-11 integrates into university, research and industrial labs. Supplied by an experienced furnace manufacturer and furnace supplier, this digital muffle furnace balances performance, safety, and low maintenance for reliable high-temperature operation.
Why choose Muffle Furnace FMU-11?
✓ Certified reliability: ISO & CE compliance.
✓ Precise digital control: 7″ touchscreen PID, B-type sensor.
✓ Rapid, uniform heating: MoSi₂ rods, <40 min ramp.
✓ Lab-ready support: Documentation and supplier service.
|
Model NO. : FMU-11 Model NO. |
FMU-11 |
|
Volume : 4 L Volume |
4 L |
|
Temperature Range : 1700℃ Temperature Range |
1700℃ |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Voltage : AC 220V 50Hz / 240V 60Hz Voltage |
AC 220V 50Hz / 240V 60Hz |
|
Power Rating : 5.5kW Power Rating |
5.5kW |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : HHR Mullite fiber Chamber Material |
HHR Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : High-temp alumina fiber Insulation Layer |
High-temp alumina fiber |
|
Heater : HHR MoSi₂ Rod Heater |
HHR MoSi₂ Rod |
|
Exhaust Hole : Diφ22 Deφ18 Exhaust Hole |
Diφ22 Deφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temp or program Operation Function |
Constant temp or program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; correction |
|
Sensor : B-type Sensor |
B-type |
|
Safety Device : Overtemperature; leakage; door-opening protection Safety Device |
Overtemperature; leakage; door-opening protection |
|
Chamber Size (mm) : 150×150×150 Chamber Size (mm) |
150×150×150 |
|
Exterior Size (mm) : 600×815×1100 Exterior Size (mm) |
600×815×1100 |
|
Packing Size (mm) : 760×985×1310 Packing Size (mm) |
760×985×1310 |
|
NW/GW (kg) : 80/100 NW/GW (kg) |
80/100 |
|
Optional Type : 485 Communication; USB storage Optional Type |
485 Communication; USB storage |
