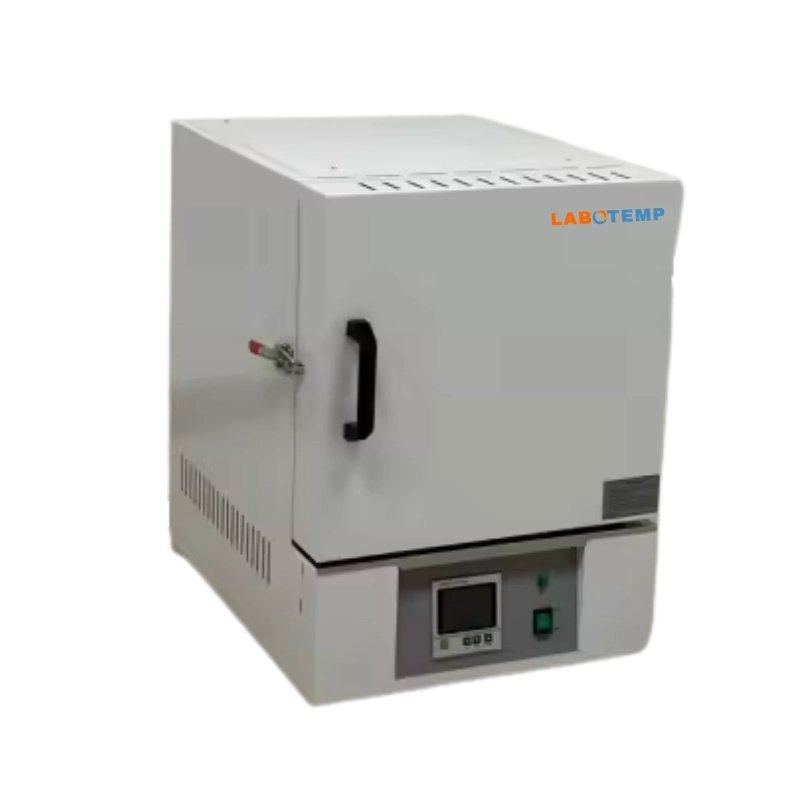

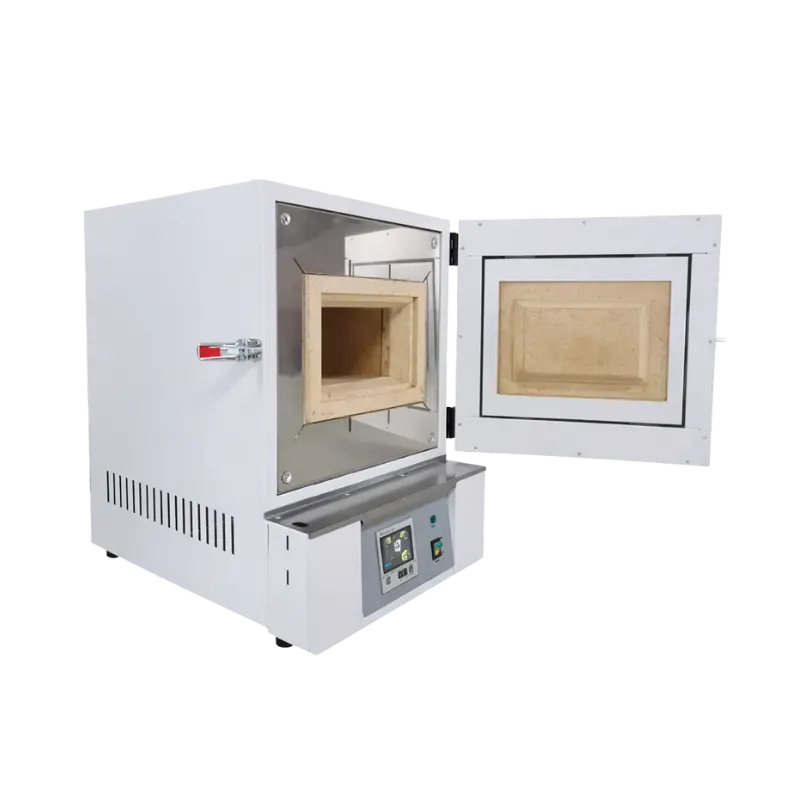

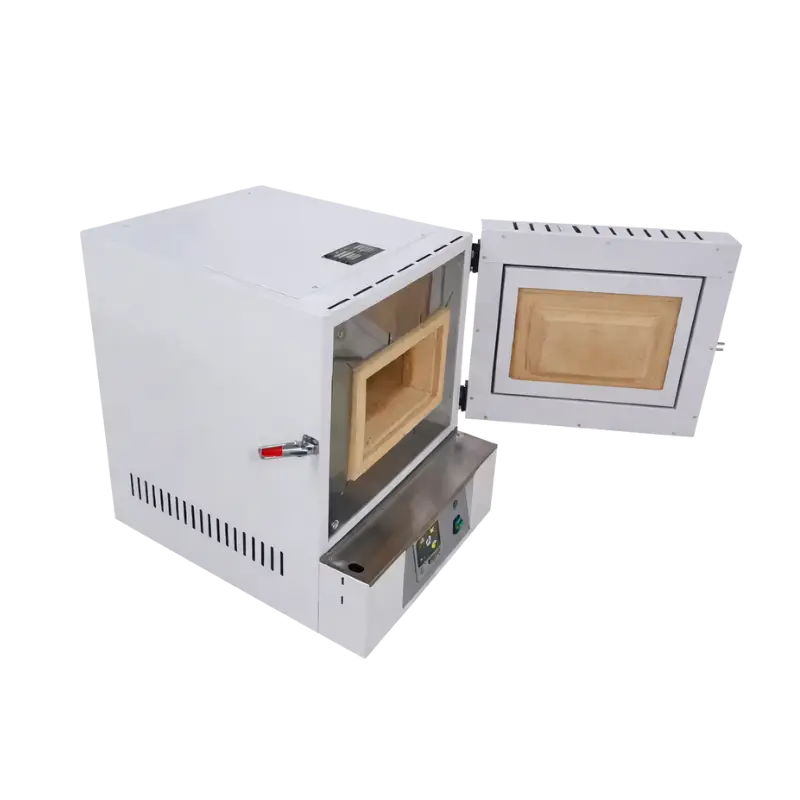

Labotemp Muffle Furnace FMU-04 is an ISO & CE-certified benchtop muffle furnace engineered for precise laboratory heating to 1200°C. This 2 L lab muffle furnace features an aluminum-silicate insulated chamber with four-sided heating for uniform temperature distribution. Digital double-row PID control with K-type thermocouple delivers 1°C resolution and ±5% stability; touch-key setting, automatic constant-temperature mode and an exhaust port ensure safe, repeatable operation.
Designed for ashing, calcination, sintering, heat treatment and thermal analysis, FMU-04 is a compact, low-maintenance high-efficiency furnace ideal for research labs, QC benches and teaching facilities. Manufactured by Labotemp,an established muffle furnace manufacturer and furnace supplier. The unit is backed by technical documentation, compliance certificates and application support to ensure reliable integration and sustained performance.
Why choose Muffle Furnace FMU-04?
✓ Precise Control: Digital PID with K-type sensor (±5%, 1°C).
✓ Uniform Heating: Four-sided design for reproducible results.
✓ Efficient Benchtop: 2 L footprint with optimized 2.5 kW power.
✓ Certified Quality: ISO & CE compliance for lab safety and standards.
|
Maximum Temperature : 1200°C Maximum Temperature |
1200°C |
|
Chamber Volume : 2L Chamber Volume |
2L |
|
Rated Power : 2.5 kW Rated Power |
2.5 kW |
|
Time from Room Temp. to Max Temp. (min) : 80 Time from Room Temp. to Max Temp. (min) |
80 |
|
Heating Mode : Automatic constant temperature Heating Mode |
Automatic constant temperature |
|
Heating Type : Four-sided heating Heating Type |
Four-sided heating |
|
Exhaust Port : Ø30 mm × 1 Exhaust Port |
Ø30 mm × 1 |
|
Furnace Body Material : Aluminum silicate Furnace Body Material |
Aluminum silicate |
|
Heater Material : Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) Heater Material |
Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
|
Temperature Fluctuation : ±5%°C Temperature Fluctuation |
±5%°C |
|
Temperature Control Mode : Digital tube double-row PID Temperature Control Mode |
Digital tube double-row PID |
|
Temperature Setting Mode : Touch four keys Temperature Setting Mode |
Touch four keys |
|
Sensor Type : K-type thermocouple Sensor Type |
K-type thermocouple |
|
Power Supply / Rated Current : AC 220V 110V 60Hz / 11A Power Supply / Rated Current |
AC 220V 110V 60Hz / 11A |
|
Studio Size : 120×200×80mm Studio Size |
120×200×80mm |
|
Temperature Resolution : 1°C Temperature Resolution |
1°C |
|
Packing Dimension : 580×450×670 mm Packing Dimension |
580×450×670 mm |
|
Net Weight : 50kg Net Weight |
50kg |
|
Gross Weight : 60kg Gross Weight |
60kg |
