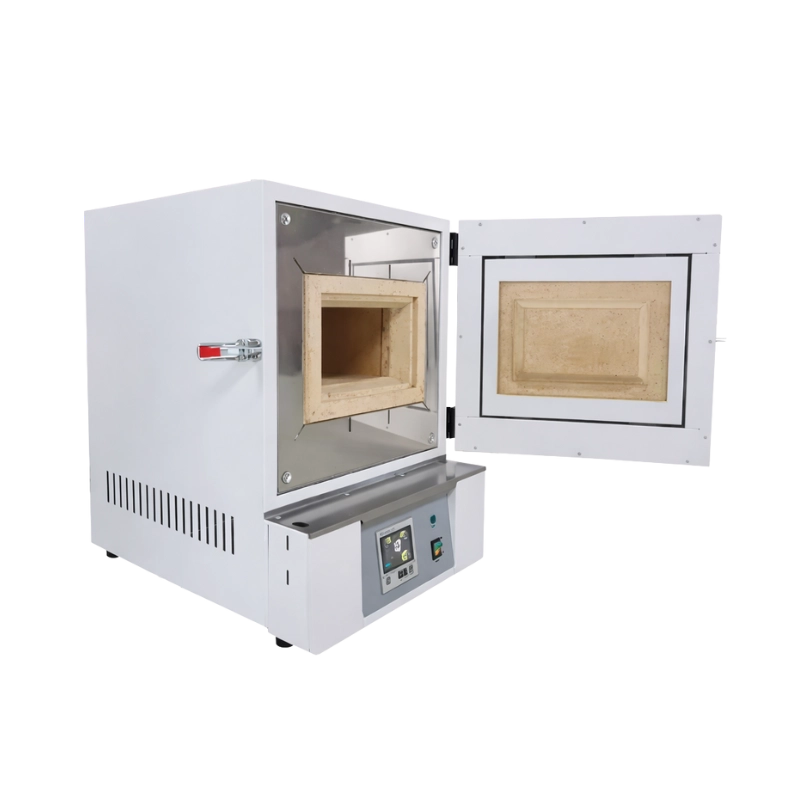

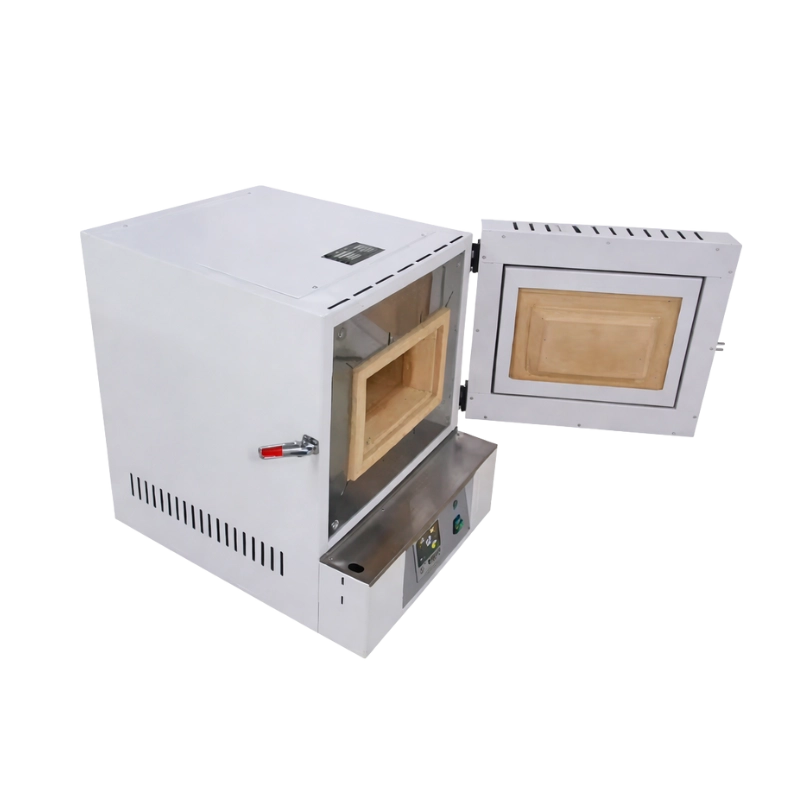

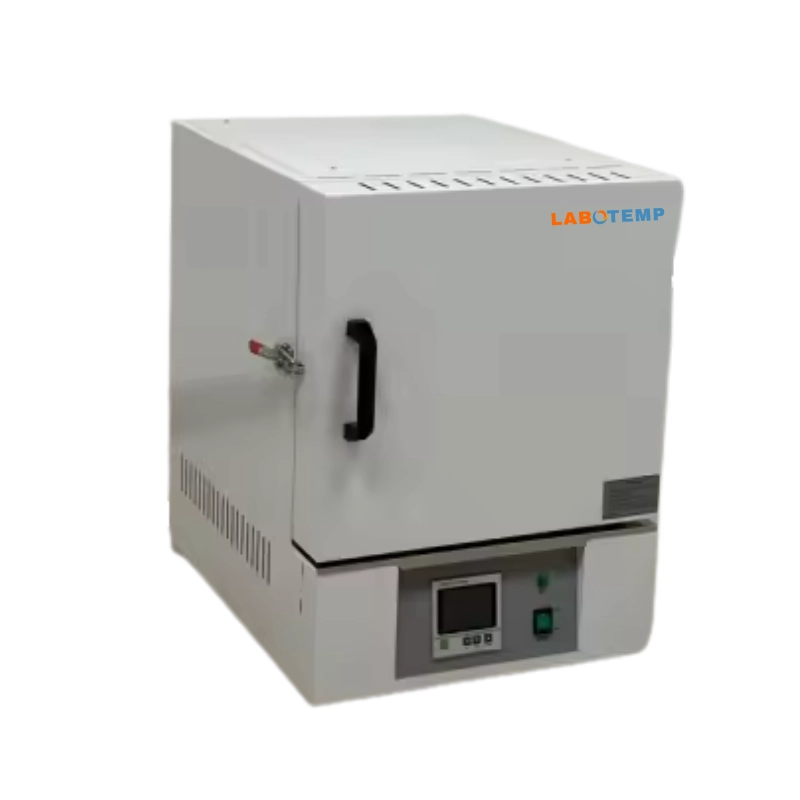

Labotemp Muffle Furnace FMU-01 is an ISO & CE-certified electric muffle furnace engineered for precise laboratory thermal processing. The compact benchtop muffle furnace (2 L) features an aluminum-silicate insulated chamber with four-sided heating to ensure uniform temperature distribution up to 1000°C. Digital double-row PID control, a K-type thermocouple and 1°C resolution deliver repeatable accuracy (±5%), while touch-key setting and an integrated exhaust port simplify operation and ventilation.
Designed by an experienced furnace manufacturer and laboratory furnace supplier, FMU-01 is a high-efficiency furnace built for durability, low maintenance and consistent results in research labs, QC facilities and educational institutions.Designed and manufactured by Labotemp, a leading muffle furnace manufacturer and laboratory furnace supplier, FMU-01 is engineered for consistent performance, high reliability, and long service life in laboratory environments.
Why choose Muffle Furnace FMU-01?
✓ ISO & CE certified: Proven compliance and quality control
✓ Fast, efficient heating: 2.5 kW power, 60 min to 1000°C
✓ Compact benchtop design: Ideal for small lab workflows
|
Maximum Temperature : 1000°C Maximum Temperature |
1000°C |
|
Chamber Volume : 2 L Chamber Volume |
2 L |
|
Rated Power : 2.5 kW Rated Power |
2.5 kW |
|
Time from Room Temp. to Max Temp. (min) : 60 Time from Room Temp. to Max Temp. (min) |
60 |
|
Heating Mode : Automatic constant temperature Heating Mode |
Automatic constant temperature |
|
Heating Type : Four-sided heating Heating Type |
Four-sided heating |
|
Exhaust Port : Ø30 mm × 1 Exhaust Port |
Ø30 mm × 1 |
|
Furnace Body Material : Aluminum silicate Furnace Body Material |
Aluminum silicate |
|
Heater Material : Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) Heater Material |
Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
|
Temperature Fluctuation : ±5%°C Temperature Fluctuation |
±5%°C |
|
Temperature Control Mode : Digital tube double-row PID Temperature Control Mode |
Digital tube double-row PID |
|
Temperature Setting Mode : Touch four keys Temperature Setting Mode |
Touch four keys |
|
Sensor Type : K-type thermocouple Sensor Type |
K-type thermocouple |
|
Power Supply / Rated Current : AC220V 50Hz / 11A Power Supply / Rated Current |
AC220V 50Hz / 11A |
|
Studio Size : 120×200×80mm Studio Size |
120×200×80mm |
|
Temperature Resolution : 1°C Temperature Resolution |
1°C |
|
Packing Dimension : 580×450×670 mm Packing Dimension |
580×450×670 mm |
|
Net Weight : 50kg Net Weight |
50kg |
|
Gross Weight : 60kg Gross Weight |
60kg |
