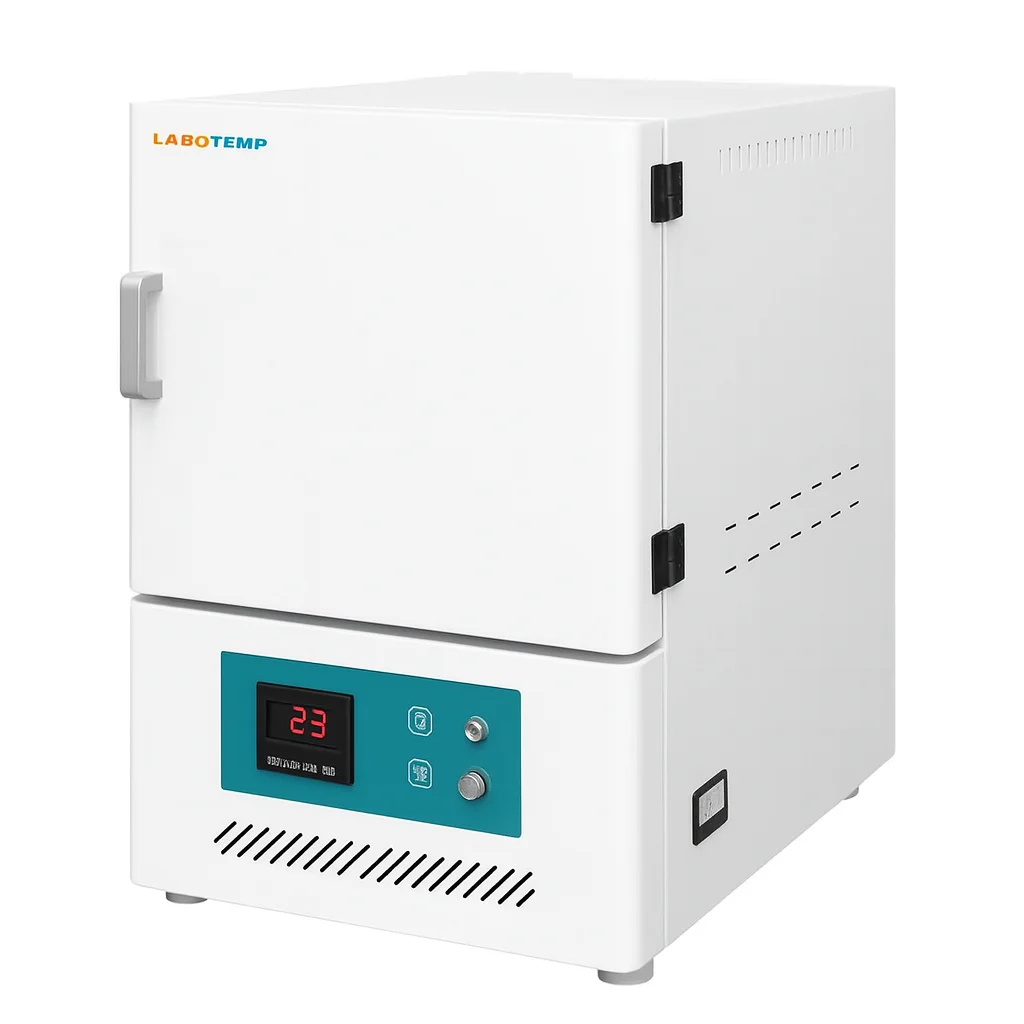

Labotemp Muffle Furnace FMU-13 is a high-temperature muffle furnace engineered for demanding laboratory and industrial thermal processing to 1700°C (1500°C continuous). This 20 L lab muffle furnace combines HHR polycrystalline mullite-fiber chamber, high-temp alumina insulation and a robust HHR MoSi₂ rod heating system for rapid heat-up (<40 min), excellent uniformity and durable performance.
Designed as a high-efficiency furnace for ceramic sintering, metallurgy, crystal growth, annealing, thermal analysis and material testing, FMU-13 suits universities, R&D centres and industrial labs. Built for low maintenance and safe operation (over-temp, leakage, door cut-off), it integrates easily into lab workflows and is supported by Labotemp as an experienced furnace manufacturer and furnace supplier.
Why choose Muffle Furnace FMU-13?
✓ Fast, uniform heating: MoSi₂ rods; <40 min to temperature.
✓ Large-capacity lab furnace: 20 L for higher throughput.
✓ High-efficiency construction: Mullite chamber + alumina insulation.
✓ Safe & Programmable: Multi-stage programs and safety protections.
|
Model NO. : FMU-13 Model NO. |
FMU-13 |
|
Volume : 20 L Volume |
20 L |
|
Temperature Range : 1700℃ Temperature Range |
1700℃ |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Current Rating : AC 380V Current Rating |
AC 380V |
|
Power Rating : 12 kW Power Rating |
12 kW |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : HHR Mullite fiber Chamber Material |
HHR Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : High-temperature alumina fiber Insulation Layer |
High-temperature alumina fiber |
|
Heater : HHR MoSi₂ Rod Heater |
HHR MoSi₂ Rod |
|
Exhaust Hole : Diφ22 Deφ18 Exhaust Hole |
Diφ22 Deφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temp or program Operation Function |
Constant temp or program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; correction |
|
Sensor : B-type Sensor |
B-type |
|
Safety Device : Overtemperature; leakage; door-opening protection Safety Device |
Overtemperature; leakage; door-opening protection |
|
Chamber Size (mm) : 300×260×260 Chamber Size (mm) |
300×260×260 |
|
Exterior Size (mm) : 750×925×1210 Exterior Size (mm) |
750×925×1210 |
|
Packing Size (mm) : 910×1105×1420 Packing Size (mm) |
910×1105×1420 |
|
NW/GW (kg) : 175/195 NW/GW (kg) |
175/195 |
|
Optional Type : 485 Communication; USB storage Optional Type |
485 Communication; USB storage |
