Muffle Furnace FMU-03B

Name: Muffle Furnace FMU-03B
Brand: Labotemp
SKU: FMU-03B
Price: 18404.00 USD
Availability: InStock
Rating: 4.8 (824 reviews)

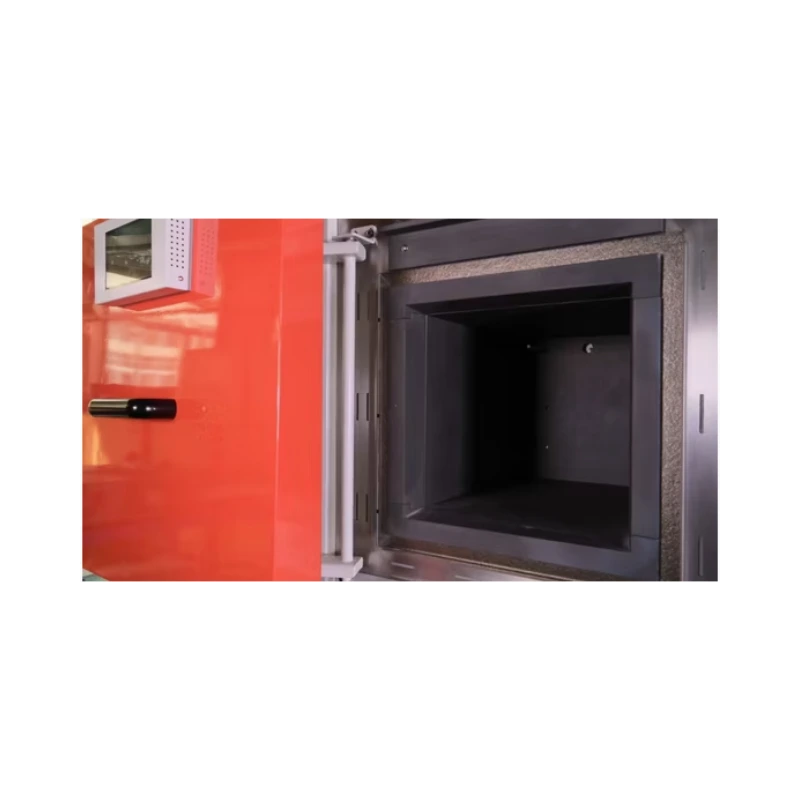

Labotemp Muffle Furnace-03B is a compact and reliable laboratory furnace designed for high-temperature applications up to 1000°C. As a precision lab muffle furnace, it is ideal for material testing, ash analysis, sintering, and heat treatment in laboratories and industrial settings. Featuring a 7L chamber, silicon carbide insulation, and nickel-chromium heating elements, this high efficiency furnace ensures uniform heat distribution and stable thermal performance. The PID control system with ±5°C accuracy and 1°C resolution enables precise and repeatable temperature control for consistent results.

Built by an experienced furnace manufacturer, this model is engineered for safety, efficiency, and long-term reliability. The outer shell remains at a low temperature even during high-temperature operation, enhancing operator safety. In case of malfunction, the system automatically triggers an alarm and cuts off power, while an external emergency stop button allows immediate shutdown when needed. Additional features include touch screen control, programmable operation, and optional remote monitoring with real-time data recording. With robust construction, energy-efficient performance, and advanced safety protection, this laboratory furnace is designed for continuous and dependable use.

Why Choose Labotemp Muffle Furnace-03B?
✓ Enhanced safety design: Cool exterior with auto shutdown protection
✓ Precise temperature control: Stable heating up to 1000°C
✓ Smart operation: Touchscreen with programmable control

$18404

Datasheet

Capacity : 7 L Capacity	7 L
Temperature Control Range : 300–1000°C Temperature Control Range	300–1000°C
Power Supply : AC220V 50Hz Power Supply	AC220V 50Hz
Temperature Control Accuracy : ±5°C Temperature Control Accuracy	±5°C
Temperature Resolution : 1°C Temperature Resolution	1°C
Temperature Rising Time : 60±5 minutes Temperature Rising Time	60±5 minutes
Power : 5.3 kW Power	5.3 kW
Exterior Material : Cold-rolled Steel Sheet, Anti-corrosion Coating Exterior Material	Cold-rolled Steel Sheet, Anti-corrosion Coating
Furnace Material : Silicon Carbide Furnace Material	Silicon Carbide
Furnace Dimensions (W×D×H) : 200 × 300 × 120 mm Furnace Dimensions (W×D×H)	200 × 300 × 120 mm
Heater Material : Nickel-Chromium Alloy Wire Heater Material	Nickel-Chromium Alloy Wire
Temperature Controller : Touch Screen Temperature Controller	Touch Screen
Temperature Control Mode : PID Temperature Control Mode	PID
Timing : 0–999 hours Timing	0–999 hours
Run Function : Constant value operation, Program operation Run Function	Constant value operation, Program operation
Sensor : Type K Sensor	Type K
Safety Device : Overcurrent leakage protection switch Safety Device	Overcurrent leakage protection switch
Overall Dimensions (W×D×H) : 560 × 750 × 670 mm Overall Dimensions (W×D×H)	560 × 750 × 670 mm
Package Size : 870x690x910mm Package Size	870x690x910mm
Net Weight : 110 kg Net Weight	110 kg
Gross Weight : 135 kg Gross Weight	135 kg

Auto Safety Shutdown ➤ Auto Safety Shutdown
High-density silicon carbide chamber enhances thermal retention and reduces heat loss during prolonged operations ➤ High-density silicon carbide chamber enhances thermal retention and reduces heat loss during prolonged operations
Fast heat-up capability with optimized thermal circulation for reduced process turnaround time ➤ Fast heat-up capability with optimized thermal circulation for reduced process turnaround time
Wide programmable timing range (0–999 hrs) supports long-duration thermal cycles and unattended operation ➤ Wide programmable timing range (0–999 hrs) supports long-duration thermal cycles and unattended operation
Type K thermocouple ensures reliable temperature sensing across high-temperature ranges ➤ Type K thermocouple ensures reliable temperature sensing across high-temperature ranges
Multi-unit control capability allows centralized operation of multiple furnaces from a single interface ➤ Multi-unit control capability allows centralized operation of multiple furnaces from a single interface
Corrosion-resistant coated steel exterior improves durability in harsh lab and industrial environments ➤ Corrosion-resistant coated steel exterior improves durability in harsh lab and industrial environments
Stable structure design minimizes vibration impact on sensitive thermal treatments ➤ Stable structure design minimizes vibration impact on sensitive thermal treatments

Used for controlled high-temperature processing such as material calcination, ash content determination, ceramic and powder sintering, and thermal decomposition studies ➤ Used for controlled high-temperature processing such as material calcination, ash content determination, ceramic and powder sintering, and thermal decomposition studies
Suitable for R&D labs, metallurgy, pharmaceuticals, and quality control environments requiring precise programmable heating cycles, repeatable temperature accuracy, and safe batch processing of small-volume samples ➤ Suitable for R&D labs, metallurgy, pharmaceuticals, and quality control environments requiring precise programmable heating cycles, repeatable temperature accuracy, and safe batch processing of small-volume samples
