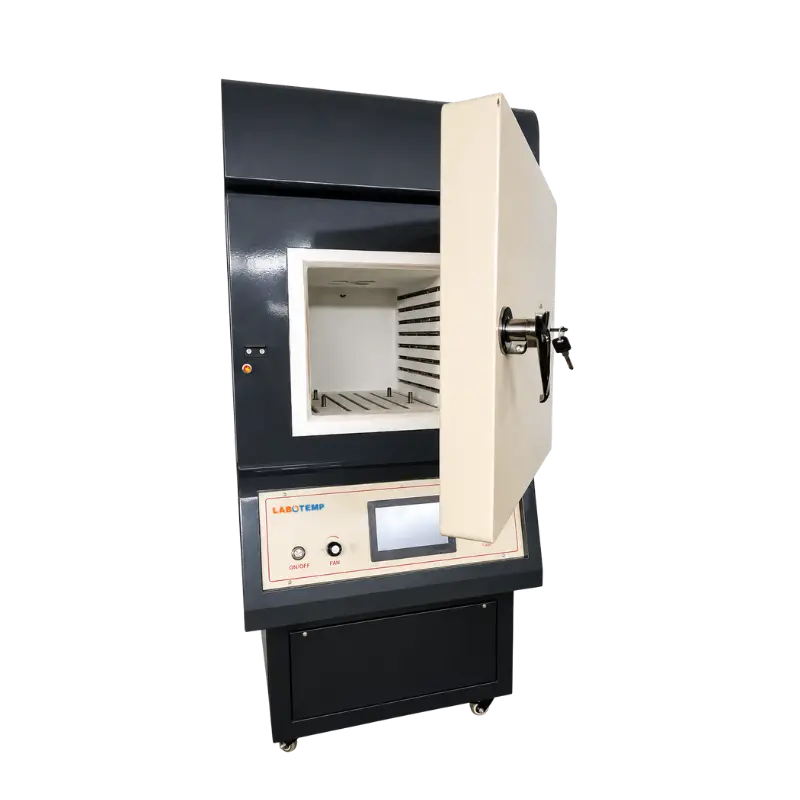

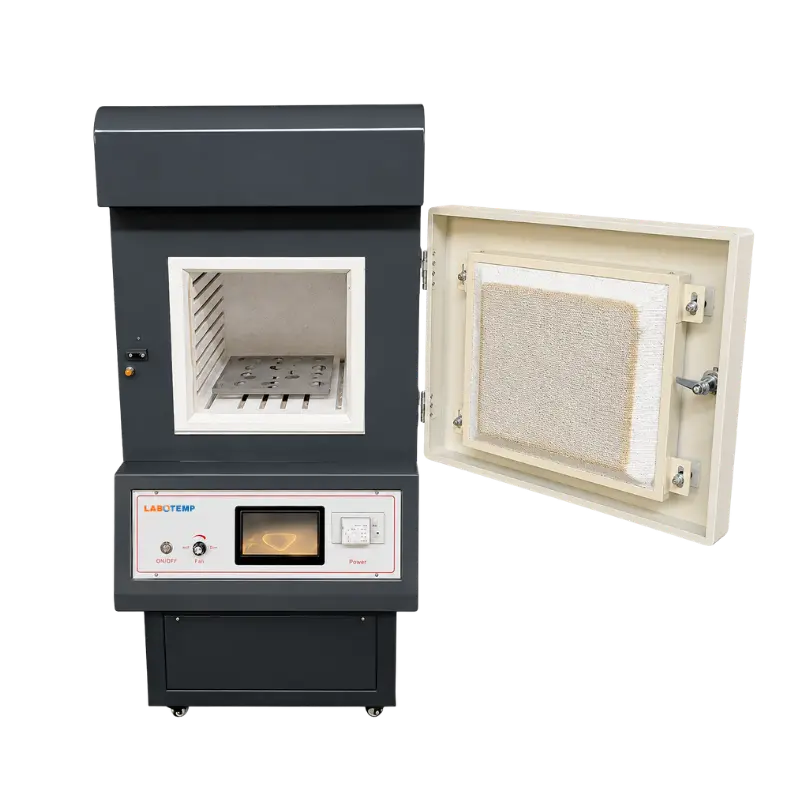

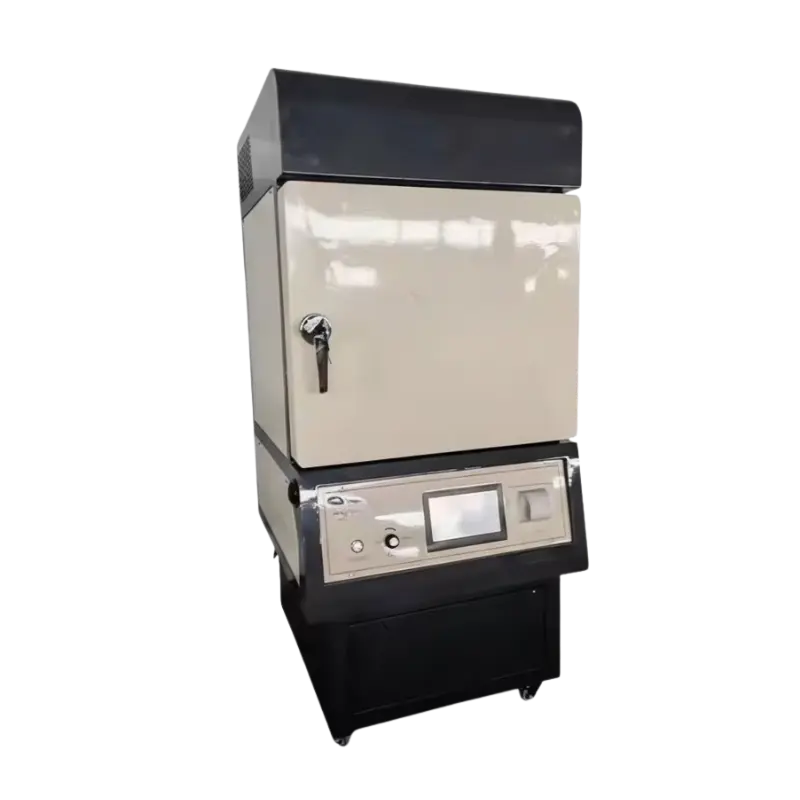

Asphalt Ignition Furnace LBC-102

Name: Asphalt Ignition Furnace LBC-102
Brand: Labotemp
SKU: LBC-102
Price: 9700.00 USD
Availability: InStock
Rating: 4.7 (863 reviews)

Labotemp Asphalt Ignition Furnace LBC-102 is a high-precision ignition testing system designed for rapid and accurate determination of asphalt binder content in hot mix asphalt (HMA) samples. Built to support AASHTO T308 and ASTM D6307 testing methodologies, it provides a safer and more environmentally responsible alternative to solvent extraction methods. Widely used in asphalt plants, highway laboratories, quality control facilities, and transportation research centers, the system delivers reliable binder content analysis while reducing testing time and improving laboratory productivity.

High-Capacity Asphalt Testing
The LBC-102 accommodates standard sample sizes of 1,200–1,800 g and supports samples up to 5,000 g, making it suitable for both routine quality control and large-scale asphalt mixture evaluation.

Precision Weight Monitoring
A built-in high-accuracy electronic balance continuously monitors sample mass throughout the ignition cycle and automatically calculates binder content with an accuracy of ±0.11%, ensuring repeatable and dependable test results.

Advanced Temperature Control
The combustion chamber operates between 200°C and 650°C with a standard testing temperature of 538°C, providing controlled and consistent combustion conditions for accurate asphalt content determination.

Emission Reduction & Safety
An integrated afterburner operating at 650–750°C helps reduce exhaust emissions, while the automatic door-locking system enhances operator safety during high-temperature testing. Automatic and manual operating modes provide additional testing flexibility.

Smart Data Management
Real-time data monitoring, automatic endpoint detection, temperature compensation, and RS-232 connectivity support efficient test documentation, data analysis, and quality assurance workflows.

Why Choose Labotemp Asphalt Ignition Furnace LBC-102?
✓ 5000g Sample Capacity: Suitable for routine and high-capacity asphalt testing
✓ Integrated Afterburner System: Reduced emissions and improved laboratory safety
✓ Automatic Weight Monitoring: Continuous tracking with automated endpoint detection

$9700

Datasheet

Operating Temperature Range : 200°C – 650°C Operating Temperature Range	200°C – 650°C
Default Operating Temperature : 538°C Default Operating Temperature	538°C
Power Supply : 220–240 V, 60 Hz, 20/27 A Power Supply	220–240 V, 60 Hz, 20/27 A
Afterburner Temperature Range : 650°C – 750°C Afterburner Temperature Range	650°C – 750°C
Balance Capacity : 10.0 kg Balance Capacity	10.0 kg
Balance Accuracy : 0.1 g Balance Accuracy	0.1 g
Sample Mass Capacity : Standard: 1200–1800 g; Maximum: 5000 g Sample Mass Capacity	Standard: 1200–1800 g; Maximum: 5000 g
Test Accuracy : ±0.11% Test Accuracy	±0.11%
Endpoint Sensitivity : Adjustable between 0.01% and 0.5% Endpoint Sensitivity	Adjustable between 0.01% and 0.5%
Data Interface : RS-232 (PC connection for graphical data analysis) Data Interface	RS-232 (PC connection for graphical data analysis)

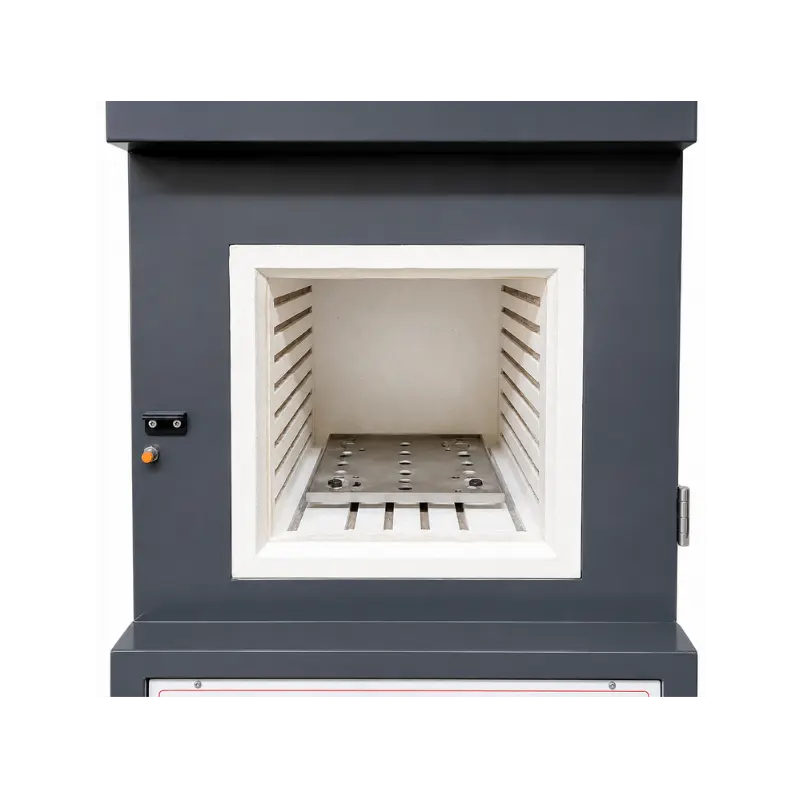

Chamber Dimensions (W × D × H) : 356 × 356 × 356 mm Chamber Dimensions (W × D × H)	356 × 356 × 356 mm
External Dimensions (W × D × H) : 553 × 677 × 1029 mm External Dimensions (W × D × H)	553 × 677 × 1029 mm
Operation Mode : Automatic and Manual Operation Mode	Automatic and Manual
Door Safety System : Automatic Door Locking Door Safety System	Automatic Door Locking
Exhaust Treatment : High-Temperature Afterburner with Ceramic Filter Exhaust Treatment	High-Temperature Afterburner with Ceramic Filter
Emission Reduction : Up to 95% Emission Reduction	Up to 95%
Result Output : Automatic Printing of Test Results Result Output	Automatic Printing of Test Results
Temperature Control : Programmable Automatic Control Temperature Control	Programmable Automatic Control
Weight Monitoring : Continuous Electronic Balance Monitoring Weight Monitoring	Continuous Electronic Balance Monitoring
Net Weight : 110kg Net Weight	110kg
Gross Weight : 160kg Gross Weight	160kg
Package Size : 920 × 740 × 1550 mm Package Size	920 × 740 × 1550 mm

±0.11% Test Accuracy ➤ ±0.11% Test Accuracy
Complies with AASHTO T308, ASTM D6307, EN 12697-39, and JTG E20 T0735 standards for asphalt binder content determination using the ignition method. ➤ Complies with AASHTO T308, ASTM D6307, EN 12697-39, and JTG E20 T0735 standards for asphalt binder content determination using the ignition method.
Supports 1,200–1,800 g standard samples and up to 5,000 g maximum capacity, suitable for diverse asphalt mixture testing applications. ➤ Supports 1,200–1,800 g standard samples and up to 5,000 g maximum capacity, suitable for diverse asphalt mixture testing applications.
Built-in high-precision electronic balance continuously monitors sample weight and automatically determines test endpoints for improved accuracy and productivity. ➤ Built-in high-precision electronic balance continuously monitors sample weight and automatically determines test endpoints for improved accuracy and productivity.
Delivers ±0.11% asphalt content accuracy with programmable endpoint sensitivity from 0.01% to 0.5%. ➤ Delivers ±0.11% asphalt content accuracy with programmable endpoint sensitivity from 0.01% to 0.5%.
Operates at 200°C–650°C with a default test temperature of 538°C for controlled and repeatable binder burn-off. ➤ Operates at 200°C–650°C with a default test temperature of 538°C for controlled and repeatable binder burn-off.
Integrated 650°C–750°C afterburner system and ceramic filtration technology help reduce exhaust emissions and improve laboratory safety. ➤ Integrated 650°C–750°C afterburner system and ceramic filtration technology help reduce exhaust emissions and improve laboratory safety.
Offers automatic and manual operating modes for flexible testing and process control. ➤ Offers automatic and manual operating modes for flexible testing and process control.
Automatic door-locking safety system prevents opening during high-temperature operation. ➤ Automatic door-locking safety system prevents opening during high-temperature operation.
Intelligent process control automatically monitors weight loss, calculates results, provides alerts, and enhances testing efficiency. ➤ Intelligent process control automatically monitors weight loss, calculates results, provides alerts, and enhances testing efficiency.
Features RS-232 connectivity for PC integration, data transfer, reporting, and graphical analysis. ➤ Features RS-232 connectivity for PC integration, data transfer, reporting, and graphical analysis.
Temperature compensation technology improves measurement stability and test reliability. ➤ Temperature compensation technology improves measurement stability and test reliability.
Solvent-free testing eliminates chemical extraction costs, hazardous waste disposal, and associated safety concerns. ➤ Solvent-free testing eliminates chemical extraction costs, hazardous waste disposal, and associated safety concerns.
Durable refractory-insulated chamber and modular heating system provide long service life and dependable laboratory performance. ➤ Durable refractory-insulated chamber and modular heating system provide long service life and dependable laboratory performance.

Asphalt Mix Design Verification: Determines asphalt binder content in hot mix asphalt (HMA) samples to validate mix designs and ensure compliance with project specifications Asphalt Mix Design Verification
Determines asphalt binder content in hot mix asphalt (HMA) samples to validate mix designs and ensure compliance with project specifications
Production Quality Control: Used in asphalt plants to monitor binder content consistency during manufacturing, helping maintain uniform pavement quality Production Quality Control
Used in asphalt plants to monitor binder content consistency during manufacturing, helping maintain uniform pavement quality
Highway & Infrastructure Testing: Supports road construction and transportation agencies in evaluating asphalt mixtures for acceptance testing and contract compliance Highway & Infrastructure Testing
Supports road construction and transportation agencies in evaluating asphalt mixtures for acceptance testing and contract compliance
Materials Testing Laboratories: Enables accurate determination of bitumen content for routine quality assurance, research, and forensic pavement investigations Materials Testing Laboratories
Enables accurate determination of bitumen content for routine quality assurance, research, and forensic pavement investigations
Research & Development: Assists civil engineering and transportation research facilities in studying asphalt formulations, aggregate-binder relationships, and pavement performance characteristics Research & Development
Assists civil engineering and transportation research facilities in studying asphalt formulations, aggregate-binder relationships, and pavement performance characteristics
Regulatory Compliance Testing: Suitable for laboratories performing testing according to ignition furnace methodologies including AASHTO T308 and ASTM D6307 standards Regulatory Compliance Testing
Suitable for laboratories performing testing according to ignition furnace methodologies including AASHTO T308 and ASTM D6307 standards
