Labotemp Fluorescence Microscope LFM-01 is a research-grade microscope designed for advanced biological imaging and fluorescence observation in clinical laboratories, universities, and biomedical research facilities. This professional fluorescence microscope integrates a trinocular viewing system with LED excitation illumination, enabling researchers to observe fluorescent-labeled cells, microorganisms, and biological structures with excellent contrast and clarity. The multi-position fluorescence filter system supports several excitation channels, allowing the LED fluorescence microscope to detect different fluorescent dyes commonly used in immunofluorescence, molecular biology, and pathology applications.
Built with an infinity optical system and high-quality plan objectives, the microscope delivers sharp and uniform imaging across the field of view. The LFM-01 configuration features a trinocular head for easy integration of digital microscope cameras, making it suitable for documentation, imaging analysis, and research recording. A large rackless mechanical stage with double slide holder ensures precise sample positioning, while the coaxial coarse and fine focusing system provides accurate control during observation. With its stable LED illumination, multi-filter fluorescence capability, and durable laboratory construction, this fluorescence microscope offers reliable performance for cell biology, microbiology, pathology, and biomedical research laboratories.
Why Choose Labotemp Fluorescence Microscope LFM-01
✓ Multi-Channel Fluorescence Imaging: Supports multiple fluorescence filters for observing different biological dyes.
✓ Trinocular Imaging System: Allows direct camera integration for digital documentation and research imaging.
✓ Reliable LED Fluorescence Microscope: Long-life LED illumination provides stable excitation light with lower heat generation for continuous laboratory use.
|
Product Type : LED Fluorescence Microscope Product Type |
LED Fluorescence Microscope |
|
Observation Method : Bright Field & Fluorescence Observation Method |
Bright Field & Fluorescence |
|

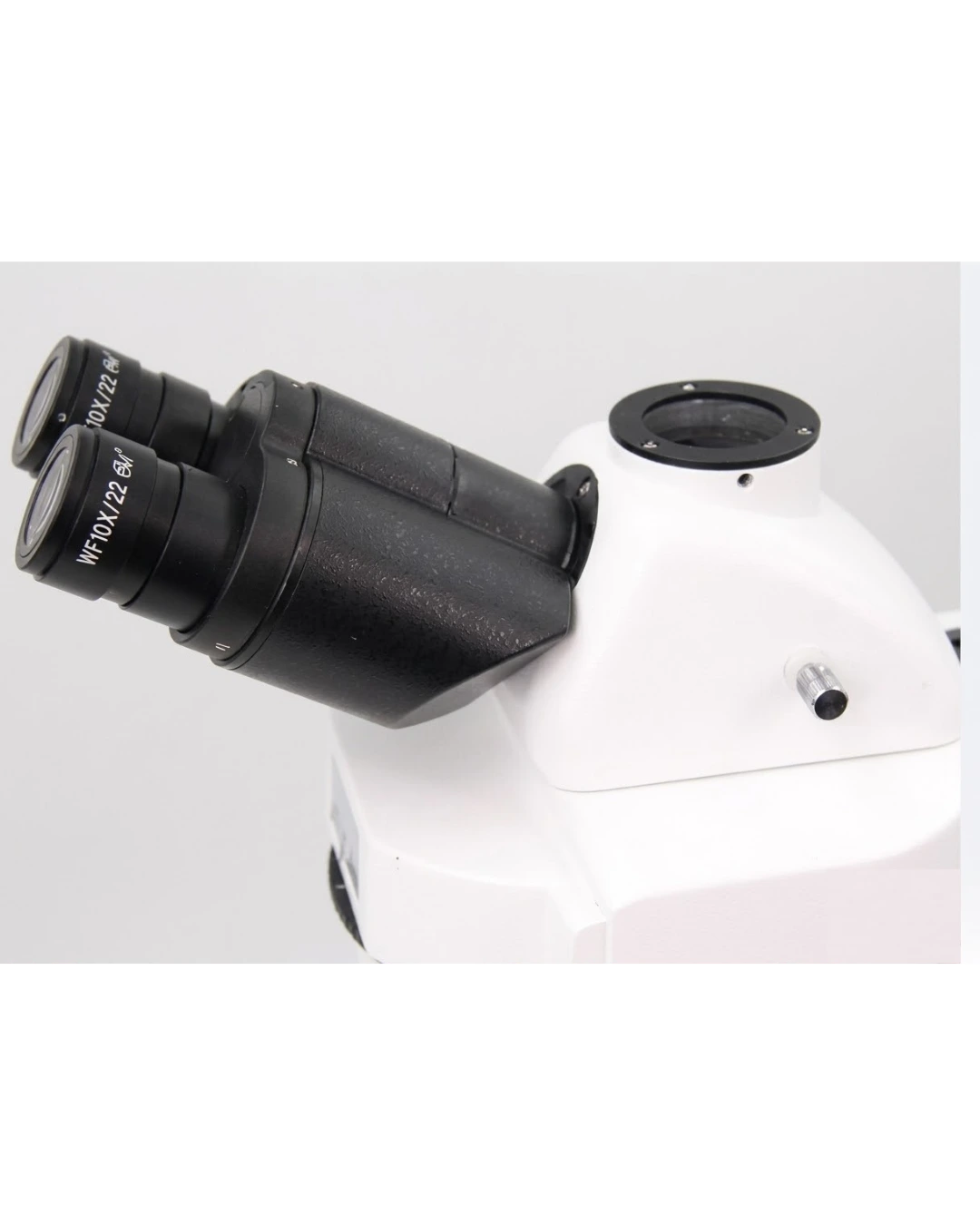

Viewing Head : Trinocular Head, 30° inclined, 360° rotatable Viewing Head |
Trinocular Head, 30° inclined, 360° rotatable |
|
Interpupillary Distance : 48–76 mm Interpupillary Distance |
48–76 mm |
|
Eyepiece : WF10× / 22 mm Wide Field Eyepiece Eyepiece |
WF10× / 22 mm Wide Field Eyepiece |
|
Nosepiece : Quintuple Revolving Nosepiece Nosepiece |
Quintuple Revolving Nosepiece |
|
Power Supply : Wide Voltage 100-240V Power Supply |
Wide Voltage 100-240V |
|
Mechanical Stage Size : 182 × 140 mm Mechanical Stage Size |
182 × 140 mm |
|
Stage Travel Range : 77 × 52 mm Stage Travel Range |
77 × 52 mm |
|
Slide Holder : Double Slide Holder Slide Holder |
Double Slide Holder |
|
Focusing System : Coaxial Coarse & Fine Focusing Focusing System |
Coaxial Coarse & Fine Focusing |
|
Coarse Focus Range : 22 mm Coarse Focus Range |
22 mm |
|
Fine Focus Precision : 0.002 mm Fine Focus Precision |
0.002 mm |
|
Condenser : Swing-Out Condenser NA 0.9 / 0.13 with Iris Diaphragm Condenser |
Swing-Out Condenser NA 0.9 / 0.13 with Iris Diaphragm |
|
Fluorescence System : LED Fluorescence Illumination Fluorescence System |
LED Fluorescence Illumination |
|
Fluorescence Filter Disk : 6-Hole Fluorescence Filter Disk Fluorescence Filter Disk |
6-Hole Fluorescence Filter Disk |
|
Filter Sets : UV / V / B / G Fluorescence Filters Filter Sets |
UV / V / B / G Fluorescence Filters |
|
Camera Port : Trinocular Camera Port Camera Port |
Trinocular Camera Port |
|

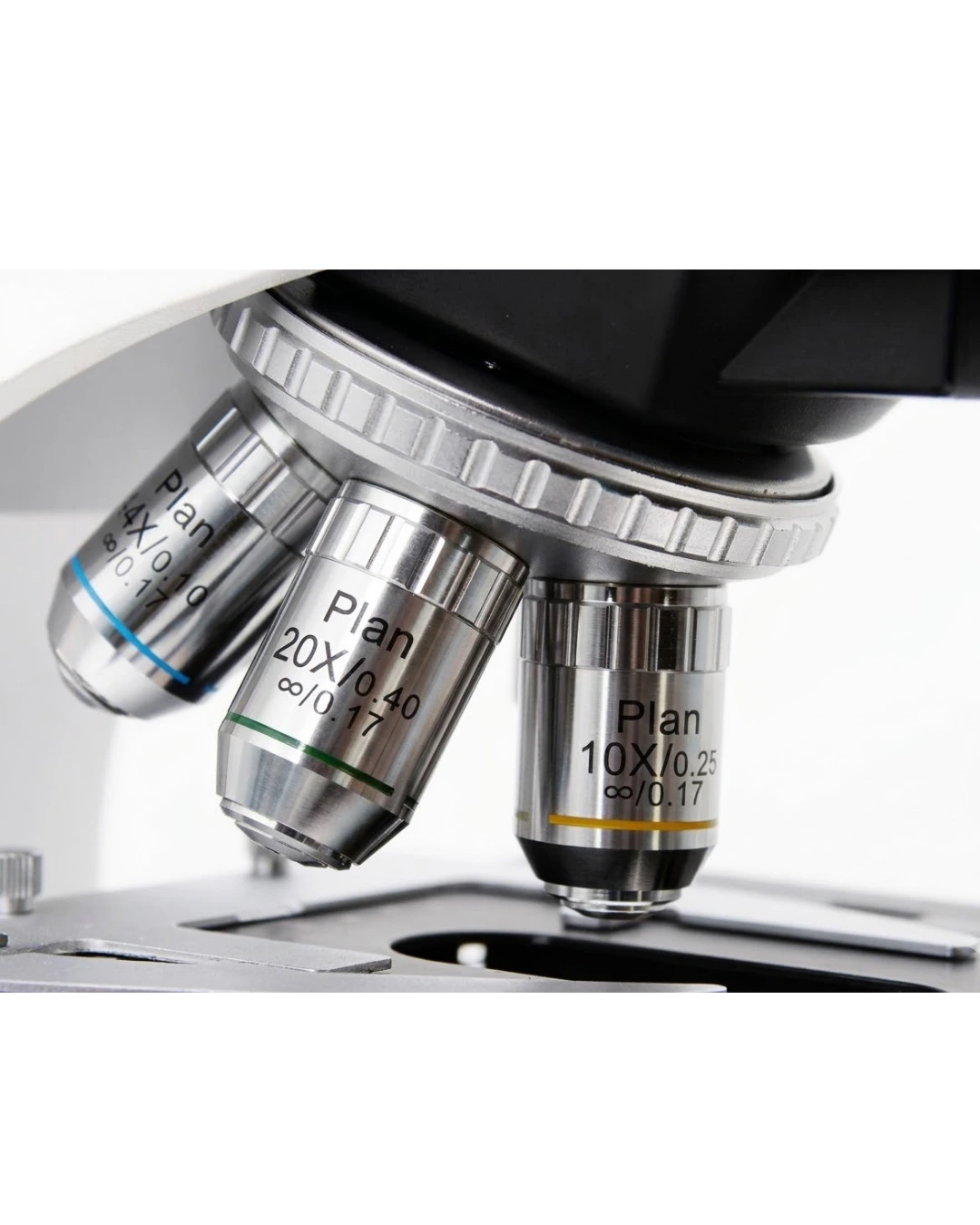

Objectives : Infinity Plan Objectives (4×, 10×, 20×, 40×, 60×, 100× optional) Objectives |
Infinity Plan Objectives (4×, 10×, 20×, 40×, 60×, 100× optional) |
|
Package Size : 970 × 340 × 440 mm Package Size |
970 × 340 × 440 mm |
|
Net Weight : 18 kg Net Weight |
18 kg |
|
Gross Weight : 22 kg Gross Weight |
22 kg |
Viewing Head: Trinocular Head, 30° inclined, 360° rotatable
Stage Travel Range: 77 × 52 mm
Slide Holder: Double Slide Holder
Product Type: LED Fluorescence Microscope
