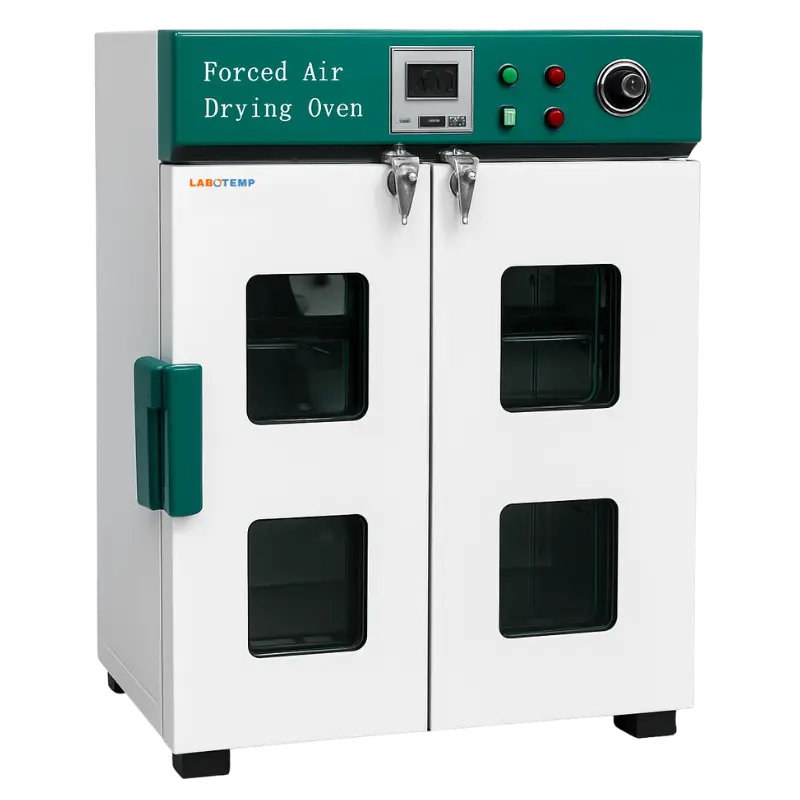

Labotemp Industrial Drying Oven FOV-22 is a high-capacity industrial curing oven designed for large-scale heating, curing, baking, and thermal processing in laboratory and industrial environments. With a temperature range of RT+10°C to 300°C and ±1°C accuracy, it ensures stable and uniform heating for reliable drying and heat treatment. The 1300 L chamber capacity supports high-volume batch processing and is widely used in electronics manufacturing, automotive production, chemical processing, aerospace engineering, and materials testing where consistent thermal conditions are essential.
The oven features a durable Stainless steel inner chamber combined with rock wool insulation to maintain stable internal temperatures and improve heat retention during long operating cycles. A powerful 9.0 kW heating system delivers uniform heat distribution throughout the large chamber, supporting reliable performance for industrial drying and thermal treatment processes. The PID programmable controller with LCD display allows precise temperature regulation, real-time monitoring, and multi-step heating control.
Why choose Labotemp Industrial Drying Oven FOV-22?
✓ High-Capacity Chamber: Large 1300L chamber supports bulk material drying and large component processing.
✓ Accurate Temperature Control: PID programmable controller maintains stable heating with ±1°C accuracy.
✓ Powerful Heating Performance: A 9.0 kW heating system ensures uniform temperature distribution for reliable industrial drying.
|
Model NO. : FOV-22 Model NO. |
FOV-22 |
|
Temp Range : RT+10–300°C Temp Range |
RT+10–300°C |
|
Accuracy : ±1°C Accuracy |
±1°C |
|
Uniformity : ±3% Uniformity |
±3% |
|

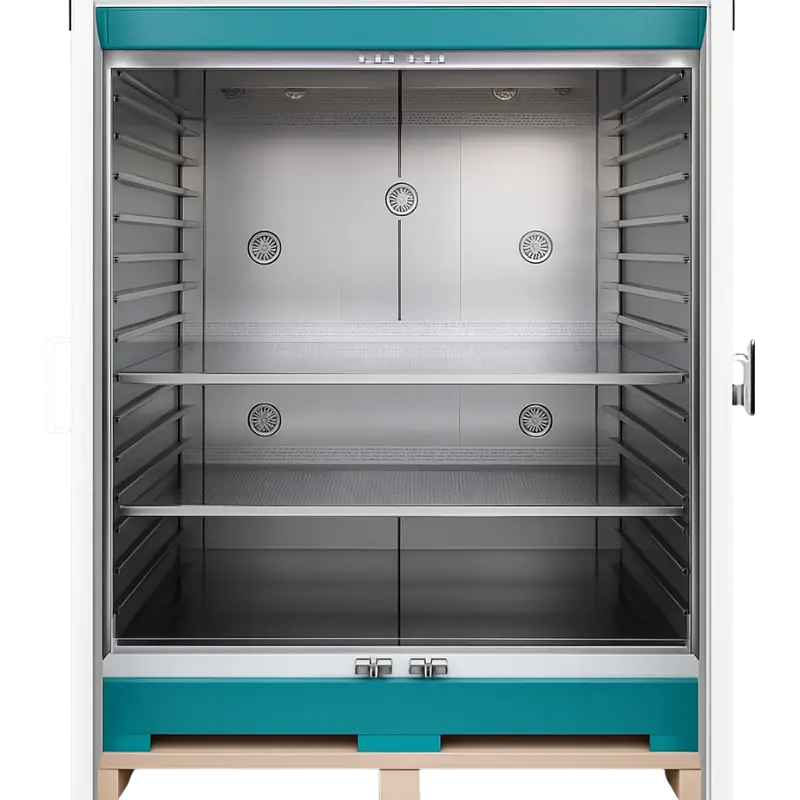

Inner Chamber : Stainless steel inner chamber Inner Chamber |
Stainless steel inner chamber |
|
Insulation : Rock wool board Insulation |
Rock wool board |
|
Heater Power : 9.0 kW Heater Power |
9.0 kW |
|
Controller : PID/Programmable Controller |
PID/Programmable |
|
Display : LCD Display |
LCD |
|
Timing : 0–9999 min Timing |
0–9999 min |
|
Safety : Overheat cut-off Safety |
Overheat cut-off |
|
Chamber Size (mm) : 1000×1000×1300 Chamber Size (mm) |
1000×1000×1300 |
|
Volume (L) : 1300 Volume (L) |
1300 |
|
Power Supply : 380V Power Supply |
380V |
|
Net Weight : 280Kg Net Weight |
280Kg |
|
Gross Weight : 350Kg Gross Weight |
350Kg |
|
Package Size : 1410x1270x1920mm Package Size |
1410x1270x1920mm |
