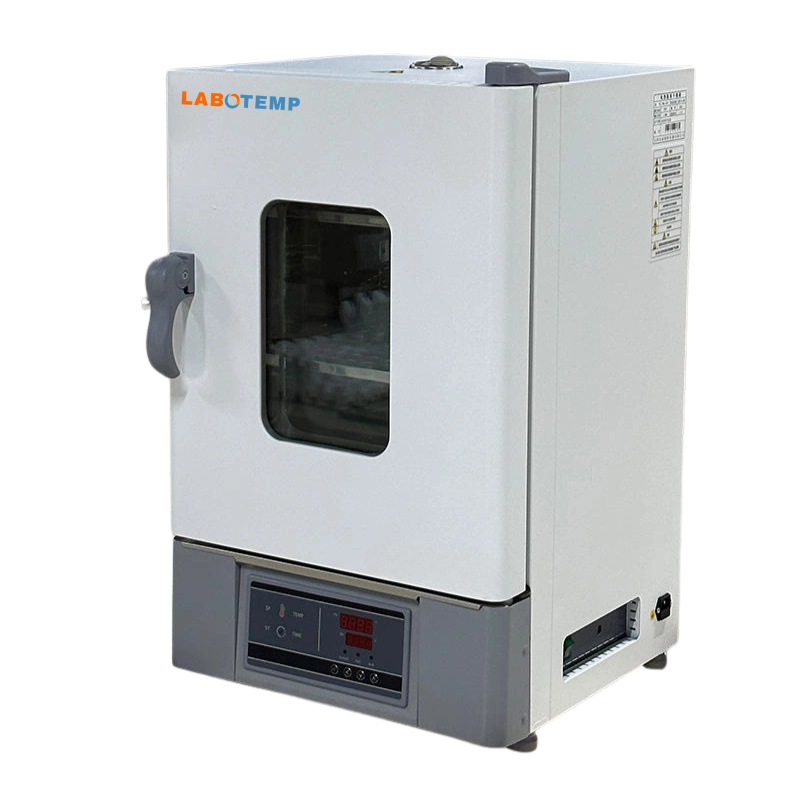

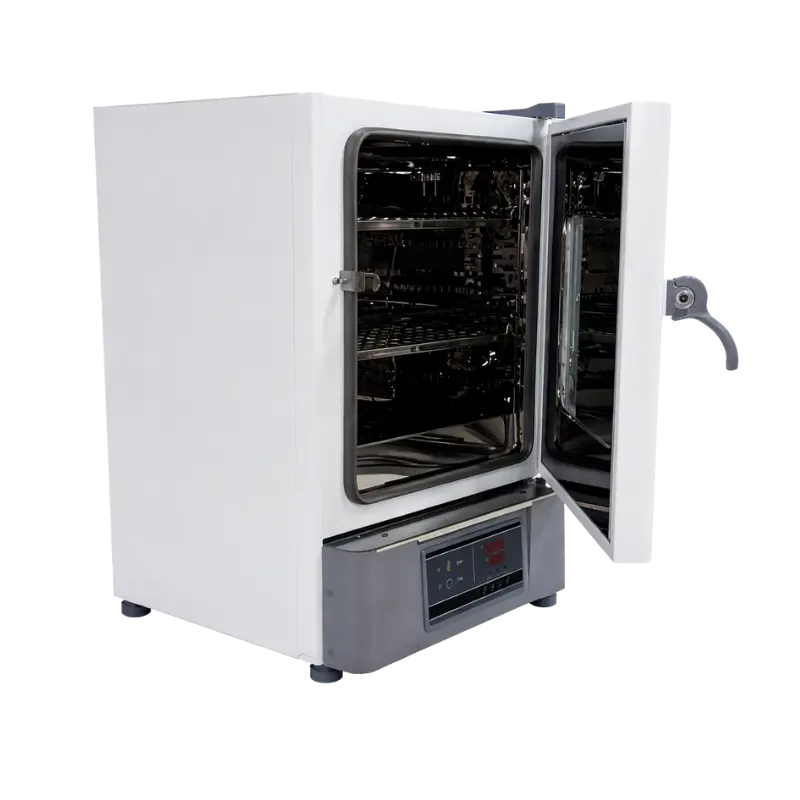

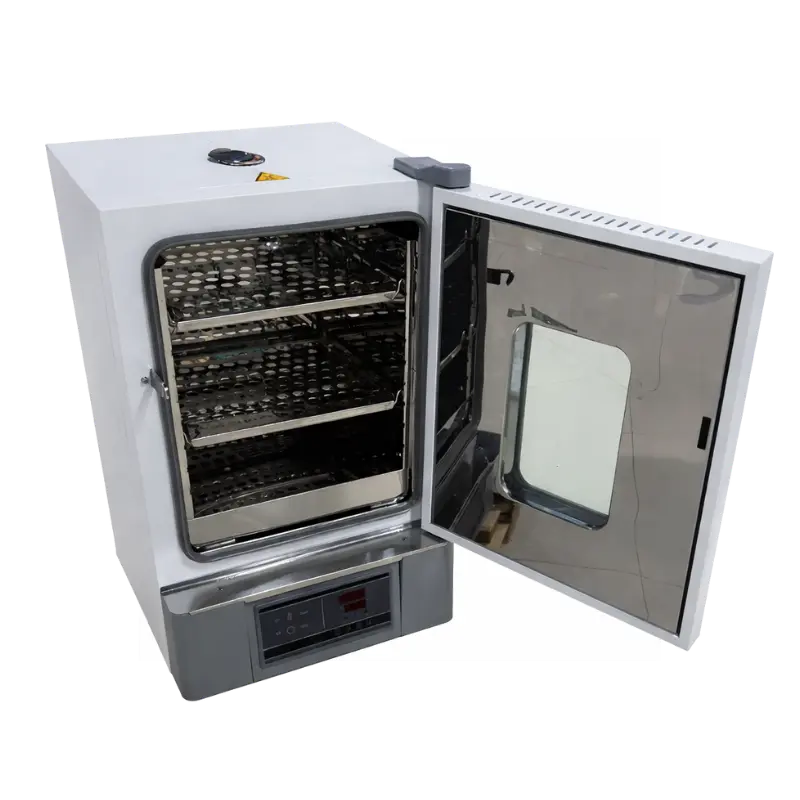

Labotemp Blast Drying Oven FOV-06 is a compact laboratory drying oven designed for controlled heating, sample conditioning and thermal processing in laboratories, research facilities and industrial quality control departments. This forced convection drying oven is suitable for applications such as oven drying, glassware drying, material testing and component conditioning. With a 45 L chamber capacity and a temperature range from RT+10 to 300 °C, it provides reliable performance for laboratories requiring a scientific oven or laboratory hot air oven for routine analytical tasks.
This lab oven features a mirror-finish stainless steel chamber with a cold-rolled steel exterior, ensuring durability and resistance to laboratory chemicals. A dual PID temperature control system provides precise heating with 0.1 °C resolution and ±1 °C stability for consistent drying results. Control options including digital display, LCD or touchscreen interface allow easy monitoring and operation. The hot air circulation system with adjustable fan control distributes heat evenly inside the chamber, improving temperature uniformity during drying processes.
Why choose Labotemp Blast Drying Oven FOV-06?
✓ Uniform Heating Performance: Forced air circulation ensures even temperature distribution.
✓ Programmable Operation: Controller supports timed operation and repeatable workflows.
✓ Robust Industrial Build: Stainless steel chamber supports long-term laboratory use.
|
Maximum Temperature : 300°C Maximum Temperature |
300°C |
|
Chamber Volume : 45 L Chamber Volume |
45 L |
|
Power Rating : 1.2 kW Power Rating |
1.2 kW |
|
Temperature Distribution Accuracy : ±2.0% Temperature Distribution Accuracy |
±2.0% |
|
Timer Range : 0–9999 minutes Timer Range |
0–9999 minutes |
|
Program Control : Up to 50 programs × 50 steps Program Control |
Up to 50 programs × 50 steps |
|
Interior Material : Mirror stainless steel Interior Material |
Mirror stainless steel |
|
Exterior Material : Cold-rolled plate with chemical-resistant coating Exterior Material |
Cold-rolled plate with chemical-resistant coating |
|
Insulation Material : Silica fiber Insulation Material |
Silica fiber |
|
Heater Type : Stainless steel heating pipe / Nickel-cobalt alloy wire Heater Type |
Stainless steel heating pipe / Nickel-cobalt alloy wire |
|
Air Circulation : Dual-channel forced convection, rear air duct, swirl air supply Air Circulation |
Dual-channel forced convection, rear air duct, swirl air supply |
|
Air Vent : Ø28 mm × 2 (top) Air Vent |
Ø28 mm × 2 (top) |
|
Sensor Type : Pt100 Sensor Type |
Pt100 |
|
Safety Device : Anti-temperature rise device Safety Device |
Anti-temperature rise device |
|
Fan Type : Constant speed fan Fan Type |
Constant speed fan |
|
Internal Dimensions : 350×350×350mm Internal Dimensions |
350×350×350mm |
|
External Dimensions : 468×538×753mm External Dimensions |
468×538×753mm |
|
Package Dimensions : 592×618×880mm Package Dimensions |
592×618×880mm |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Fluctuation : ±1.0°C Temperature Fluctuation |
±1.0°C |
|
Power Supply : AC220V 50/60 Hz 5.5A Power Supply |
AC220V 50/60 Hz 5.5A |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Partition Layers / Standard Layers : 6/2 layers Partition Layers / Standard Layers |
6/2 layers |
|
Partition Spacing : 35 mm Partition Spacing |
35 mm |
|
Net Weight : 37kg Net Weight |
37kg |
|
Gross Weight : 43kg Gross Weight |
43kg |
