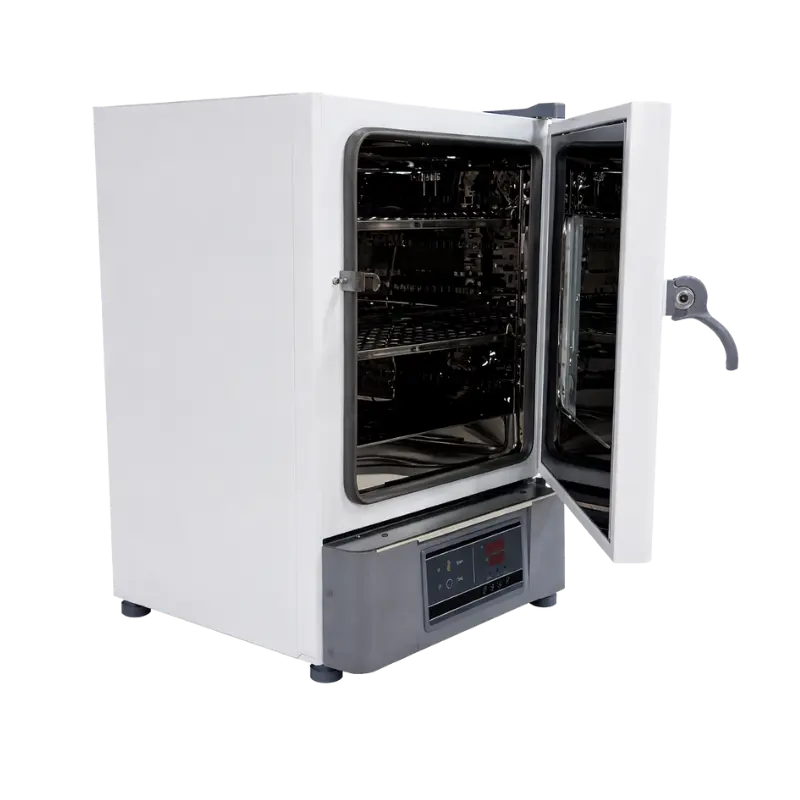

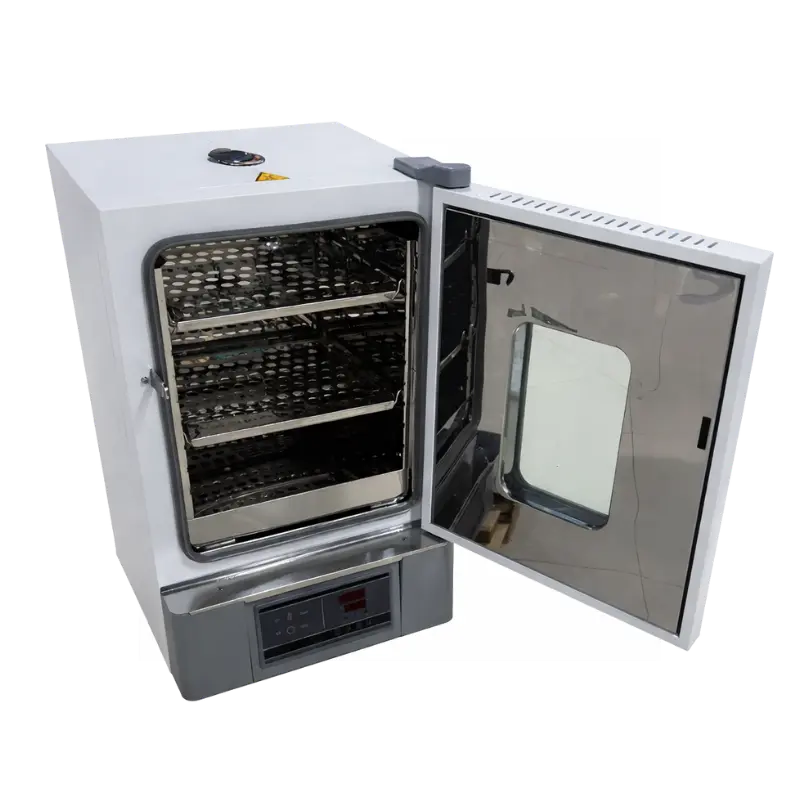

Labotemp Blast Drying Oven FOV-08 is a high-efficiency laboratory drying oven manufactured by a trusted lab oven manufacturer, designed for controlled heating, drying and thermal conditioning in research laboratories, industrial production units and quality control environments. This blast drying oven supports applications such as oven drying, glassware drying, sample conditioning and material testing. With an 85 L chamber capacity and a temperature range of RT+10 to 300 °C, the unit delivers reliable performance for laboratories requiring a dependable laboratory hot air oven or laboratory convection oven for routine analytical and industrial drying tasks.
Constructed with a mirror stainless steel interior and chemically resistant cold-rolled steel exterior, this laboratory drying oven offers durability and long operational life. The dual-channel forced convection system with rear air circulation distributes heat evenly inside the chamber to improve drying efficiency and temperature stability. A dual PID temperature controller with digital, LCD or touchscreen interface options maintains accurate heating with 0.1 °C resolution and ±1 °C stability for consistent results. Programmable timing and scheduled operation enable controlled workflows. Developed with ISO and CE compliance, this industrial drying oven offers dependable performance for laboratories requiring equipment from trusted oven manufacturers.
Why choose Labotemp Blast Drying Oven FOV-08?
✓ Uniform Heat Distribution: Dual-channel convection ensures consistent airflow and temperature stability.
✓ Programmable Control System: Advanced PID controller allows scheduled operation and precise monitoring.
✓ Durable Laboratory Construction: Stainless steel chamber and insulated design support long-term use.
|
Chamber Volume : 85L Chamber Volume |
85L |
|
Temperature Range : RT +10 °C to 300 °C Temperature Range |
RT +10 °C to 300 °C |
|
Temperature Resolution : 0.1 °C Temperature Resolution |
0.1 °C |
|
Temperature Fluctuation : ±1.0 °C Temperature Fluctuation |
±1.0 °C |
|
Temperature Distribution Accuracy : ±2.0 % Temperature Distribution Accuracy |
±2.0 % |
|
Controller Type : 5-inch Color Touchscreen PID Controller Type |
5-inch Color Touchscreen PID |
|
Program Capacity : 50 Programs × 50 Steps Program Capacity |
50 Programs × 50 Steps |
|
Timer Range : 0 – 9999 minutes Timer Range |
0 – 9999 minutes |
|
Sensor Type : Pt100 Sensor Type |
Pt100 |
|
Air Circulation : Dual-channel forced convection (vertical air duct) Air Circulation |
Dual-channel forced convection (vertical air duct) |
|
Air Vent : Ø28 mm × 2 (top) Air Vent |
Ø28 mm × 2 (top) |
|
Interior Material : Mirror-finish stainless steel Interior Material |
Mirror-finish stainless steel |
|
Exterior Material : Cold-rolled plate with chemical-resistant coating Exterior Material |
Cold-rolled plate with chemical-resistant coating |
|
Insulation Material : Silica fiber Insulation Material |
Silica fiber |
|
Heating Element : Stainless steel heating pipe Heating Element |
Stainless steel heating pipe |
|
Power Rating : 1.8 kW Power Rating |
1.8 kW |
|
Power Supply : AC 220V / 50–60 Hz / 8.2 A Power Supply |
AC 220V / 50–60 Hz / 8.2 A |
|
Internal Dimensions (W×D×H) : 420 × 450 × 450 mm Internal Dimensions (W×D×H) |
420 × 450 × 450 mm |
|
External Dimensions (W×D×H) : 567 × 640 × 853 mm External Dimensions (W×D×H) |
567 × 640 × 853 mm |
|
Package Dimensions (W×D×H) : 692 × 718 × 980 mm Package Dimensions (W×D×H) |
692 × 718 × 980 mm |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Standard Shelves : 2 (8 possible positions) Standard Shelves |
2 (8 possible positions) |
|
Partition Spacing : 150 mm Partition Spacing |
150 mm |
|
Net / Gross Weight : 50 / 58 kg Net / Gross Weight |
50 / 58 kg |
|
Safety Features : Over-temperature protection, Anti-temperature rise device, Power failure memory Safety Features |
Over-temperature protection, Anti-temperature rise device, Power failure memory |
|
Additional Functions : Bias correction, Menu lock Additional Functions |
Bias correction, Menu lock |
|
Fan Type : Speed Control Fan Fan Type |
Speed Control Fan |
