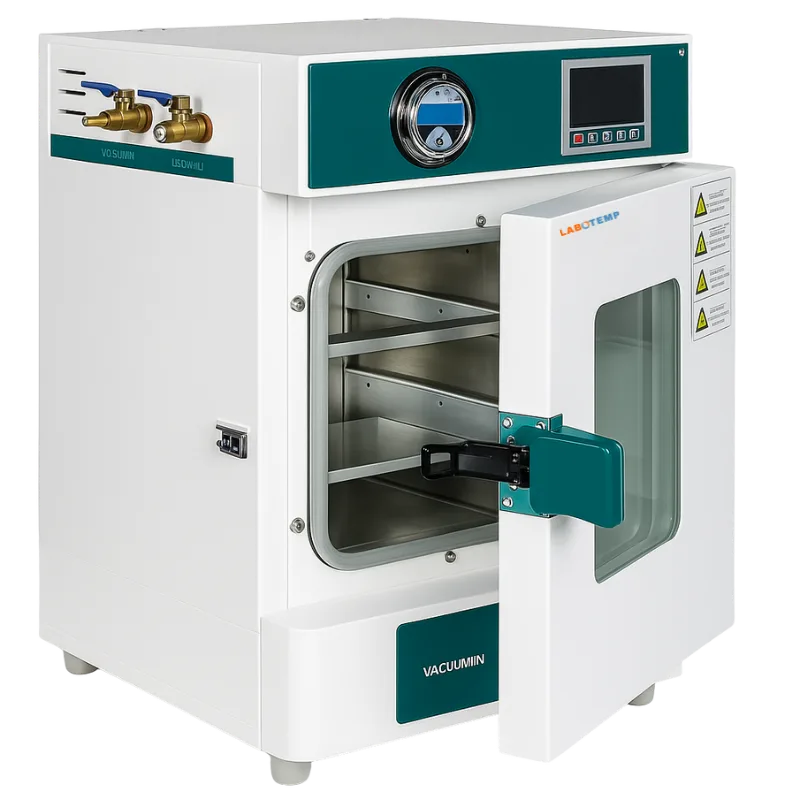

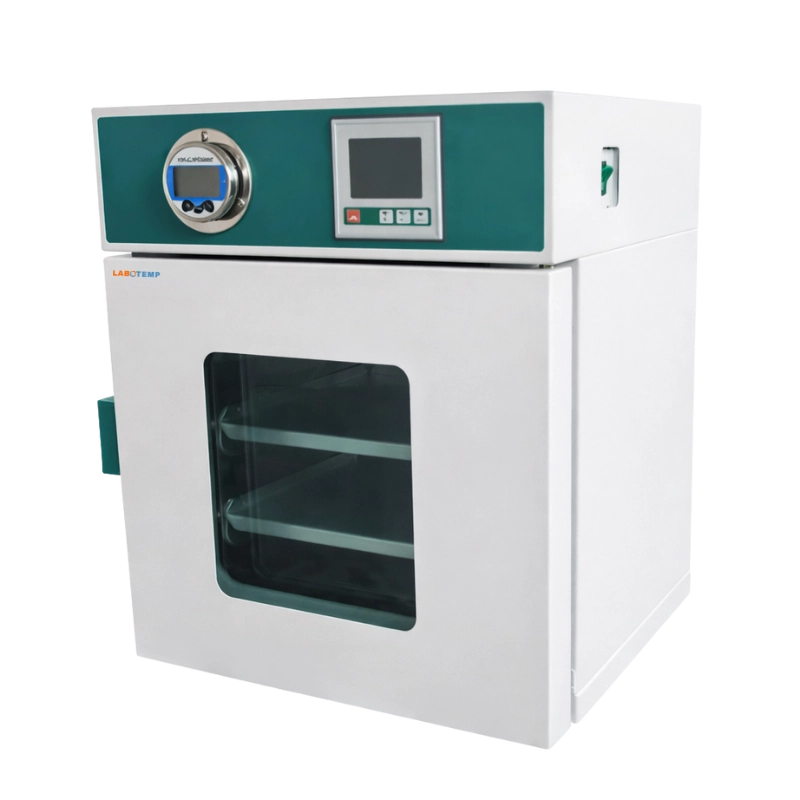

Labotemp Vacuum Oven FOV-24 is an ISO and CE compliant laboratory vacuum oven designed for drying heat-sensitive and moisture-sensitive materials. Using four-wall conduction heating with decompression, it minimizes oxidation and contamination during processing. With a temperature range of RT+10°C to 250°C and ±1°C accuracy, it provides stable thermal conditions for delicate applications. The 24 L stainless steel chamber supports controlled drying of powders, electronic components, pharmaceutical samples, and chemical materials in research laboratories and industrial testing environments.
The oven features a durable stainless steel inner chamber combined with alumina silicate fibre insulation to maintain stable internal temperatures and improve heat retention. A 0.8 kW heating system ensures uniform heating under vacuum conditions for gentle sample processing. The two-section PID controller with LED display enables accurate temperature control and monitoring. Additional features such as a 0–9999 minute programmable timer and over-temperature alarm protection support reliable and safe operation for routine laboratory drying.
Why choose Labotemp Vacuum Oven FOV-24?
✓ Gentle Vacuum Drying: Four-wall conduction heating enables safe drying of sensitive samples.
✓ Precise Temperature Control: PID controller maintains stable heating with ±1°C accuracy.
✓ Compact Laboratory Design: 24 L chamber ideal for controlled vacuum drying of small lab samples.
|
Temperature Range : RT+10–250°C Temperature Range |
RT+10–250°C |
|
Capacity : 24L Capacity |
24L |
|
Power Supply : AC220V 50/60Hz 3.6A Power Supply |
AC220V 50/60Hz 3.6A |
|
Vacuum Degree Range : <133Pa Vacuum Degree Range |
<133Pa |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Fluctuation : ±1°C Temperature Fluctuation |
±1°C |
|
Heating-Up Time : 80 min Heating-Up Time |
80 min |
|
Power Rating : 0.8 kW Power Rating |
0.8 kW |
|
Nozzle Diameter : 10 mm Nozzle Diameter |
10 mm |
|
Heating Mode : Four walls heat conduction and decompression Heating Mode |
Four walls heat conduction and decompression |
|
Number of Shelves : 4 Number of Shelves |
4 |
|
Insulation Layer : High quality aluminium silicate cotton Insulation Layer |
High quality aluminium silicate cotton |
|
Heater : Stainless steel electric heating tube Heater |
Stainless steel electric heating tube |
|
Observation Window : Bullet proof tempered glass Observation Window |
Bullet proof tempered glass |
|
Vacuum Display : LCD display, accuracy class 0.5 Vacuum Display |
LCD display, accuracy class 0.5 |
|
Timer : 0–9999 minutes (with timing wait function) Timer |
0–9999 minutes (with timing wait function) |
|
Operation Function : Fixed temperature operation, timing function, auto stop Operation Function |
Fixed temperature operation, timing function, auto stop |
|
Temperature Sensor : PT100 Temperature Sensor |
PT100 |
|
Safety Device : Over temperature sound-light alarm Safety Device |
Over temperature sound-light alarm |
|
Inner Chamber (W×D×H) : 300 × 300 × 270 mm Inner Chamber (W×D×H) |
300 × 300 × 270 mm |
|
Exterior Size (W×D×H) : 480 × 480 × 606 mm Exterior Size (W×D×H) |
480 × 480 × 606 mm |
|
Inner Chamber : High quality stainless steel sheet Inner Chamber |
High quality stainless steel sheet |
|
Outer Shell : Cold rolling steel electrostatic spraying exterior Outer Shell |
Cold rolling steel electrostatic spraying exterior |
|
Load per Rack : 15 kg Load per Rack |
15 kg |
|
Shelf Space : 40 mm Shelf Space |
40 mm |
|
Packing Size (W×D×H) : 590×550×750mm Packing Size (W×D×H) |
590×550×750mm |
|
Net Weight : 42kg Net Weight |
42kg |
|
Gross Weight : 52kg Gross Weight |
52kg |
