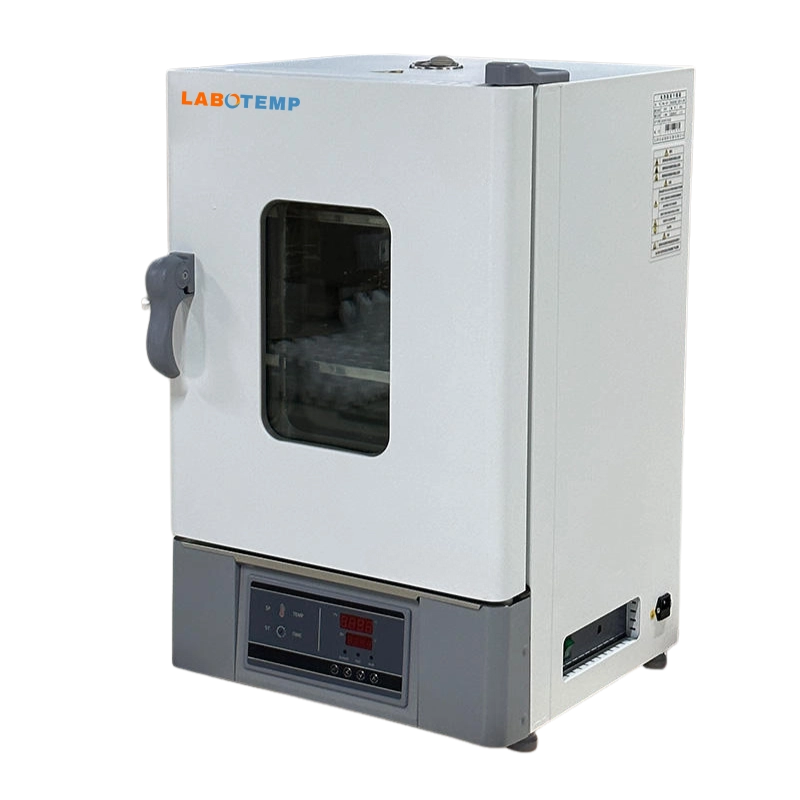

Labotemp Natural Convention Drying Oven FOV-12 is a compact scientific oven designed for controlled heating, drying and thermal processing in research laboratories, industrial testing facilities and quality control departments. This drying oven is suitable for applications such as glassware drying, sample conditioning, wax melting, baking and heat treatment where stable heating and uniform airflow are required. With a 30 L chamber capacity and a temperature operating range of RT+10 to 300 °C, the unit supports routine analytical work and industrial drying tasks requiring a dependable lab drying oven.
The unit features a mirror-finish stainless steel inner chamber and durable steel exterior, providing corrosion resistance and easy cleaning during daily use. A vertical air duct and built-in fan system circulate heated air evenly inside the chamber to maintain consistent temperature distribution. The PID intelligent temperature control system with microcomputer regulation ensures accurate heating with 0.1 °C resolution and ±1 °C stability for reliable results.
Why choose Labotemp Natural Convention Drying Oven FOV-12?
✓ Uniform Air Circulation: Built-in fan system maintains stable temperature distribution.
✓ Precise Temperature Regulation: PID microprocessor controller ensures accurate heating control.
✓ Reliable Manufacturer Design: Engineered by an experienced lab oven manufacturer for dependable performance.
|
Maximum Temperature : 300°C Maximum Temperature |
300°C |
|
Chamber Volume : 30 L Chamber Volume |
30 L |
|
Power Rating : 0.8 kW Power Rating |
0.8 kW |
|
Temperature Distribution Accuracy : ±3.0% Temperature Distribution Accuracy |
±3.0% |
|
Interior Material : Mirror stainless steel Interior Material |
Mirror stainless steel |
|
Exterior Material : Cold-rolled steel with chemical-resistant coating Exterior Material |
Cold-rolled steel with chemical-resistant coating |
|
Insulation Material : Alumina silicate fiber Insulation Material |
Alumina silicate fiber |
|
Heating Element : Finned stainless steel heating tube Heating Element |
Finned stainless steel heating tube |
|
Air Vent (Controller) : Ø28 mm × 1 (top) Air Vent (Controller) |
Ø28 mm × 1 (top) |
|

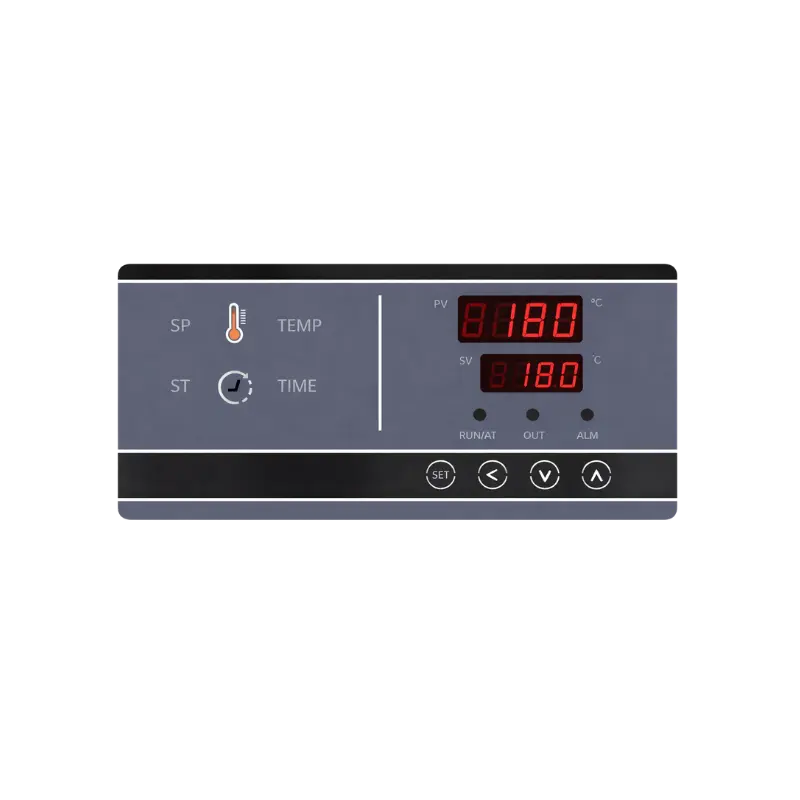

Temperature Control Method : Dual PID digital tube display Temperature Control Method |
Dual PID digital tube display |
|
Timer : 0–9999 minutes Timer |
0–9999 minutes |
|
Program Function : single-stage temperature control, 50 programs × 50 steps Program Function |
single-stage temperature control, 50 programs × 50 steps |
|
Sensor : Pt100 Sensor |
Pt100 |
|
Safety Device : Anti-rise device Safety Device |
Anti-rise device |
|
Internal Dimensions : 310×310×310mm Internal Dimensions |
310×310×310mm |
|
External Dimensions : 428×505×710mm External Dimensions |
428×505×710mm |
|
Package Dimensions : 552×578×840mm Package Dimensions |
552×578×840mm |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Number of Layers : 5 / 2 Number of Layers |
5 / 2 |
|
Partition Spacing : 40 mm Partition Spacing |
40 mm |
|
Power Supply : AC 220V / 50–60 Hz 3.6A Power Supply |
AC 220V / 50–60 Hz 3.6A |
|
Temperature Fluctuation : ±1.0°C Temperature Fluctuation |
±1.0°C |
|
Net / Gross Weight : 32 / 37kg Net / Gross Weight |
32 / 37kg |
