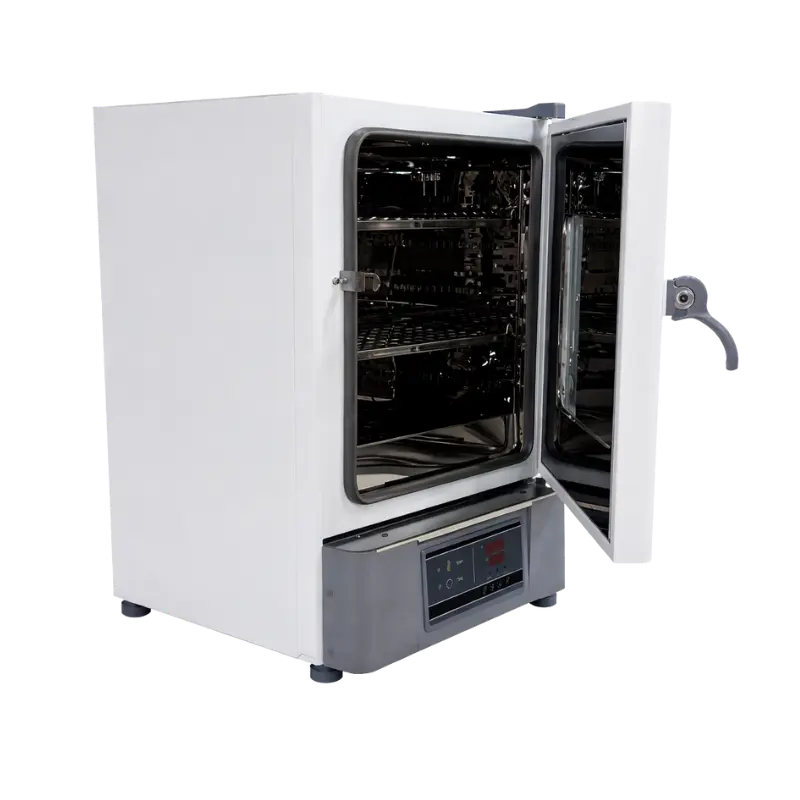

Labotemp Natural Convection Drying oven FOV-15 is a reliable laboratory drying oven designed for controlled heating, drying, and thermal processing in research laboratories, pharmaceutical facilities, industrial plants, and quality control environments. This laboratory oven is suitable for applications such as glassware drying, sample preparation, sterilization, and material conditioning where stable temperature control is essential. With an 85L chamber capacity and a temperature range of RT+10 to 300 °C, the unit supports routine laboratory testing and industrial drying processes requiring consistent heating performance.
An intelligent PID temperature controller enables accurate temperature regulation and reliable operation. Practical functions such as fixed-value control, timed operation, automatic stop, and scheduled start simplify daily laboratory work and improve operational efficiency. In addition, over-temperature protection and temperature-limit alarms enhance operational safety and help maintain stable high-temperature performance.
Why choose Labotemp Natural Convection Drying oven FOV-15?
✓ Uniform Heating Performance: Forced convection airflow ensures stable temperature distribution.
✓ Accurate Temperature Control: PID controller provides precise thermal regulation.
✓ Durable Construction: Stainless steel chamber and corrosion-resistant exterior ensure long service life.
|
Maximum Temperature : 300°C Maximum Temperature |
300°C |
|
Chamber Volume : 85 L Chamber Volume |
85 L |
|
Power Rating : 2.0 kW Power Rating |
2.0 kW |
|
Temperature Distribution Accuracy : ±3.0% Temperature Distribution Accuracy |
±3.0% |
|
Interior Material : Mirror stainless steel Interior Material |
Mirror stainless steel |
|
Exterior Material : Cold-rolled steel with chemical-resistant coating Exterior Material |
Cold-rolled steel with chemical-resistant coating |
|
Insulation Material : Alumina silicate fiber Insulation Material |
Alumina silicate fiber |
|
Heating Element : Finned stainless steel heating tube Heating Element |
Finned stainless steel heating tube |
|
Air Vent (Controller) : Ø28 mm × 1 (top) Air Vent (Controller) |
Ø28 mm × 1 (top) |
|
Temperature Control Method : Dual PID digital tube display Temperature Control Method |
Dual PID digital tube display |
|
Timer : 0–9999 minutes Timer |
0–9999 minutes |
|
Program Function : single-stage temperature control, 50 programs × 50 steps Program Function |
single-stage temperature control, 50 programs × 50 steps |
|
Sensor : Pt100 Sensor |
Pt100 |
|
Safety Device : Anti-rise device Safety Device |
Anti-rise device |
|
Internal Dimensions : 450×450×450mm Internal Dimensions |
450×450×450mm |
|
External Dimensions : 567×640×853mm External Dimensions |
567×640×853mm |
|
Package Dimensions : 692×718×980mm Package Dimensions |
692×718×980mm |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Number of Layers : 8 / 2 Number of Layers |
8 / 2 |
|
Partition Spacing : 40 mm Partition Spacing |
40 mm |
|
Power Supply : AC 220V 50–60 Hz / 8.2A Power Supply |
AC 220V 50–60 Hz / 8.2A |
|
Temperature Fluctuation : ±1.0°C Temperature Fluctuation |
±1.0°C |
|
Net / Gross Weight : 50 / 58kg Net / Gross Weight |
50 / 58kg |
