Vertical Autoclave VEA-11

Name: Vertical Autoclave VEA-11
Brand: Labotemp
SKU: VEA-11
Price: 5311.00 USD
Availability: InStock
Rating: 4.8 (725 reviews)

Labotemp Fully Automatic Vertical Autoclave VEA 11 provides 50 L steam sterilization capacity with automatic control and drying functionality for laboratory and healthcare applications. Designed with a high quality stainless steel construction, the vertical steam sterilizer operates at a rated working temperature of 134°C and rated working pressure of 0.22 MPa. Its microcomputer control system allows sterilization parameters to be set according to the application, while the hand wheel translation and quick opening structure support convenient chamber access.

The VEA 11 incorporates three times pre vacuum, a safety interlocking device, LED touch screen display, self expanding seal, and automatic protection against over temperature, over pressure, low water level, and dry burning. Automatic discharge of cold air and steam exhaust after sterilization support the sterilization cycle, while the integrated drying function helps prepare sterilized materials for subsequent handling. With a 50 L chamber, 3.5 kW power, 4 to 120 minute sterilization time setting range, and stainless steel bucket or basket configuration, it supports routine sterilization of laboratory and temperature resistant materials.

Why Choose Labotemp Vertical Autoclave VEA 11?

✓ Three Times Pre Vacuum: Pre vacuum operation supports air removal before steam sterilization.
✓ Automatic Safety Protection: Provides protection against over temperature, over pressure, low water level, and dry burning.
✓ Automatic Sterilization and Drying: Supports automatic steam exhaust, cold air discharge, sterilization cycle control, and drying after sterilization.

$5311

Datasheet

General Specifications
Product Type : Vertical Autoclave Product Type	Vertical Autoclave
Chamber Volume : 50 L Chamber Volume	50 L
Design Pressure : 0.25 MPa Design Pressure	0.25 MPa
Design Temperature : 139°C Design Temperature	139°C
Rated Working Pressure : 0.22 MPa Rated Working Pressure	0.22 MPa
Rated Working Temperature : 134°C Rated Working Temperature	134°C
Sterilization Temperature Setting Range : 116 to 134°C Sterilization Temperature Setting Range	116 to 134°C
Sterilization Time Setting Range : 4 to 120 minutes Sterilization Time Setting Range	4 to 120 minutes
Electrical Specifications
Power : 3.5 kW Power	3.5 kW
Voltage : AC 220 V, 50 Hz Voltage	AC 220 V, 50 Hz
Chamber and Loading Specifications
Chamber Dimensions : Ø400 × 525 mm Chamber Dimensions	Ø400 × 525 mm
Bucket Dimensions : Ø380 × 430 mm Bucket Dimensions	Ø380 × 430 mm
Basket Dimension : Ø360 × 280 × 1 Basket Dimension	Ø360 × 280 × 1
Outer Dimensions : 630 × 500 × 1180 mm Outer Dimensions	630 × 500 × 1180 mm
Packing Size : 800 × 600 × 1230 mm Packing Size	800 × 600 × 1230 mm
Construction and Operation
Control System : Microcomputer automatic control Control System	Microcomputer automatic control
Display : LED touch screen Display	LED touch screen
Pre Vacuum : Three times Pre Vacuum	Three times
Door Opening : Hand wheel translation and quick opening structure Door Opening	Hand wheel translation and quick opening structure
Chamber Material : High quality stainless steel Chamber Material	High quality stainless steel
Seal : Self expanding seal Seal	Self expanding seal
Sterilization Function : Automatic Sterilization Function	Automatic
Drying Function : Automatic drying Drying Function	Automatic drying
Steam Generation : Automatic water, external steam generator Steam Generation	Automatic water, external steam generator
Cold Air Discharge : Automatic Cold Air Discharge	Automatic
Steam Exhaust : Automatic after sterilization Steam Exhaust	Automatic after sterilization
Safety Protection : Over temperature, over pressure, low water level, anti dry burning Safety Protection	Over temperature, over pressure, low water level, anti dry burning
Alarm : Buzzer reminder after sterilization Alarm	Buzzer reminder after sterilization
Printer : Internal printer Printer	Internal printer
Weight
Net Weight : 118 kg Net Weight	118 kg
Gross Weight : 138 kg Gross Weight	138 kg

3× Pre-Vacuum ➤ 3× Pre-Vacuum
Microcomputer automatic control allows sterilization parameters to be set according to the application. ➤ Microcomputer automatic control allows sterilization parameters to be set according to the application.
50 L vertical chamber provides practical capacity for routine laboratory sterilization. ➤ 50 L vertical chamber provides practical capacity for routine laboratory sterilization.
High quality stainless steel construction supports durability and routine laboratory use. ➤ High quality stainless steel construction supports durability and routine laboratory use.
LED touch screen display provides convenient operation and viewing of sterilization parameters. ➤ LED touch screen display provides convenient operation and viewing of sterilization parameters.
Three times pre vacuum supports effective air removal before the sterilization cycle. ➤ Three times pre vacuum supports effective air removal before the sterilization cycle.
Safety interlocking device helps prevent unsafe door opening during operation. ➤ Safety interlocking device helps prevent unsafe door opening during operation.
Self expanding seal supports secure chamber sealing during sterilization. ➤ Self expanding seal supports secure chamber sealing during sterilization.
Automatic drying function helps dry sterilized materials after the sterilization cycle. ➤ Automatic drying function helps dry sterilized materials after the sterilization cycle.

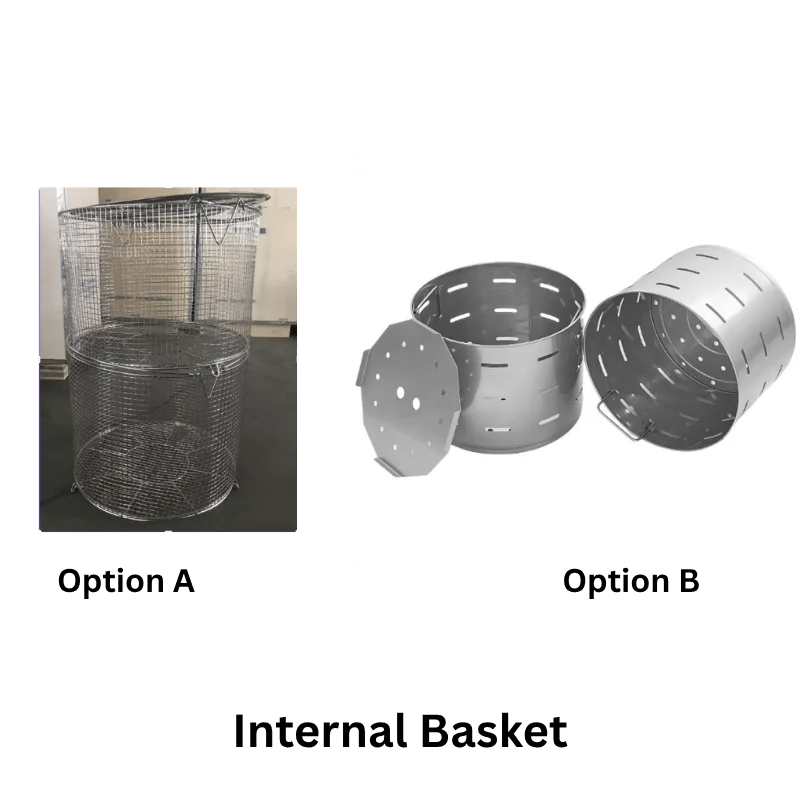

Stainless steel bucket or basket supports organized loading of sterilization materials. ➤ Stainless steel bucket or basket supports organized loading of sterilization materials.
Automatic protection provides over temperature, over pressure, low water level, and anti dry burning protection. ➤ Automatic protection provides over temperature, over pressure, low water level, and anti dry burning protection.
Automatic water supply supports convenient operation of the sterilization cycle. ➤ Automatic water supply supports convenient operation of the sterilization cycle.
Automatic discharge of cold air helps remove residual air from the chamber. ➤ Automatic discharge of cold air helps remove residual air from the chamber.
Automatic steam exhaust after sterilization supports controlled completion of the cycle. ➤ Automatic steam exhaust after sterilization supports controlled completion of the cycle.
Buzzer reminder and automatic stop indicate completion of the sterilization process. ➤ Buzzer reminder and automatic stop indicate completion of the sterilization process.
Internal printer provides printed records of sterilization cycles. ➤ Internal printer provides printed records of sterilization cycles.
Standard test interface supports sterilization verification procedures. ➤ Standard test interface supports sterilization verification procedures.

Microbiology Laboratories: Suitable for sterilizing culture media, laboratory glassware, pipettes, tubes, and other heat resistant laboratory materials Microbiology Laboratories
Suitable for sterilizing culture media, laboratory glassware, pipettes, tubes, and other heat resistant laboratory materials
Research Laboratories: Supports routine steam sterilization of laboratory instruments, glassware, media, and other compatible materials used in research workflows Research Laboratories
Supports routine steam sterilization of laboratory instruments, glassware, media, and other compatible materials used in research workflows
Pharmaceutical Laboratories: Suitable for sterilization of compatible laboratory equipment, containers, and materials used in pharmaceutical testing and preparation Pharmaceutical Laboratories
Suitable for sterilization of compatible laboratory equipment, containers, and materials used in pharmaceutical testing and preparation
Biotechnology Laboratories: Supports sterilization of laboratory materials and culture media used in biotechnology workflows Biotechnology Laboratories
Supports sterilization of laboratory materials and culture media used in biotechnology workflows
Hospitals and Healthcare Facilities: Suitable for sterilizing compatible heat resistant instruments and laboratory materials where steam sterilization is required Hospitals and Healthcare Facilities
Suitable for sterilizing compatible heat resistant instruments and laboratory materials where steam sterilization is required
Educational Institutions: Useful for sterilizing laboratory glassware, culture media, and other heat resistant materials used in teaching laboratories Educational Institutions
Useful for sterilizing laboratory glassware, culture media, and other heat resistant materials used in teaching laboratories
