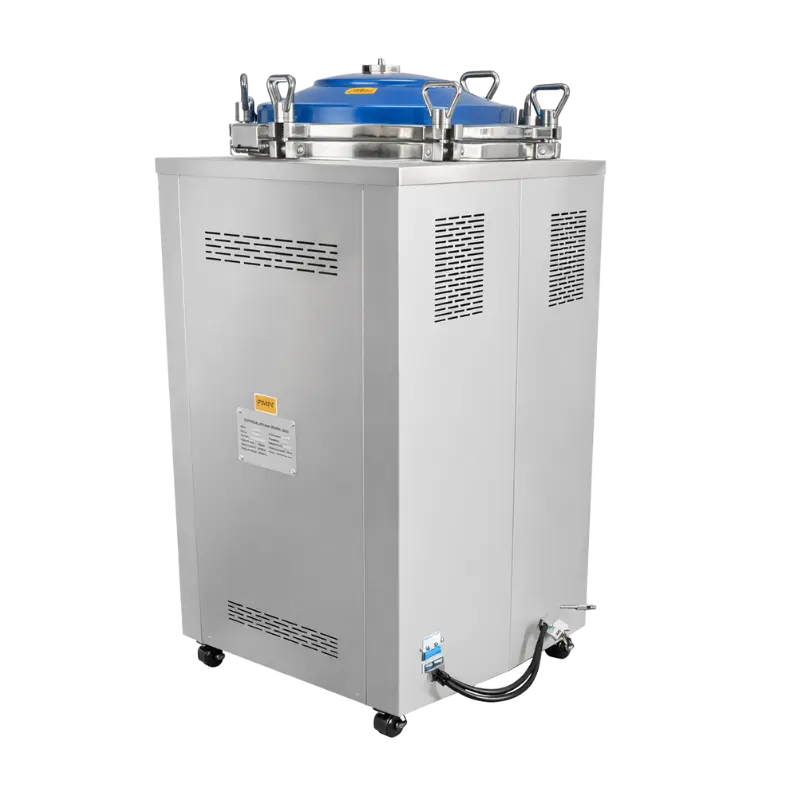

Labotemp Vertical Autoclave Machine VEA-01 is a compact 35 liter Medical Autoclave engineered for precise and safe sterilization in research labs, diagnostic centers, universities, and small healthcare facilities. As an experienced Autoclave Manufacturer, Labotemp designs this Autoclave Machine with a high quality stainless steel chamber, microcomputer automatic control, and an intuitive digital display with touch interface. The system allows flexible sterilization parameter settings, ensuring consistent performance for glassware, culture media, surgical instruments, and laboratory tools where controlled steam sterilization at up to 134°C is essential.
The VEA-01 operates at a rated working pressure of 0.22 MPa with a sterilization temperature range of 116°C to 134°C and adjustable cycle time from 4 to 120 minutes. Safety is integrated through over temperature protection, over pressure self discharge, low water level protection, and anti dry burning safeguards. Automatic exhaust steam, cooling air function, buzzer reminder, and optional external printer enhance usability and documentation.
Why Choose Labotemp Vertical Autoclave VEA-01?
✓ Compact Capacity: 35 liter chamber perfectly suited for small to mid scale laboratory and clinical sterilization workloads
✓ Advanced Safety System: Integrated over temperature, over pressure, and low water level protection ensuring stable and secure sterilization cycles
✓ Certified Quality Assurance: Manufactured under ISO 13485 compliant quality practices and CE certified standards for safety, performance, and global acceptance
| General Specifications | |
|
Volume : 35 L Volume |
35 L |
|
Working Temperature : 134°C Working Temperature |
134°C |
|
Voltage : AC 220 V, 50 Hz Voltage |
AC 220 V, 50 Hz |
|
Power : 2.5 kW Power |
2.5 kW |
| Sterilization Parameters | |
|
Design Temperature : 139°C Design Temperature |
139°C |
|
Sterilization Temp. Setting Range : 116°C–134°C Sterilization Temp. Setting Range |
116°C–134°C |
|
Design Pressure : 0.25 MPa Design Pressure |
0.25 MPa |
|
Sterilization Time Setting Range : 4–120 min Sterilization Time Setting Range |
4–120 min |
|
Rated Working Pressure : 0.22 MPa Rated Working Pressure |
0.22 MPa |
| Chamber Dimensions | |
|
Chamber Volume : 300 × 500 mm Chamber Volume |
300 × 500 mm |
|
Bucket Dimension : 280 × 400 mm Bucket Dimension |
280 × 400 mm |
|
Basket Dimension : 320 × 240 × 2 Basket Dimension |
320 × 240 × 2 |
| Physical Dimensions | |
|
Outer Dimension (L × W × H) : 400 × 400 × 860 mm Outer Dimension (L × W × H) |
400 × 400 × 860 mm |
|
Packing Size (L × W × H) : 550 × 500 × 1030 mm Packing Size (L × W × H) |
550 × 500 × 1030 mm |
|
Gross Weight : 58 kg Gross Weight |
58 kg |
|
Net Weight : 41 kg Net Weight |
41 kg |
Working Temperature: 134°C
Volume: 35 L
Voltage: AC 220 V, 50 Hz
Sterilization Time Setting Range: 4–120 min
Working Temperature: 134°C
Volume: 75 L
Voltage: AC 220 V, 50 Hz
Sterilization Time Setting Range: 4–120 min
Working Temperature: 134°C
Volume: 120 L
Voltage: AC 220 V, 50 Hz
Sterilization Time Setting Range: 4–120 min
Working Temperature: 134°C
Volume: 35 L
Voltage: AC 220 V, 50 Hz
Sterilization Temperature Setting Range: 116°C–134°C
Working Temperature: 134°C
Volume: 75 L
Voltage: AC 220 V, 50 Hz
Sterilization Temperature Range: 116–134°C
Working Temperature: 134°C
Volume: 50 L
Voltage: AC 220 V, 50 Hz
Sterilization Time Range: 4–120 min
Working Temperature: 134°C
Volume: 50 L
Voltage: AC 220 V, 50 Hz
Sterilizer Type: Drying Vertical Steam Sterilizer
Working Temperature: 134°C
Volume: 100 L
Voltage: AC 220 V, 50 Hz
Sterilization Time: 4–120 min
Voltage / Frequency: AC 220 V, 50 Hz
Sterilization Time Range: 4–120 minutes
Sterilization Temperature Range: 116°C–134°C
Sterilization Parameters:
Voltage: AC 220 V, 50 Hz
Sterilization Time Setting Range: 4–120 min
Sterilization Temperature Setting Range: 50°C–134°C
Rated Working Temperature: 134°C
Voltage / Frequency: AC 220 V, 50 Hz
Sterilization Time Range: 4–120 minutes
Sterilization Temperature Range: 116°C–134°C
Sterilization Parameters:
