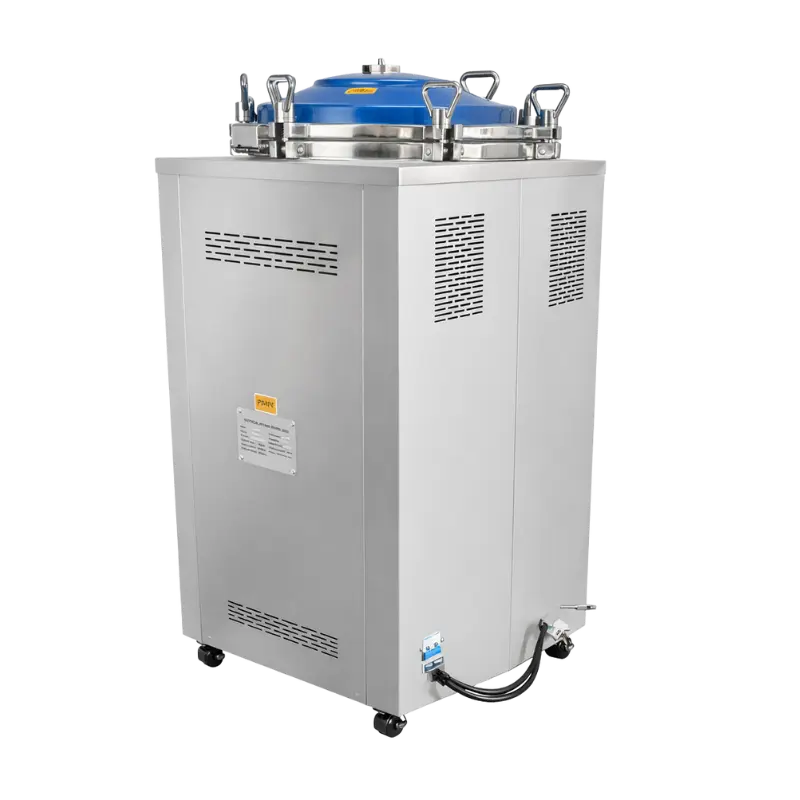

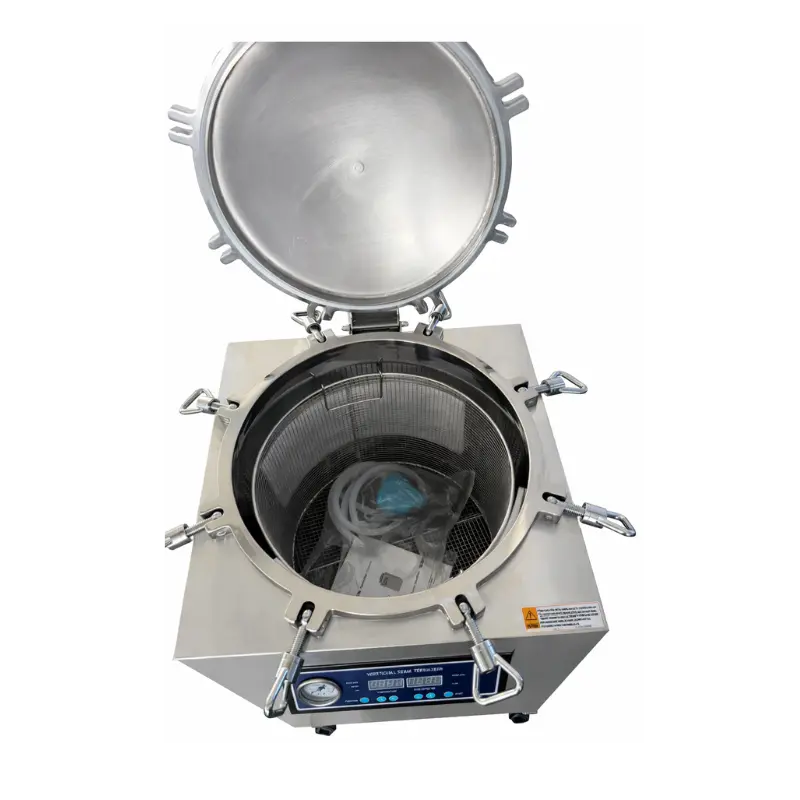

Labotemp Vertical Autoclave Machine VEA-03 is a 120 liter Steam Sterilize designed for reliable sterilization in hospitals, pharmaceutical labs, research institutes, and central sterile departments. Built with a durable stainless steel chamber and secure bolt locking system, it maintains stable steam pressure at a rated working pressure of 0.22 MPa. The sterilization temperature range of 116°C to 134°C with adjustable cycle time from 4 to 120 minutes supports processing of glassware, culture media, surgical instruments, dressing materials, and laboratory equipment requiring controlled steam sterilization.
The VEA-03 features microcomputer automatic control with digital display and touch interface for accurate parameter adjustment. Integrated protections include over temperature control, over pressure self discharge, low water level cutoff, and anti dry heating safeguards. Automatic cooling air and steam exhaust improve turnaround efficiency, while buzzer alert and optional external printer assist with monitoring.
Why Choose Labotemp Vertical Autoclave VEA-03?
✓ Consistent Cycle Accuracy: Stable temperature and pressure control reduces repeat sterilization cycles
✓ User Focused Controls: Programmable interface minimizes operator error and improves workflow
✓ Integrated Safety System: Multi layer protection ensures secure and reliable long term operation
| General Specifications | |
|
Volume : 120 L Volume |
120 L |
|
Working Temperature : 134°C Working Temperature |
134°C |
|
Voltage : AC 220 V, 50 Hz Voltage |
AC 220 V, 50 Hz |
|
Power : 4.5 kW Power |
4.5 kW |
| Sterilization Parameters | |
|
Design Temperature : 139°C Design Temperature |
139°C |
|
Sterilization Temp. Setting Range : 116°C–134°C Sterilization Temp. Setting Range |
116°C–134°C |
|
Design Pressure : 0.25 MPa Design Pressure |
0.25 MPa |
|
Sterilization Time Setting Range : 4–120 min Sterilization Time Setting Range |
4–120 min |
|
Rated Working Pressure : 0.22 MPa Rated Working Pressure |
0.22 MPa |
| Chamber Dimensions | |
|
Chamber Volume : 450 × 760 Chamber Volume |
450 × 760 |
|
Bucket Dimension : 420 × 680 Bucket Dimension |
420 × 680 |
| Physical Dimensions | |
|
Outer Dimension (L × W × H) : 555 × 599 × 1200 Outer Dimension (L × W × H) |
555 × 599 × 1200 |
|
Packing Size (L × W × H) : 690 × 650 × 1330 Packing Size (L × W × H) |
690 × 650 × 1330 |
|
Gross Weight : 108 kg Gross Weight |
108 kg |
|
Net Weight : 82 kg Net Weight |
82 kg |
