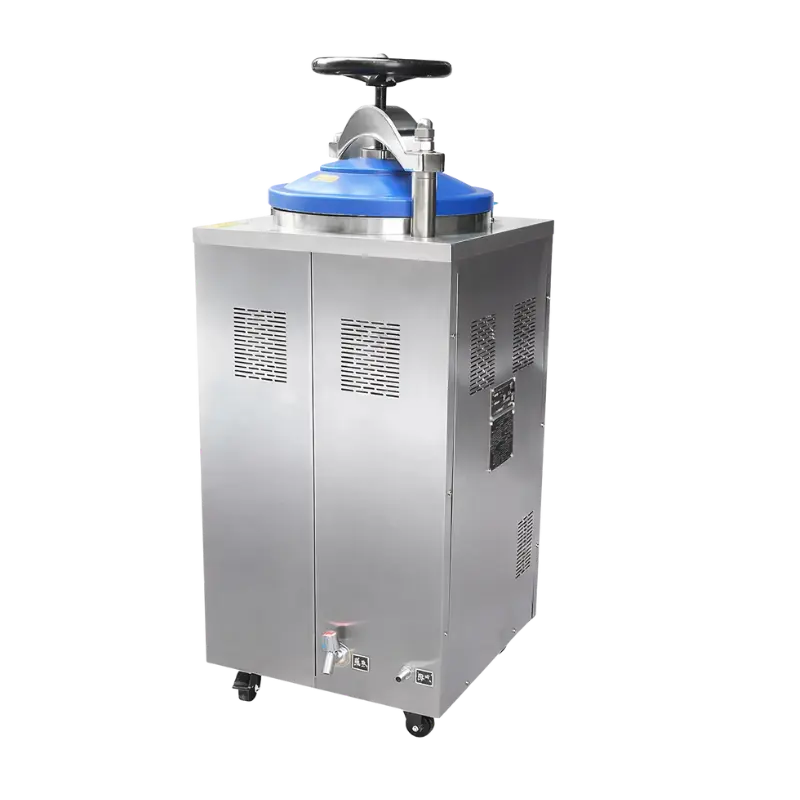

Labotemp Vertical Steam Sterilizer VEA-06 is a 50 liter vertical autoclave with integrated drying function, designed for laboratories, blood banks, research institutes, and clinical facilities that require reliable steam sterilization with improved post cycle dryness. The unit features a stainless steel chamber with dimensions Ø350 × 525 mm, providing adequate space for medium batch processing of glassware, wrapped instruments, dressing materials, and laboratory containers. It supports a sterilization temperature range of 116°C to 134°C with adjustable cycle time from 4 to 120 minutes, ensuring flexibility for varied sterilization protocols.

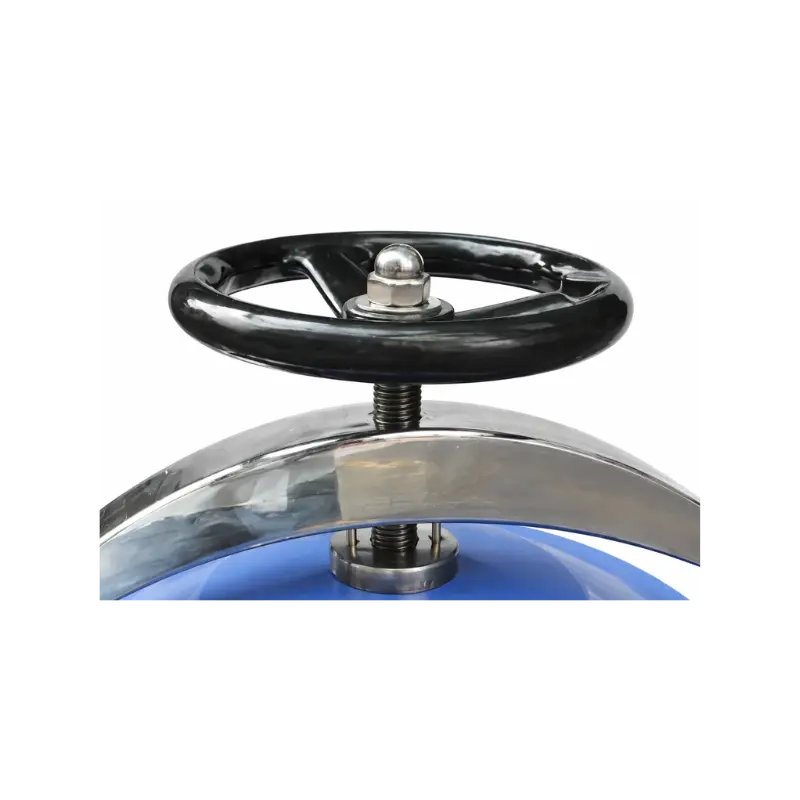

Built with a hand wheel quick opening structure and self expanding seal, this VEA-06 ensures secure closure and pressure stability at a rated working pressure of 0.22 MPa. The microcomputer automatic control system with digital display allows flexible parameter setting and easy monitoring. Automatic cold air discharge and automatic steam exhaust at the end of the cycle assist in reducing residual moisture. Safety interlocking device, over temperature protection, over pressure self discharge, low water level cutoff, and anti dry heating protection provide multi layer operational safety.
Why Choose Labotemp Vertical Autoclave VEA-06?
✓ Enhanced Drying Support: Improves instrument readiness and reduces manual post processing
✓ Stable Heating Performance: 3.5 kW power ensures uniform steam generation
✓ Medium Batch Efficiency: Optimized chamber size for balanced capacity and workflow control
| General Specifications | |
|
Volume : 50 L Volume |
50 L |
|
Working Temperature : 134°C Working Temperature |
134°C |
|
Power : 3.5 kW Power |
3.5 kW |
|
Voltage : AC 220 V, 50 Hz Voltage |
AC 220 V, 50 Hz |
| Sterilization Parameters | |
|
Design Temperature : 139°C Design Temperature |
139°C |
|
Sterilization Temperature Range : 116–134°C Sterilization Temperature Range |
116–134°C |
|
Design Pressure : 0.25 MPa Design Pressure |
0.25 MPa |
|
Rated Working Pressure : 0.22 MPa Rated Working Pressure |
0.22 MPa |
|
Sterilization Time Range : 4–120 min Sterilization Time Range |
4–120 min |
| Chamber Dimensions | |
|
Chamber Size (mm) : 350 × 525 Chamber Size (mm) |
350 × 525 |
|
Bucket Dimension (mm) : 330 × 460 Bucket Dimension (mm) |
330 × 460 |
|

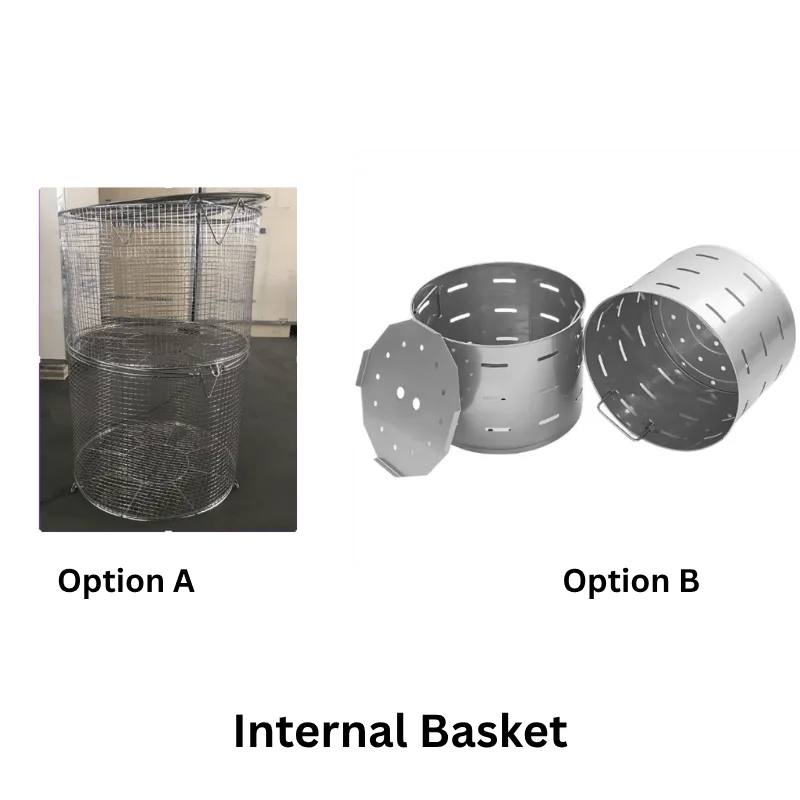

Basket Dimension (mm) : 320 × 240 × 2 Basket Dimension (mm) |
320 × 240 × 2 |
| Operation | |
|
Air Removal : Natural/Steam displacement Air Removal |
Natural/Steam displacement |
| Physical Dimensions | |
|
Outer Dimension (mm) : 480 × 480 × 1120 Outer Dimension (mm) |
480 × 480 × 1120 |
|
Packing Size (mm) : 580 × 630 × 1230 Packing Size (mm) |
580 × 630 × 1230 |
|
Gross Weight : 106 kg Gross Weight |
106 kg |
|
Net Weight : 80 kg Net Weight |
80 kg |
