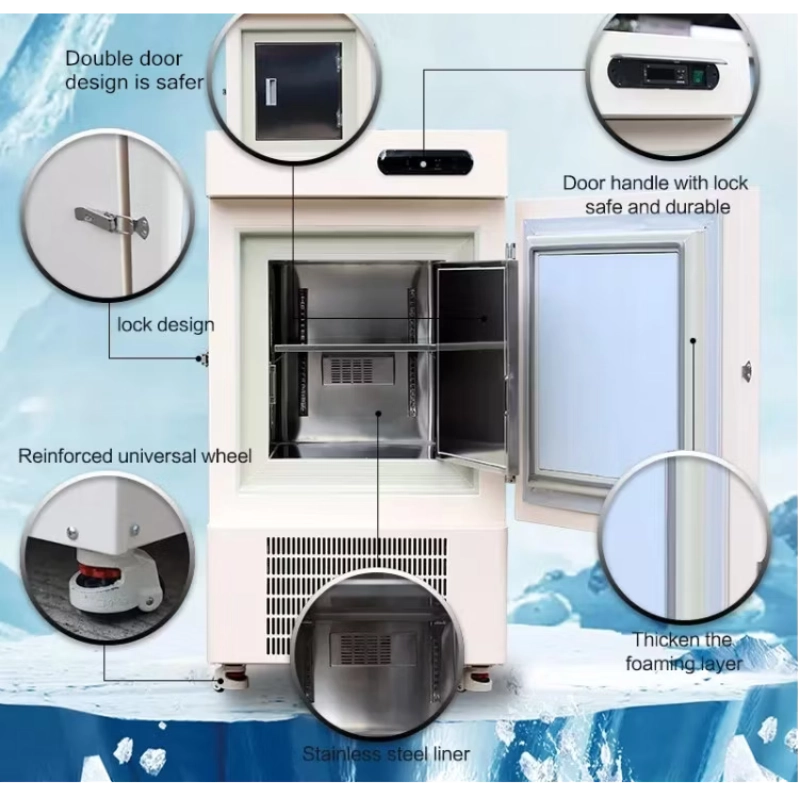

Labotemp Biomedical and Plasma Freezer BPF-02 is a reliable Biomedical and Plasma Freezer designed for safe storage of temperature-sensitive medical and laboratory materials. With a precise temperature range of -10°C to -25°C and a 108L capacity, it ensures stable preservation of plasma, vaccines, reagents, and biological samples. The stainless steel 304 chamber provides a hygienic, corrosion-resistant environment, while the direct refrigeration system supports fast cooling and consistent internal conditions, making it suitable for hospitals, laboratories, and research facilities.
Engineered for dependable performance, this Plasma Freezer features a high-efficiency SECOP compressor combined with copper condenser and evaporator for improved heat exchange and rapid temperature recovery. The digital control system ensures accurate monitoring, while multiple inner doors reduce cold air loss during access. Built with energy-efficient refrigerant and robust construction, this Biomedical Freezer delivers long-term reliability, stable operation, and secure storage for critical applications.
Why choose Labotemp Biomedical and Plasma Freezer BPF-02?
✓ Stable Plasma Freezer Performance: Maintains consistent cooling for sensitive medical samples
✓ Energy-Efficient Operation: Eco-friendly refrigerant ensures reliable performance
✓ Reliable Safety Protection: Stable cooling system supports secure storage conditions
|
Model : BPF-02 Model |
BPF-02 |
|
Capacity : 108L Capacity |
108L |
|
Temperature Range : -10 to -25 Degree Temperature Range |
-10 to -25 Degree |
|
Rated Voltage/Frequency : 220/50 (V/Hz) Rated Voltage/Frequency |
220/50 (V/Hz) |
|
Power : 280W Power |
280W |
|
Power Consumption : 2.7 kWh/24h Power Consumption |
2.7 kWh/24h |
|
Compressor : SECOP (1 set) Compressor |
SECOP (1 set) |
|
Condenser & Evaporator : Made of Copper Condenser & Evaporator |
Made of Copper |
|
Inner Material : 304 Stainless Steel Inner Material |
304 Stainless Steel |
|
Refrigeration Type : Direct Refrigeration Refrigeration Type |
Direct Refrigeration |
|
Refrigerant : Mixture Refrigerant Refrigerant |
Mixture Refrigerant |
|
External Dimensions : 730x700x1260 External Dimensions |
730x700x1260 |
|
Internal Dimensions : 460x460x510mm Internal Dimensions |
460x460x510mm |
|
Packaging Dimensions : 790*760*1395mm Packaging Dimensions |
790*760*1395mm |
|
Inner Doors : 3 Inner Doors, 304 Stainless Steel Inner Doors |
3 Inner Doors, 304 Stainless Steel |
|
Transport Package : Plywood Box Transport Package |
Plywood Box |
|
Net Weight : 107kg Net Weight |
107kg |
|
Gross Weight : 133kg Gross Weight |
133kg |
Voltage : 220V/50Hz ,110v60Hz or DC12/24V
Thickness of foaming layer : 100mm
Temperature display : Digital Data display
Temperature control : Electronic temperature control
