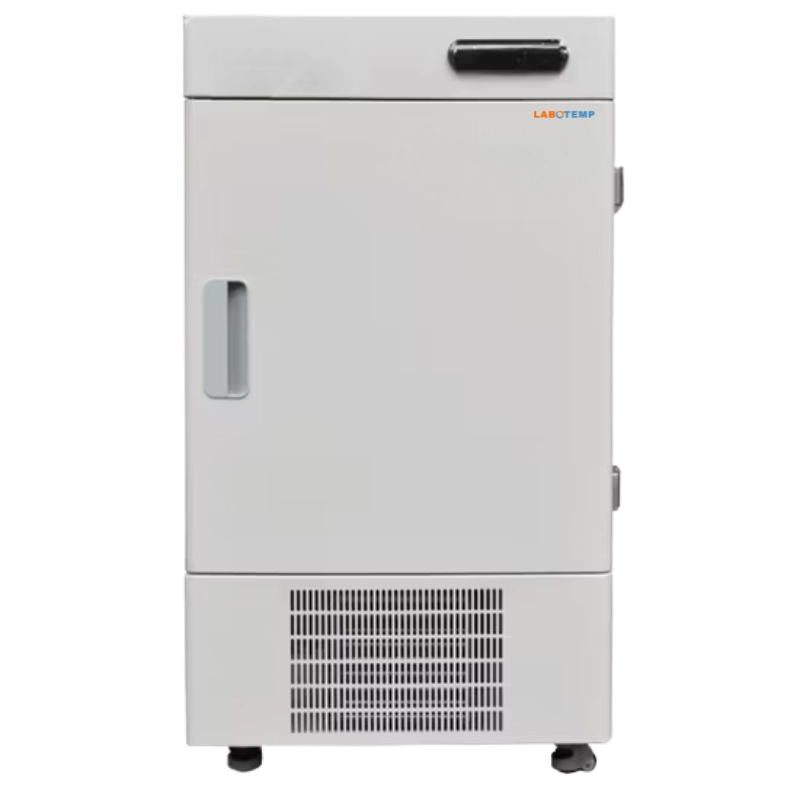

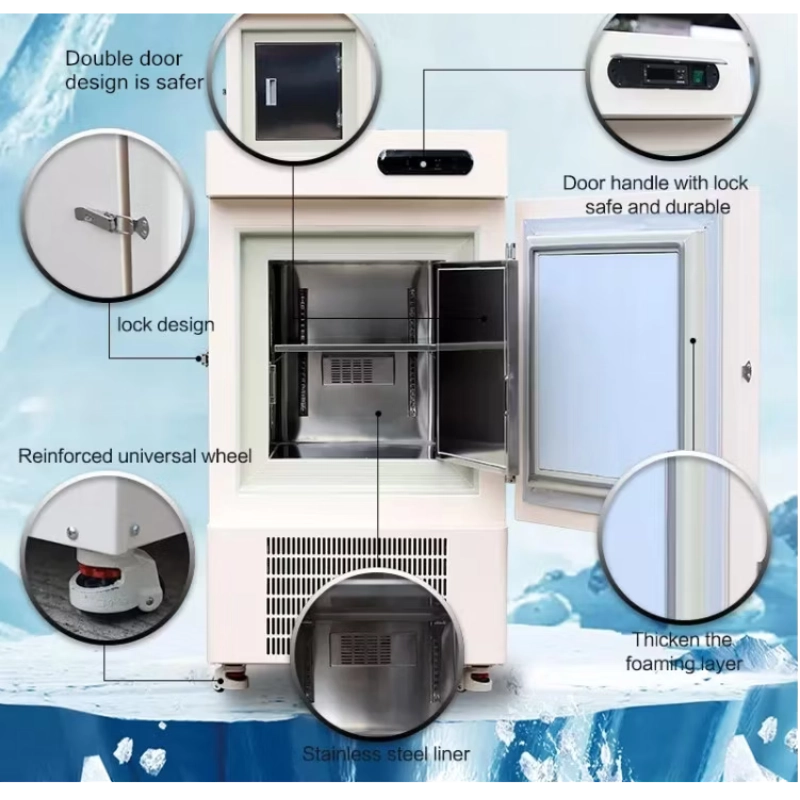

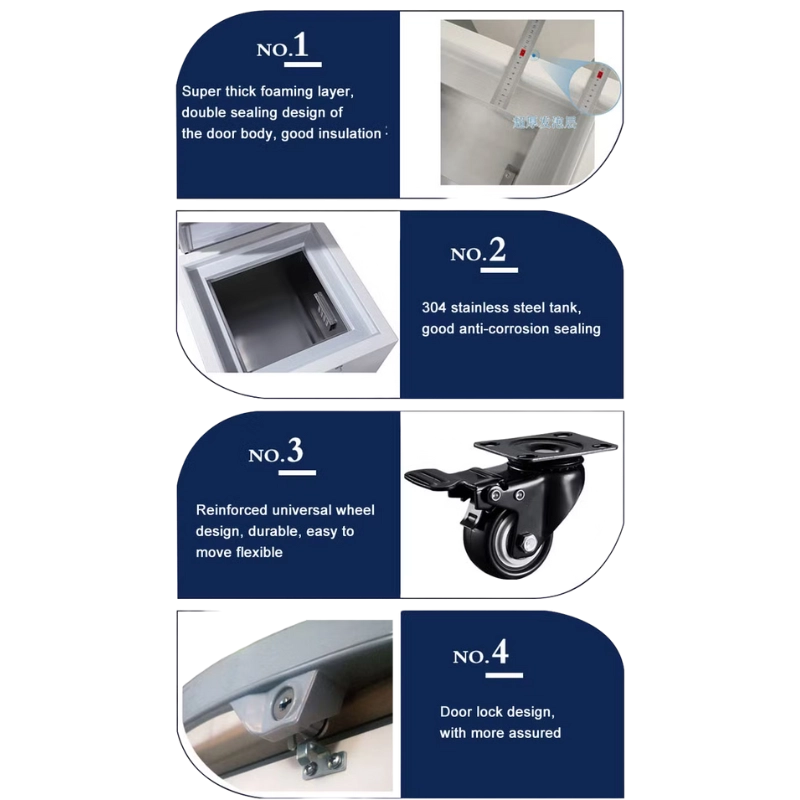

Labotemp Biomedical and Plasma Freezer BPF-06 is a high-capacity Biomedical and Plasma Freezer designed for reliable low-temperature storage in clinical, research, and laboratory environments. With an adjustable temperature range of -25°C to -60°C and a 108L chamber, it ensures stable preservation of plasma, vaccines, reagents, and biological samples. The stainless steel 304 interior provides a hygienic, corrosion-resistant environment, while thick insulation enhances thermal stability and reduces temperature fluctuations during continuous operation.
Engineered for consistent performance, this Plasma Freezer integrates a high-efficiency Secop compressor with an advanced electronic temperature control system for precise regulation. The PTC sensor and digital display enable accurate real-time monitoring, while Germany EBM condenser fans improve airflow and cooling stability. Built-in audible and visual alarms enhance operational safety by alerting users to temperature deviations. Designed for durability and energy-efficient operation, this Biomedical Freezer supports long-term, dependable storage across laboratories, hospitals, and research facilities.
Why choose Labotemp Biomedical and Plasma Freezer BPF-06?
✓ Stable Plasma Freezer Performance: Maintains consistent -60°C storage for sensitive samples
✓ Energy-Efficient Cooling System: Fluorine-free refrigerant ensures reliable and eco-friendly operation
✓ Advanced Safety Monitoring: Alarm system protects valuable samples during operation
|
Model : BPF-06 Model |
BPF-06 |
|
Net Capacity : 108L Net Capacity |
108L |
|
Temperature Range : -25~-60°C, adjustable Temperature Range |
-25~-60°C, adjustable |
|
Compressor : Secop Compressor |
Secop |
|
Voltage : 220V50Hz Voltage |
220V50Hz |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input Power : 440W Input Power |
440W |
|
Power consumption : 5.5kw.h/24h Power consumption |
5.5kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : Data display Temperature display |
Data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : Germany brand EBM Condenser fans |
Germany brand EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 120mm Thickness of foaming layer |
120mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
Net weight / gross weight : 107/133kg Net weight / gross weight |
107/133kg |
|
External dimensions : 700*730*1260mm External dimensions |
700*730*1260mm |
|
Internal dimensions : 460*460*510mm Internal dimensions |
460*460*510mm |
|
Package size : 785*800*1430mm Package size |
785*800*1430mm |
|
loading quantity : 22 pcs/20'GP loading quantity |
22 pcs/20'GP |
