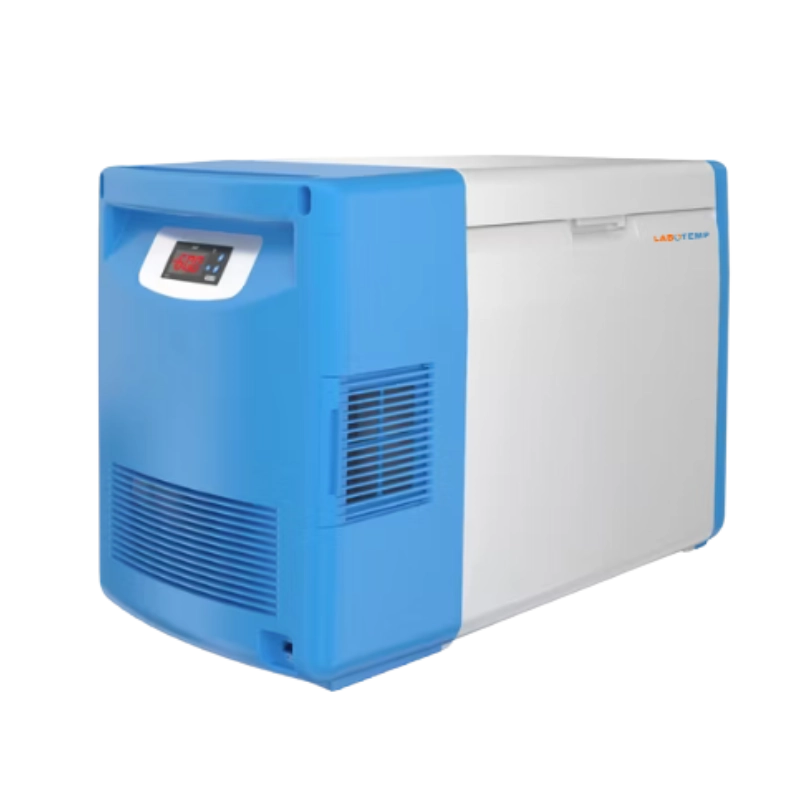

Labotemp Biomedical Freezer BPF-01 is a compact and efficient Biomedical and Plasma Freezer designed for reliable storage of temperature-sensitive medical and laboratory samples. With an adjustable temperature range of 0°C to -25°C, it ensures stable conditions for preserving plasma, vaccines, reagents, and biological materials in hospitals, blood banks, research laboratories, and diagnostic centers. The 25L stainless steel chamber offers a hygienic, corrosion-resistant environment, while the 100 mm insulation layer enhances temperature stability and minimizes energy loss during continuous operation.
Engineered for dependable daily use, this Plasma Freezer features a high-quality SECOP compressor combined with a single compressor refrigeration system for consistent cooling performance. The electronic temperature control with digital display and PTC probe ensures accurate monitoring, while audible and visual alarms enhance operational safety. Designed with a top-opening door for easy access and compact footprint, this Biomedical Freezer is ideal for facilities requiring reliable, space-efficient cold storage solutions with low power consumption.
Why choose Labotemp Biomedical Freezer BPF-01?
✓ Energy-Efficient Operation: Low power consumption with reliable compressor-based cooling
✓ Enhanced Safety Features: Audible and visual alarms support secure sample storage
✓ Trusted Pharmaceutical Freezer Design: Built for durability, hygiene, and long-term laboratory use
|
Model : BPF-01 Model |
BPF-01 |
|
Capacity : 25L Capacity |
25L |
|
Internal temperature : 0°C to -25°C, adjustable Internal temperature |
0°C to -25°C, adjustable |
|
Compressor : SECOP Compressor |
SECOP |
|
Voltage : 220V/50Hz ,110v60Hz or DC12/24V Voltage |
220V/50Hz ,110v60Hz or DC12/24V |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input power : 60W Input power |
60W |
|
Power consumption : 1.1kw.h/24h Power consumption |
1.1kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : Digital Data display Temperature display |
Digital Data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : EBM Condenser fans |
EBM |
|
Exterior Material : PE Exterior Material |
PE |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter18mm) Balance hole |
1(Diameter18mm) |
|
Door type : top open Door type |
top open |
|
Net weight / gross weight : 21/32kg Net weight / gross weight |
21/32kg |
|
External dimensions : 780*410*515mm External dimensions |
780*410*515mm |
|
Internal dimensions : 327*220*305mm Internal dimensions |
327*220*305mm |
|
Package size : 860x490x680mm Package size |
860x490x680mm |
