Labotemp High Speed Benchtop Centrifuge LLC-103 is a heavy-duty laboratory centrifuge engineered for intensive sample processing in hospitals, blood banks and research facilities. Delivering speeds up to 16,500 rpm and a maximum RCF of 23,120 ×g, this high speed centrifuge ensures rapid and efficient separation for centrifuge blood applications, PRP centrifuge procedures, hematocrit testing and advanced molecular analysis. The reinforced steel structure and stainless steel chamber enhance durability and resistance to laboratory reagents.

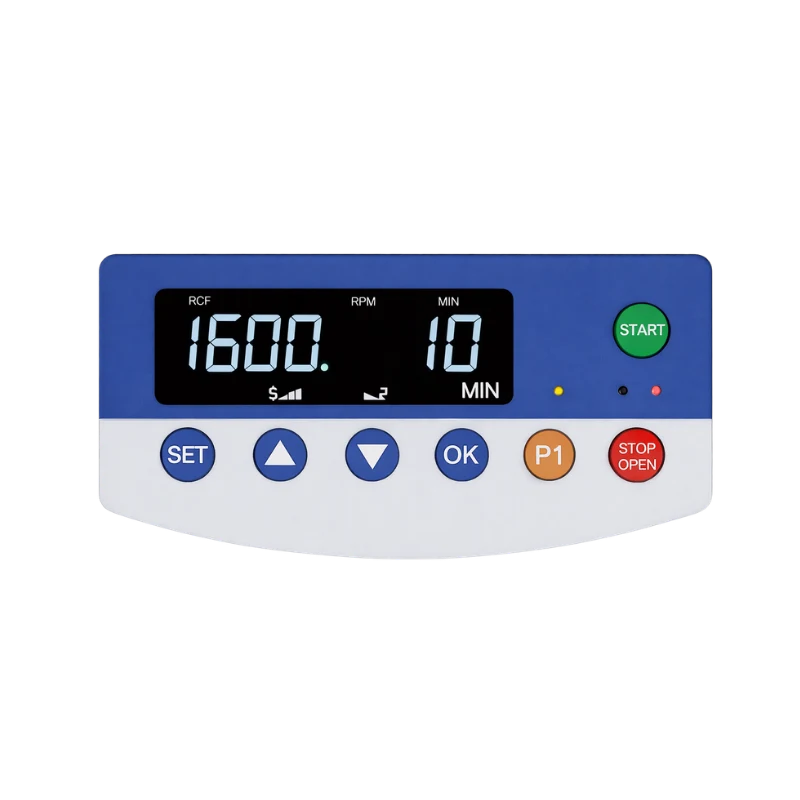

Powered by a frequency converter motor, this benchtop centrifuge provides stable speed control with smooth acceleration and braking. The digital LCD interface enables real-time RPM/RCF monitoring, programmable runs and precise timing control for repeatable laboratory workflows. Integrated safety systems including automatic lid lock, imbalance detection and rotor recognition ensure secure centrifugation. CE certified and compliant with EN standards, this tabletop centrifuge is a reliable clinical centrifuge and medical centrifuge solution for high-volume laboratory environments.
Why choose Labotemp High Speed Benchtop Centrifuge LLC-103?
✓ High Throughput Capacity: 4×100 ml rotor supports larger sample processing.
✓ Stable Speed Accuracy: Up to 23,120 ×g with controlled acceleration and braking.
✓ Enhanced Safety Compliance: CE certified with advanced protection systems.
| General Specifications | |
|
Maximum Capacity : 4 × 100 mL Maximum Capacity |
4 × 100 mL |
|
Maximum Speed : 16,500 rpm Maximum Speed |
16,500 rpm |
|
Maximum RCF : 23,120 × g Maximum RCF |
23,120 × g |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Control System : Microprocessor Control Control System |
Microprocessor Control |
|
Display : LCD Display Display |
LCD Display |
|
Timer Range : 0–99 min, Adjustable Timer Range |
0–99 min, Adjustable |
|
Acceleration / Deceleration : 0–10 Levels Acceleration / Deceleration |
0–10 Levels |
|
Noise Level : ≤58 dB(A) Noise Level |
≤58 dB(A) |
| Electrical & Construction | |
|
Voltage : 220 V, 50 Hz AC Voltage |
220 V, 50 Hz AC |
|
Current : 5 A Current |
5 A |
|
Power : 600 W Power |
600 W |
|
Motor Type : Frequency-Conversion Motor Motor Type |
Frequency-Conversion Motor |
|
Chamber Material : 304 Stainless Steel Chamber Material |
304 Stainless Steel |
|
Body Material : Powder-Coated Steel Body Material |
Powder-Coated Steel |
|
Rotor Material : Aluminum Alloy Rotor Material |
Aluminum Alloy |
| Physical Dimensions | |
|
Dimensions (L × W × H) : 470 × 345 × 295 mm Dimensions (L × W × H) |
470 × 345 × 295 mm |
|
Package Size(L × W × H) : 600 × 480 × 510 mm Package Size(L × W × H) |
600 × 480 × 510 mm |
|
Weight Without Rotor : 28 kg Weight Without Rotor |
28 kg |
|
Gross Weight : 45 kg Gross Weight |
45 kg |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Angle Rotor with Adapter | 12 × 1.5/2.2 ml; Adapter: 12 × 0.5/0.2 ml | 16500 r/min | 19175 × g | PP / PC Tubes |
| 2 | Angle Rotor with Adapter | 12 × 5 ml; Adapter: 12 × 1.5 ml | 16500 r/min | 19480 × g | PP / PC Tubes |
| 3 | Angle Rotor with Adapter | 12 × 10 ml; Adapter: 12 × 5 ml | 12000 r/min | 13156 × g | PP / PC Tubes |
| 4 | Angle Rotor with Adapter | 24 × 1.5/2.2 ml; Adapter: 24 × 0.5/0.2 ml | 14000 r/min | 17530 × g | PP / PC Tubes |
| 5 | Angle Rotor with Adapter | 36 × 1.5/2.2 ml; Adapter: 36 × 0.5/0.2 ml | 13000 r/min | 15400 × g | PP / PC Tubes |
| 6 | Angle Rotor | 12 × 8 × 0.2 ml | 15000 r/min | 23120 × g | PCR 8-tube strips |
| 7 | Angle Rotor with Adapter | 10 × 15 ml; Adapter: 10 × 10 ml / 5 ml | 11000 r/min | 14745 × g | PP / PC Tubes |
| 8 | Angle Rotor with Adapter | 6 × 50 ml; Adapter: 6 × 15 ml / 10 ml / 1.5 ml | 11000 r/min | 12175 × g | PP / PC Tubes |
| 9 | Angle Rotor with Adapter | 4 × 10/100 ml; Adapter: 4 × 50 ml / 15/10 ml / 5/1.5 ml | 10000 r/min | 10975 × g | PP / PC Tubes |
Weight Without Rotor: 15 kg
Timer Range: 1–99 min 59 sec, Adjustable
Speed Accuracy: ±10 rpm
Rotor Identification: RFID Rotor Identification
Weight Without Rotor: 15 kg
Timer Range: 1–99 min 59 sec, Adjustable
Speed Accuracy: ±10 rpm
Power Supply: AC 220 V, 50 Hz
Weight Without Rotor: 28 kg
Voltage: 220 V, 50 Hz AC
Timer Range: 0–99 min, Adjustable
Speed Accuracy: ±10 rpm
Weight Without Rotor: 30 kg
Voltage: AC 220 V, 50 Hz
Timer Range: 0–99 min 59 sec, Adjustable
Speed Accuracy: ±10 rpm
Voltage: 220 V AC
Timer Range: 0–99 min 59 sec, Adjustable
Speed Accuracy: ±10 rpm
Rotor Material: Aluminum Alloy
Voltage: AC 220 V/50 Hz
Timer Range: 0–99 minutes
Speed Accuracy: ±10 rpm
Rotor Material: Aluminum Alloy
Weight (without rotor): 50 kg
Voltage: AC 220 V
Timer Range: 0 – 99 min 59 sec adjustable
Speed Accuracy: ±10 rpm
Weight (without rotor): 18 kg
Voltage: 220V AC, 50 Hz
Timer Range: 0 – 99 min 59 sec
Speed Accuracy: ±10 rpm
Weight (without rotor): 18 kg
Voltage: AC 220 V
Timer Range: 0 – 99 minutes adjustable
Speed Accuracy: ±10 rpm
Voltage: AC 220V
Time Range: 0 – 99 minutes adjustable
Speed Accuracy: ±10 rpm
Power: 60 W
Tube Capacity Range: 2 ml – 100 ml
Timer Range: 1 – 99 minutes
Speed Range: 0 – 5000 rpm (adjustable)
Speed Accuracy: ±10 rpm
Time Range: 1–99 min
Technical Parameters:
Speed Precision: ±20 rpm
Power Supply: AC110–220 V, 50/60 Hz
Weight (without rotor): 176 kg
Voltage: AC 220V
Time Range: 1 – 99 min 59 sec adjustable
Speed Accuracy: ±10 rpm
Weight: 135 kg
Voltage: AC 220V
Time Range: 1 – 99 min 59 sec adjustable
Speed Accuracy: ±10 rpm
Weight (without rotor): 135 kg
Voltage: AC 220V
Program Memory: 30 programs
Power: 1050 W
Weight: 22 kg
Voltage: AC 220V 50Hz
Speed Accuracy: ±10 r/min
Noise Level: ≤55 dB (A)
Timer Range: 1 s – 99 min 59 s
Speed Accuracy: ±10 rpm
Shipping Dimensions (W × D × H): 565 × 410 × 340 mm
Safety Features: Door lock, overspeed protection, imbalance protection, self-diagnostic error alarm
Timer Range: 1 – 99 min 59 sec adjustable
Speed Range: 0 – 16500 rpm adjustable
Speed Accuracy: ±10 r/min
RCF Range: 0 – 19480 × g adjustable
Time Range: 1 – 99 minutes (adjustable)
Speed Range: 500 – 12000 rpm (adjustable)
Speed Accuracy: ±20 rpm
RCF Range: 0 – 9660 × g (adjustable)
Time Range: 1 – 99 minutes (adjustable)
Speed Range: 0 – 4000 rpm (adjustable)
Speed Accuracy: ±10 rpm
RCF Range: 0 – 810 × g (adjustable)
Time Range: 1 – 99 minutes (adjustable)
Speed Range: 0 – 7000 rpm (adjustable)
Speed Accuracy: ±10 rpm
RCF Range: 0 – 3260 × g (adjustable)
Timing Range: 1–99 s / 1–99 min / dotting
Speed Range: 500–3000 rpm
Sample Handling Capacity: 2 × 96-well PCR plates / enzyme-label plates
Safety & Construction:
Weight: 6 kg
Speed Range: 500–15,000 rpm
Speed Increment: 100 rpm
Speed Accuracy: ±20 rpm
Time Range: 0 – 99 minutes
Speed Range: 0 – 3500 rpm
RCF Range: 0 – 1328 × g
Power Supply: AC 220V, 50 Hz, 5 A, 60 W
Time Range: 0 – 99 minutes
Speed Range: 0 – 1200 rpm
RCF Range: 0 – 241 × g
Power Supply: AC 220V, 50 Hz, 5 A, 60 W
Speed Range: 0 – 4500 rpm
RCF Range: 0 – 2000 × g
Power Supply: AC 220V, 50 Hz, 5 A, 200 W
Packaging Information:
Time Range: 1 – 99 minutes
Temperature Control Range: -20°C to +40°C
Temperature Control Accuracy: ±1°C
Speed Range: 0 – 6000 rpm
Time Range: 1 – 99 minutes
Speed Range: 0 – 6000 rpm
Speed Accuracy: ±10 rpm
RCF Range: 0 – 4588 × g
Time Range: 0 – 99 minutes 59 seconds
Temperature Range: +5°C to 80°C
Speed Range: 0 – 2000 rpm
Speed Accuracy: ±10 rpm
Timer Range: 0 – 99 min
Speed Control: Timing, constant speed, and stop alarm
Safety Protection: Automatic stop on door opening and imbalance protection
Rotor Type: Swing Rotor
