Labotemp Blood Centrifuge Machine LLC-202 is a high-capacity floor standing centrifuge designed for reliable blood component separation in hospitals, blood banks, and clinical laboratories. This advanced centrifuge machine operates at speeds up to 6000 rpm with a maximum RCF of 6080 × g, ensuring consistent separation of plasma, serum, and other biological samples. With a large processing capacity of 4 × 1000 ml and support for up to 168 blood tubes in a single cycle, this laboratory centrifuge machine is well suited for high-throughput diagnostic labs, transfusion facilities, and research environments handling large sample volumes.
The system features a durable design with a precision frequency-conversion motor and TFT touch screen control for accurate adjustment of speed, time, and acceleration parameters. Multiple rotor options and adapters support a wide range of blood collection tubes, enabling the blood bank centrifuge to adapt to diverse laboratory workflows. Stable low-noise operation (≤58 dB), real-time monitoring, and integrated safety functions such as imbalance detection and controlled braking help ensure safe, efficient, and repeatable centrifugation in routine clinical testing.
Why Choose Labotemp Blood Centrifuge Machine LLC-202
✓ High Sample Throughput: Processes up to 168 blood tubes per run, ideal for busy clinical and diagnostic laboratories
✓ Trusted Centrifuge Manufacturer: Labotemp designs centrifuge systems built for precision, durability, and dependable laboratory performance
✓ Stable & Safe Operation: Advanced control system with imbalance protection ensures reliable daily laboratory use
| General Specifications | |
|
Maximum Capacity : 4 × 1000 ml Maximum Capacity |
4 × 1000 ml |
|
Maximum Speed : 6000 rpm Maximum Speed |
6000 rpm |
|
Maximum RCF : 6080 × g Maximum RCF |
6080 × g |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Acceleration / Deceleration : 1 – 10 Acceleration / Deceleration |
1 – 10 |
|
Time Range : 1 – 99 min 59 sec adjustable Time Range |
1 – 99 min 59 sec adjustable |
|
Display : TFT Touch Screen Display |
TFT Touch Screen |
|
RTC Function : Yes RTC Function |
Yes |
|
Noise Level : ≤58 dB(A) Noise Level |
≤58 dB(A) |
| Electrical & Construction | |
|
Voltage : AC 220V Voltage |
AC 220V |
|
Frequency : 50 Hz Frequency |
50 Hz |
|
Current : 15 A Current |
15 A |
|
Power : 1050 W Power |
1050 W |
|
Motor Type : Frequency converter motor Motor Type |
Frequency converter motor |
| Packaging Information | |
|
Dimensions (L × W × H) : 720 × 620 × 890 mm Dimensions (L × W × H) |
720 × 620 × 890 mm |
|
Weight : 135 kg Weight |
135 kg |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|

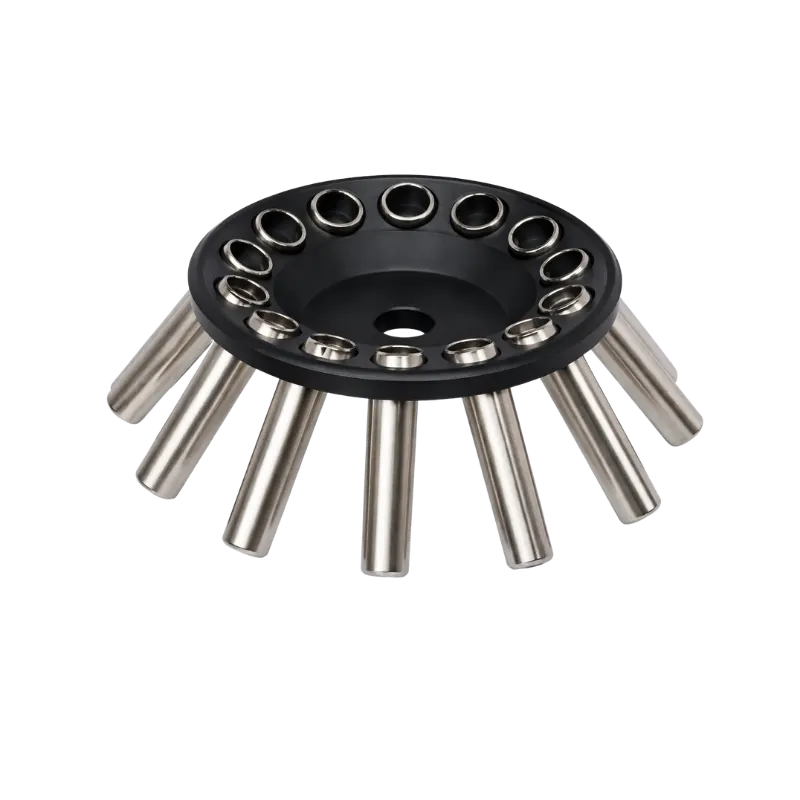

| 1 | Angle Rotor | 12 × 15/10/5 ml | 6000 r/min | 6080 × g | PP/PC tube |
| Adapter | 12 × 2 ml | — | — | PP/PC tube | |

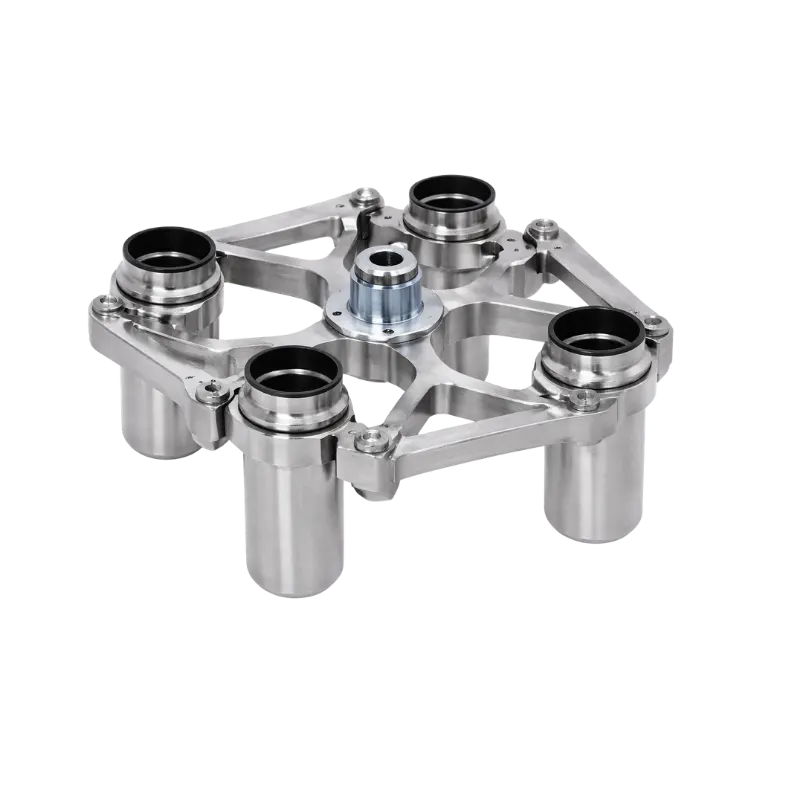

| 2 | Swing Rotor (Steel frame) | 4 × 100 ml / 4 × 50 ml | 5000 r/min | 4752 × g | PP/PC tube |
| Swing Frame | 4 × 100 ml | 5000 r/min | 4752 × g | PP/PC tube | |
| Swing Frame | 4 × 50 ml | 5000 r/min | 4752 × g | PP/PC tube | |
| Adapter | 4 × 15/10 ml | — | — | PP/PC tube | |
| 3 | Swing Rotor (Steel rotor) | 4 × 2×100 ml / 4 × 2×50 ml | 4000 r/min | 3041 × g | PP/PC tube |
| Swing Frame | 4 × 2×100 ml | 4000 r/min | 3041 × g | PP/PC tube | |
| Adapter | 4 × 25×15/10 ml | — | — | PP/PC tube | |
| Adapter | 4 × 2×50 ml | — | — | PP/PC tube | |
| Adapter | 4 × 8×15/10 ml | — | — | PP/PC tube | |
| Rack | 4 × 12×5/2 ml | 4000 r/min | 3041 × g | Vacuum blood collection tube | |
| 4 | Swing Bucket | 72 × 5/2 ml | 4000 r/min | 2773 × g | Vacuum blood collection tubes |

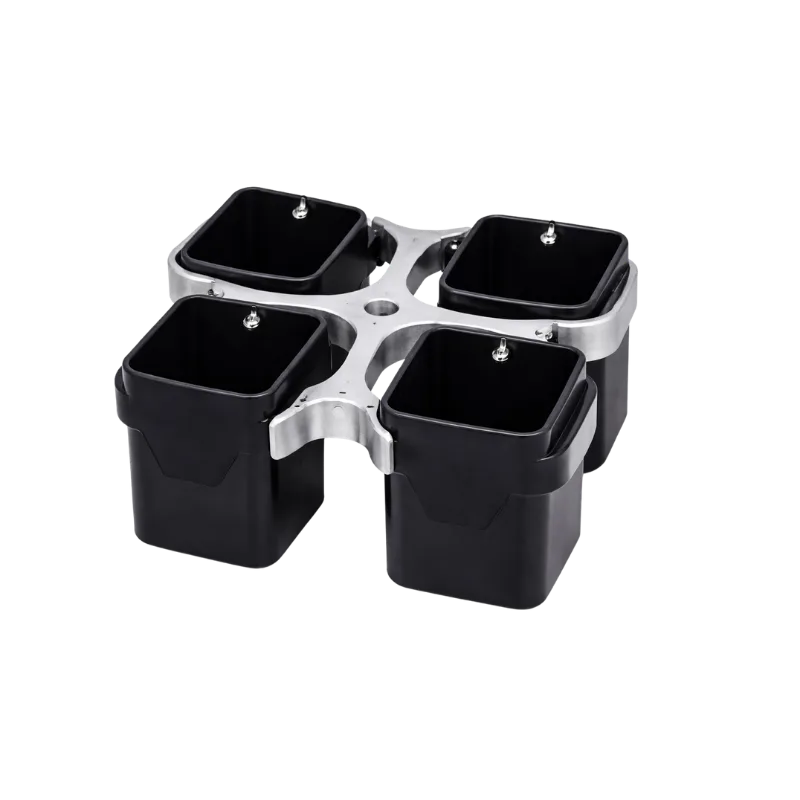

| 5 | Swing Bucket | 4 × 600 ml | 4000 r/min | 3354 × g | Square cup with wind cover |
| Adapter | 4 × 25×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 4 × 12×15/10 ml | — | — | PP/PC tube | |
| Adapter | 4 × 5×50 ml | — | — | PP/PC tube | |
| Adapter | 4 × 4×100 ml | — | — | PP/PC tube | |
| 6 | Swing Bucket | 6 × 600 ml | 4000 r/min | 3400 × g | Square cup with wind cover |
| Adapter | 6 × 25×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 6 × 12×15/10 ml | — | — | PP/PC tube | |
| Adapter | 6 × 5×50 ml | — | — | PP/PC tube | |
| Adapter | 6 × 4×100 ml | — | — | PP/PC tube | |
| 7 | Swing Bucket | 4 × 500 ml | 4000 r/min | 3354 × g | Round cup with wind cover |
| Adapter | 4 × 17×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 4 × 8×15/10 ml | — | — | PP/PC tube | |
| Adapter | 4 × 3×50 ml | — | — | PP/PC tube | |
| Adapter | 4 × 100 ml | — | — | PP/PC tube | |
| 8 | Swing Bucket | 6 × 500 ml | 4000 r/min | 3400 × g | Round cup with wind cover |
| Adapter | 6 × 17×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 6 × 8×15/10 ml | — | — | PP/PC tube | |
| Adapter | 6 × 3×50 ml | — | — | PP/PC tube | |
| Adapter | 6 × 100 ml | — | — | PP/PC tube | |
| 9 | Swing Bucket | 4 × 800 ml | 4000 r/min | 3443 × g | Round cup with wind cover |
| Adapter | 4 × 30×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 4 × 16×15/10 ml | — | — | PP/PC tube | |
| Adapter | 4 × 6×50 ml | — | — | PP/PC tube | |
| Adapter | 4 × 4×100 ml | — | — | PP/PC tube | |
| 10 | Swing Bucket | 4 × 750 ml | 4000 r/min | 3443 × g | Round cup with wind cover |
| Adapter | 4 × 26×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 4 × 13×15/10 ml | — | — | PP/PC tube | |
| Adapter | 4 × 5×50 ml | — | — | PP/PC tube | |
| Adapter | 4 × 3×100 ml | — | — | PP/PC tube | |
| 11 | Swing Bucket | 4 × 1000 ml | 4000 r/min | 3578 × g | Oval cup with wind cover |
| Adapter | 4 × 42×5/2 ml | — | — | Vacuum blood collection tubes | |
| Adapter | 4 × 23×15/10 ml | — | — | PP/PC tube | |
| Adapter | 4 × 7×50 ml | — | — | PP/PC tube | |
| Adapter | 4 × 4×100 ml | — | — | PP/PC tube | |
| 12 | Microplate Rotor | 4 × 2×96 hole | 4200 r/min | 3057 × g | Square cup |
| Adapter | 4 × 32×1.5 ml | — | — | PP/PC tube |
