Labotemp High Speed Benchtop Centrifuge LLC-102 manufactured by trusted centrifuge manufacturer is a precision-engineered laboratory centrifuge designed for intensive clinical and research applications. Delivering speeds up to 16,500 rpm and a maximum RCF of 19,480 ×g, this high speed centrifuge ensures efficient separation of blood samples, PRP, serum, plasma and molecular biology samples. Its reinforced steel body and stainless steel chamber offer durability and chemical resistance, making it suitable as a clinical centrifuge, blood centrifuge machine or benchtop mini centrifuge for routine lab operations.

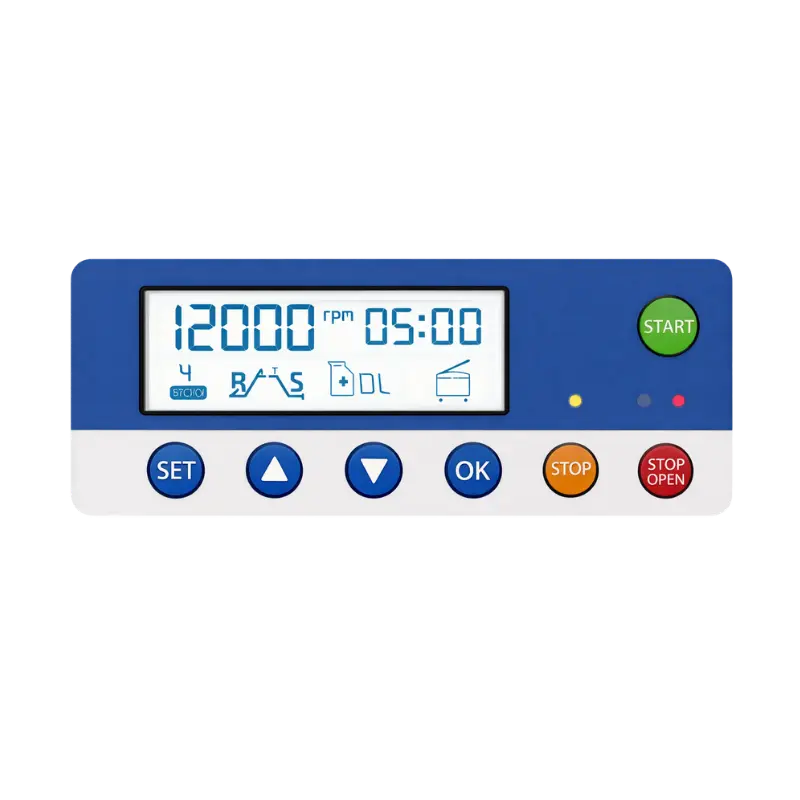

Equipped with intelligent microprocessor control, the system provides clear LCD monitoring with real-time RPM/RCF display and programmable memory for consistent results. Multiple acceleration and braking profiles support controlled sample handling, while automatic lid locking, rotor recognition and imbalance shutdown ensure secure operation. Built to meet CE and EN safety standards, ensuring safe, compliant and reliable laboratory operation.
Why choose Labotemp High Speed Benchtop Centrifuge LLC-102?
✓ High Performance: High speed operation ensures fast, accurate and stable sample separation.
✓ Smart Interface: Digital display with programmable memory for consistent results.
✓ Durable Construction: Robust metal body with stainless steel chamber for long service life.
| General Specifications | |
|
Maximum Capacity : 12 × 5 ml Maximum Capacity |
12 × 5 ml |
|
Maximum Speed : 16500 rpm Maximum Speed |
16500 rpm |
|
Maximum RCF : 19480 × g Maximum RCF |
19480 × g |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Control System : Microprocessor control Control System |
Microprocessor control |
|
Display : LCD display Display |
LCD display |
|
Timer Range : 1 – 99 min 59 sec adjustable Timer Range |
1 – 99 min 59 sec adjustable |
|
Acceleration / Deceleration : 1 – 10 levels Acceleration / Deceleration |
1 – 10 levels |
|
Max Acceleration Time : 15 sec Max Acceleration Time |
15 sec |
|
Max Braking Time : 15 sec Max Braking Time |
15 sec |
|
Noise Level : ≤55 dB(A) Noise Level |
≤55 dB(A) |
| Electrical & Construction | |
|
Power Supply : AC 220V, 50 Hz Power Supply |
AC 220V, 50 Hz |
|
Power : 370 W Power |
370 W |
|
Current : 10 A Current |
10 A |
|
Motor Type : Frequency conversion AC motor Motor Type |
Frequency conversion AC motor |
|
Dimensions (L × W × H) : 340 × 260 × 220 mm Dimensions (L × W × H) |
340 × 260 × 220 mm |
|
Weight (without rotor) : 15 kg Weight (without rotor) |
15 kg |
| Packaging Information | |
|
Gross Weight : 23 kg Gross Weight |
23 kg |
|
Package Size : 350 × 380 × 450 mm Package Size |
350 × 380 × 450 mm |

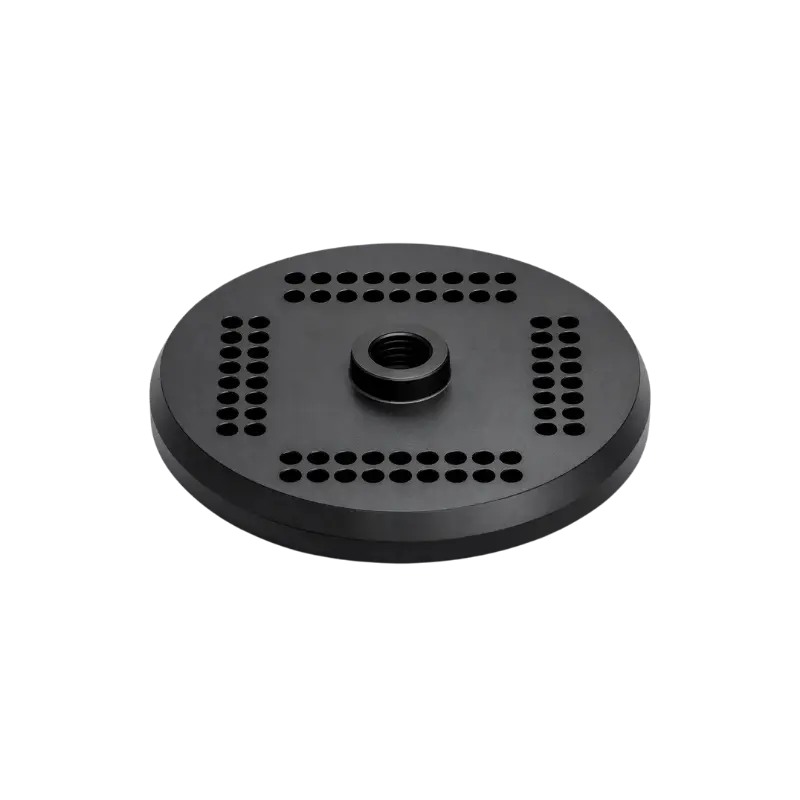

| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Angle Rotor with Adapter | 12 × 1.5/2.2 ml; Adapter: 12 × 0.5/0.2 ml | 16500 r/min | 19175 × g | EP / PP Tubes |
| 2 | Angle Rotor with Adapter | 12 × 5 ml; Adapter: 12 × 1.5 ml | 16500 r/min | 19480 × g | EP / PP Tubes |
| 3 | Angle Rotor | 8 × 8 × 0.2 ml | 13500 r/min | 16480 × g | PCR 8 Strip Tubes |
| 4 | Angle Rotor with Adapter | 24 × 1.5–2.2 ml; Adapter: 24 × 0.5/0.2 ml | 14000 r/min | 17530 × g | EP / PP Tubes |
