Tube Furnace 1700°C | 350 Mm Heating Zone FMT-16

Tube Furnace 1700°C | 350 Mm Heating Zone FMT-16

Name: Tube Furnace 1700°C | 350 Mm Heating Zone FMT-16
Brand: Labotemp
SKU: FMT-16
Price: 6772.00 USD
Availability: InStock
Rating: 4.8 (839 reviews)

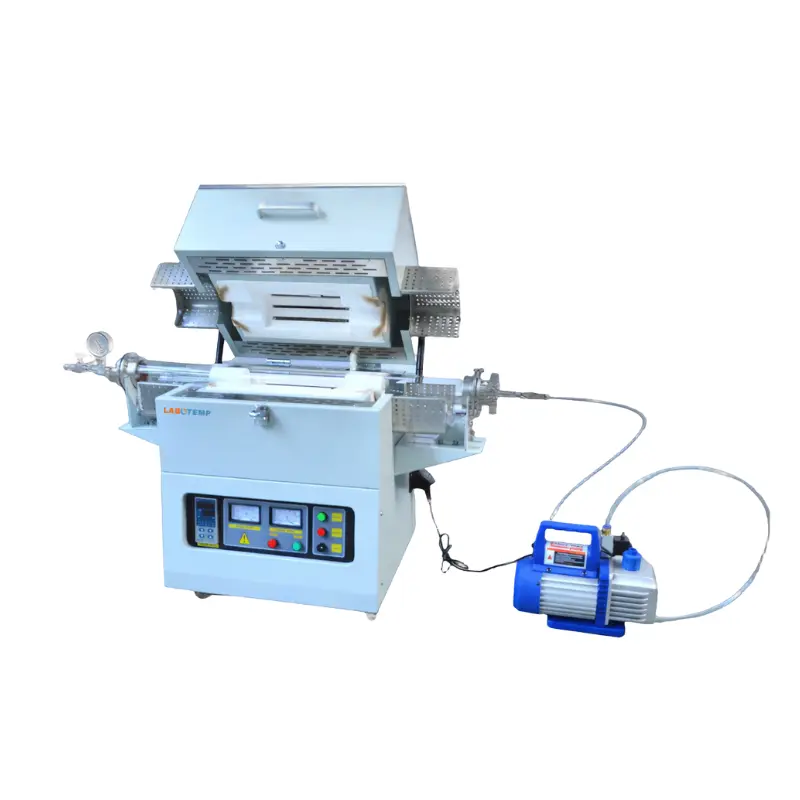

Labotemp High-Temperature Corundum Tube Furnace FMT-16 is a precision laboratory tube furnace rated to 1700°C (working ≤1550°C). It features a ∮80 mm corundum tube, 350 mm heating zone, 1200 mm total tube length and an 80×350 mm chamber. MoSi₂ heating rods, B-type thermocouple, PID control and 30-segment time–temperature programming deliver ±1°C accuracy and ±5°C uniformity with 0–20°C/min ramp.

Manufactured by an experienced furnace manufacturer and supplied via authorised furnace suppliers, FMT-16 suits high-temperature material synthesis, sintering, annealing, calcination, crystal growth, powder metallurgy, ceramic processing and semiconductor diffusion. The horizontal tubular design supports controlled-atmosphere and vacuum tube-furnace configurations; optional touchscreen, PC software and safety accessories are available.

Why choose Labotemp Tube Furnace FMT-16?

✓ Ultra-High Temperature: Reliable operation to 1700°C.
✓ Precision Control: PID regulation with B-type thermocouple and repeatable profiles.
✓ Large-Sample Capacity: ∮80 mm tube and 1200 mm length for bigger loads.

$6772

Datasheet

Maximum Temperature : 1700°C Maximum Temperature	1700°C
Standard Heating Zone Length (mm) : 350 Standard Heating Zone Length (mm)	350
Chamber Size (mm) : 80×350 Chamber Size (mm)	80×350
Standard Tube Diameter (mm) : ∮80 Standard Tube Diameter (mm)	∮80
Total Length of Furnace Tube (mm) : 1200 Total Length of Furnace Tube (mm)	1200
External Size (mm) : 724×590×807 External Size (mm)	724×590×807
Working Temperature (℃) : ≤1550 Working Temperature (℃)	≤1550
Heating Rate : 0 ~ 20℃/min Heating Rate	0 ~ 20℃/min
Temperature Accuracy : ±1 Temperature Accuracy	±1
Temperature Uniformity : ±5 Temperature Uniformity	±5
Furnace Tube Material : Corundum Tube Furnace Tube Material	Corundum Tube
Heating Element : MoSi₂ Heating Rod Heating Element	MoSi₂ Heating Rod
Thermocouple Type : B Type Thermocouple Type	B Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Package Dimensions : 870×750×1220 mm Package Dimensions	870×750×1220 mm
Accessories Package Size : 1200x160x180 mm Accessories Package Size	1200x160x180 mm
Net Weight : 150kg Net Weight	150kg
Gross Weight : 180kg Gross Weight	180kg
Accessories Weight : 11Kg Accessories Weight	11Kg

±5°C uniformity ➤ ±5°C uniformity
1700°C maximum operating temperature ➤ 1700°C maximum operating temperature
PID automatic control via current limiting phase angle fired resistor ➤ PID automatic control via current limiting phase angle fired resistor
30 segments “time temperature curve” can be set arbitrarily ➤ 30 segments “time temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research ➤ Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
