Tube Furnace 1400°C | 205 mm Heating Zone FMT-07

Tube Furnace 1400°C | 205 mm Heating Zone FMT-07

Name: Tube Furnace 1400°C | 205 mm Heating Zone FMT-07
Brand: Labotemp
SKU: FMT-07
Price: 4653.00 USD
Availability: InStock
Rating: 4.8 (909 reviews)

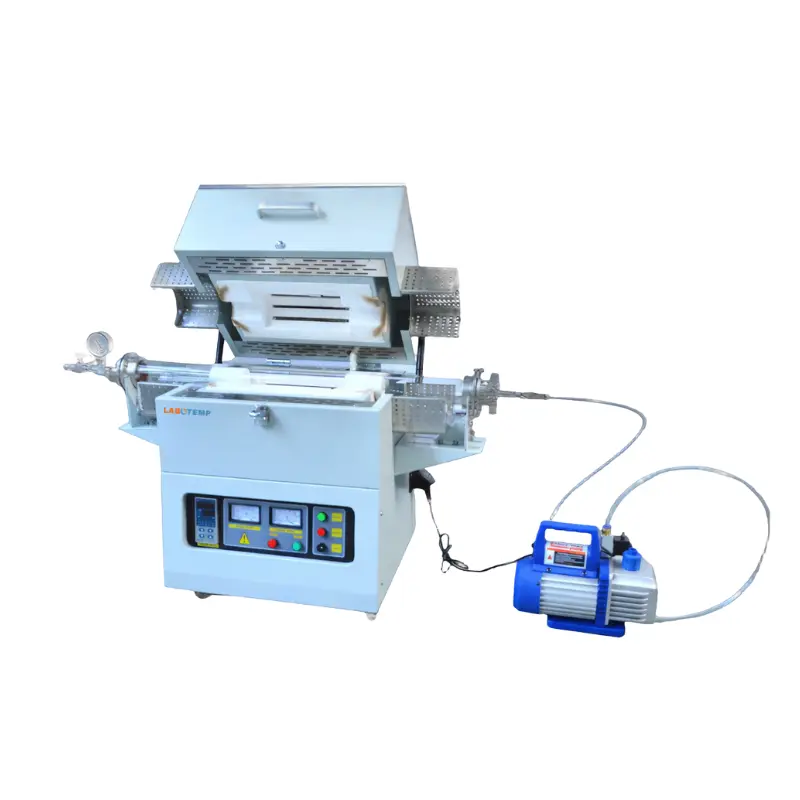

Labotemp Horizontal Tube Furnace FMT-07 is a manufacturer-grade horizontal tube furnace engineered for high-volume sintering, crystal growth and high-temperature R&D. Rated to 1400°C (working ≤1300°C) with a 205 mm single-zone heating length and ∮40 mm corundum tube, it combines S-type thermocouple accuracy (±1°C) with SiC heating rods and an alumina-fiber chamber to deliver robust, repeatable results for laboratories, universities and industrial furnace suppliers.

Ideal as a lab furnace, laboratory tube furnace or tubular furnace for sintering, annealing, powder metallurgy, semiconductor diffusion and ceramic processing. Supplier-ready and production-proven, it supports vacuum tube furnace, high-temperature tube furnace and tubular furnace applications. PID 30-segment programming, optional touchscreen/PC control and dependable manufacturer support make it a reliable choice for professional furnace operations.

Why choose Labotemp Tube Furnace FMT-07?
✓ Precision Control: PID regulation with 30-segment programmable profiles.
✓ High-Temperature Capacity: 1400°C maximum for advanced ceramic and crystal processing.
✓ Precision control: PID regulation, B-type thermocouple and 30-seg profiling.

$4653

Datasheet

Maximum Temperature : 1400°C Maximum Temperature	1400°C
Standard Heating Zone Length (mm) : 205 Standard Heating Zone Length (mm)	205
Chamber Size (mm) : 40*205 Chamber Size (mm)	40*205
Standard Tube Diameter (mm) : ∮40 Standard Tube Diameter (mm)	∮40
Total Length of Furnace Tube (mm) : 800 Total Length of Furnace Tube (mm)	800
External Size : 630×590×767 mm External Size	630×590×767 mm
Working Temperature (℃) : ≤1300 Working Temperature (℃)	≤1300
Temperature Accuracy : ±1 Temperature Accuracy	±1
Furnace Tube Material : Corundum Tube Furnace Tube Material	Corundum Tube
Thermocouple Type : S Type Thermocouple Type	S Type
Temperature Uniformity : ±5 Temperature Uniformity	±5
Heating Element : SiC Heating Rod Heating Element	SiC Heating Rod
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Net Weight : 80kg Net Weight	80kg
Gross Weight : 108kg Gross Weight	108kg
Accessories Weight : 10Kg Accessories Weight	10Kg
Accessories Package Size : 1450150165 Accessories Package Size	1450150165
Product Package Size : 7607701130 Product Package Size	7607701130

High Volume Sintering ➤ High Volume Sintering
1400°C maximum operating temperature ➤ 1400°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments “time–temperature curve” can be set arbitrarily ➤ 30 segments “time–temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for high-temperature material synthesis, sintering, annealing, crystal growth, powder metallurgy, ceramic processing, semiconductor diffusion, coating development, and heat treatment experiments in laboratories, universities, and industrial R&D centers ➤ Used for high-temperature material synthesis, sintering, annealing, crystal growth, powder metallurgy, ceramic processing, semiconductor diffusion, coating development, and heat treatment experiments in laboratories, universities, and industrial R&D centers

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
