Tube Furnace 1700°C | 205 Mm Heating Zone FMT-13

Tube Furnace 1700°C | 205 Mm Heating Zone FMT-13

Name: Tube Furnace 1700°C | 205 Mm Heating Zone FMT-13
Brand: Labotemp
SKU: FMT-13
Price: 5870.00 USD
Availability: InStock
Rating: 4.8 (756 reviews)

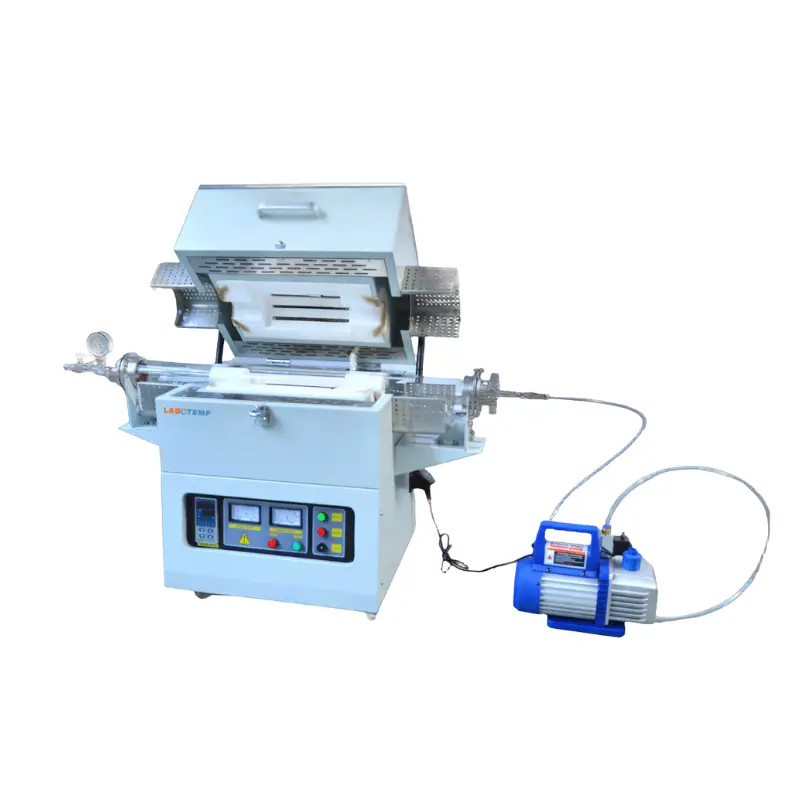

Labotemp High-Temperature Tube Furnace FMT-13 is a precision laboratory tube furnace for extreme thermal processing to 1700°C (working ≤1550°C). It features a ∮40 mm corundum tube, 205 mm heating zone and 800 mm total tube length. MoSi₂ heating rods with PID control and 30-segment time–temperature programming deliver ±1°C accuracy and ±5°C uniformity. An S-type thermocouple and alumina ceramic-fiber chamber ensure stable, efficient operation in a compact 630×590×767 mm footprint.

Manufactured by a professional furnace manufacturer and supplied via authorised furnace suppliers, FMT-13 suits high-temperature synthesis, sintering, annealing, calcination and crystal growth in ceramics, metals and semiconductors. The horizontal tubular design supports controlled-atmosphere and vacuum configurations with optional touchscreen and PC software—making it a reliable lab furnace and high-temperature tube furnace for research and production.

Why choose Labotemp Tube Furnace FMT-13?

✓ Ultra-High Temperature: MoSi₂ rods for reliable 1700°C performance.
✓ Precision Control: PID regulation with repeatable thermal profiles.
✓ High-Temperature Durability: Corundum tube and MoSi₂ heating elements.

$5870

Datasheet

Maximum Temperature : 1700°C Maximum Temperature	1700°C
Standard Heating Zone Length (mm) : 205 Standard Heating Zone Length (mm)	205
Chamber Size (mm) : 40*205 Chamber Size (mm)	40*205
Standard Tube Diameter (mm) : ∮40 Standard Tube Diameter (mm)	∮40
Total Length of Furnace Tube (mm) : 800 Total Length of Furnace Tube (mm)	800
External Size (mm) : 630×590×767 External Size (mm)	630×590×767
Working Temperature (℃) : ≤1550 Working Temperature (℃)	≤1550
Heating Rate : 0 ~ 20℃/min Heating Rate	0 ~ 20℃/min
Temperature Accuracy : ±1 Temperature Accuracy	±1
Temperature Uniformity : ±5 Temperature Uniformity	±5
Furnace Tube Material : Corundum Tube Furnace Tube Material	Corundum Tube
Heating Element : MoSi₂ Heating Rod Heating Element	MoSi₂ Heating Rod
Thermocouple Type : B Type Thermocouple Type	B Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Package Dimensions : 870×750×1220 Package Dimensions	870×750×1220
Net Weight : 130kg Net Weight	130kg
Gross Weight : 165kg Gross Weight	165kg

1700°C Temperature ➤ 1700°C Temperature
1700°C maximum operating temperature ➤ 1700°C maximum operating temperature
PID automatic control via current limiting phase angle fired resistor ➤ PID automatic control via current limiting phase angle fired resistor
30 segments “time temperature curve” can be set arbitrarily ➤ 30 segments “time temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research ➤ Used for high-temperature material synthesis, sintering, annealing, calcination, and crystal growth in ceramics, metals, semiconductors, and advanced material research

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
