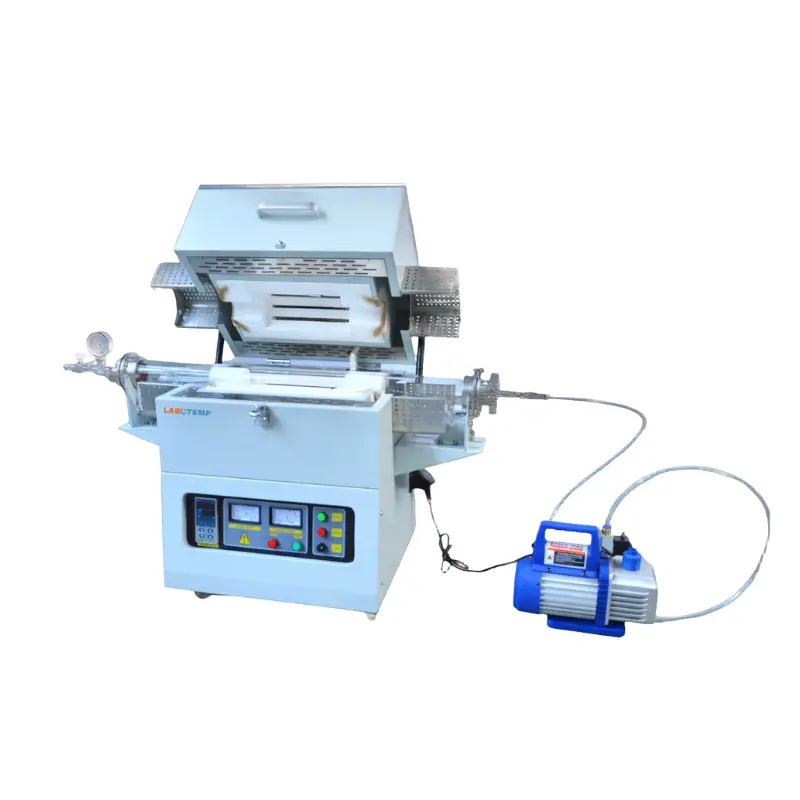

Tube Furnace 1400°C | 350 Mm Heating Zone FMT-10

Tube Furnace 1400°C | 350 Mm Heating Zone FMT-10

Name: Tube Furnace 1400°C | 350 Mm Heating Zone FMT-10
Brand: Labotemp
SKU: FMT-10
Price: 5161.00 USD
Availability: InStock
Rating: 4.9 (752 reviews)

Labotemp High-Temperature Tube Furnace FMT-10 is a precision laboratory tube furnace engineered for advanced thermal processing up to 1400°C (working ≤1300°C). It features a ∮80 mm corundum tube, 350 mm single heating zone and 1000 mm tube length. Powered by SiC heating rods with PID automatic control and 30-segment time–temperature programming, it delivers ±1°C accuracy and ±5°C uniformity.

Manufactured by a professional furnace manufacturer and supplied through authorised furnace suppliers, the FMT-10 tubular furnace is ideal for high-temperature material synthesis, sintering, annealing, crystal growth, powder metallurgy, ceramic processing, semiconductor diffusion, coating development and laboratory heat treatment. The horizontal tubular furnace design supports controlled-atmosphere and vacuum tube furnace configurations with optional touchscreen and PC software, making it a reliable lab furnace and high-temperature tube furnace for research and production.

Why choose Labotemp Tube Furnace FMT-10?

✓ Ultra-High Temperature: Reliable operation up to 1400°C
✓ Precision Control: PID regulation with repeatable thermal profiles
✓ Industrial Build: Corundum tube and SiC heating system

$5161

Datasheet

Maximum Temperature : 1400°C Maximum Temperature	1400°C
Standard Heating Zone Length (mm) : 350 Standard Heating Zone Length (mm)	350
Chamber Size (mm) : 80×350 Chamber Size (mm)	80×350
Standard Tube Diameter (mm) : ∮80 Standard Tube Diameter (mm)	∮80
Total Length of Furnace Tube (mm) : 1000 Total Length of Furnace Tube (mm)	1000
External Size (mm) : 724×590×807 External Size (mm)	724×590×807
Working Temperature (℃) : ≤1300 Working Temperature (℃)	≤1300
Temperature Accuracy : ±1 Temperature Accuracy	±1
Furnace Tube Material : Corundum Tube Furnace Tube Material	Corundum Tube
Thermocouple Type : S Type Thermocouple Type	S Type
Temperature Uniformity : ±5 Temperature Uniformity	±5
Heating Element : Sic Heating Rod Heating Element	Sic Heating Rod
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Net Weight : 95kg Net Weight	95kg
Gross Weight : 125kg Gross Weight	125kg

±1°C accuracy ➤ ±1°C accuracy
1400°C maximum operating temperature ➤ 1400°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments “time–temperature curve” can be set arbitrarily ➤ 30 segments “time–temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for high-temperature material synthesis, sintering, annealing, crystal growth, powder metallurgy, ceramic processing, semiconductor diffusion, coating development, and heat treatment experiments in laboratories ➤ Used for high-temperature material synthesis, sintering, annealing, crystal growth, powder metallurgy, ceramic processing, semiconductor diffusion, coating development, and heat treatment experiments in laboratories

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
